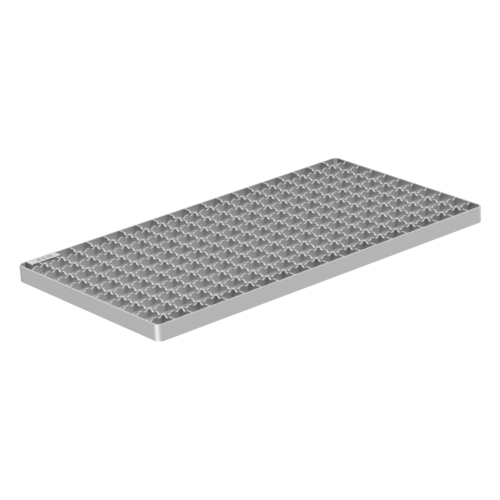

ACO mesh grating, slip-resistant

Product benefits

  • Fully electropolished
Contact
Downloads

Product information

  • Certified according to EN 1253-1
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Slip resistance R11 (DIN 51130)
  • Available for load class L 15
  • Available for all standard ACO box channel widths
  • Hygienic design is not applied for this product
Grating dimensionsLoad class

(EN 1253)		Load class

(EN 1433)		Slip-resistanceMaterialItem

number		Remember
SizeFrame height (E)Bar height (G)
[mm][mm][mm]
168 x 4992020L 15A 15Slip resistant1.4301447637
1.4404449789
168 x 3992020L 15A 15Slip resistant1.4301449798
1.4404449799
168 x 9992020L 15A 15Slip resistant1.4301449810
1.4404449811
168 x 4992030R 50A 15Slip resistant1.4301416860
1.4404416861
168 x 3992030R 50A 15Slip resistant1.4301416862
1.4404416863
168 x 9992030R 50A 15Slip resistant1.4301413153
1.4404445957
168 x 4992030R 50B 125Slip resistant1.4301449080
1.4404449790
168 x 3992030R 50B 125Slip resistant1.4301449800
1.4404449801
168 x 9992030R 50B 125Slip resistant1.4301449816
1.4404449817
168 x 4992040M 125C 250Slip resistant1.4301449081
1.4404449791
168 x 3992040M 125C 250Slip resistant1.4301449802
1.4404449803
168 x 9992040M 125C 250Slip resistant1.4301449820
1.4404449821
268 x 2982030L 15A 15Slip resistant1.4301416864
1.4404416865
268 x 4992030L 15A 15Slip resistant1.4301416866
1.4404416867
268 x 9992030L 15A 15Slip resistant1.4301413154
1.4404445959
268 x 2982030R 50A 15Slip resistant1.4301449851
1.4404449852
268 x 4992030R 50A 15Slip resistant1.4301449083
1.4404449855
268 x 2982040M 125B 125Slip resistant1.4301449853
1.4404449854
268 x 4992040M 125B 125Slip resistant1.4301449084
1.4404449856
368 x 4993030L 15A 15Slip resistant1.4301416856
1.4404416857
368 x 3983030L 15A 15Slip resistant1.4301416868
1.4404416869
368 x 5983030L 15A 15Slip resistant1.4301416870
1.4404416871
368 x 4993040M 125B 125Slip resistant1.4301449089
1.4404449895
368 x 3983040M 125B 125Slip resistant1.4301449896
1.4404449897
368 x 5983040M 125B 125Slip resistant1.4301449898
1.4404449899
468 x 4993030L 15A 15Slip resistant1.4301416872
1.4404416873
468 x 3983030L 15A 15Slip resistant1.4301416874
1.4404416875
568 x 2993030L 15Slip resistant1.4301416876
1.4404416877
568 x 4993030L 15Slip resistant1.4301413157
568 x 2993040R 50A 15Slip resistant1.4301449661
1.4404449662
768 x 3983030L 15Slip resistant1.4301416878
1.4404416879
Grating dimensionsLoad class

(EN 1253)		Load class

(EN 1433)		MaterialItem

number
SizeFrame height (E)Bar height (G)
168 x 499 mm20 mm20 mmL 15A 15Slip resistant1.4301447637
168 x 499 mm20 mm20 mmL 15A 15Slip resistant1.4404449789
168 x 399 mm20 mm20 mmL 15A 15Slip resistant1.4301449798
168 x 399 mm20 mm20 mmL 15A 15Slip resistant1.4404449799
168 x 999 mm20 mm20 mmL 15A 15Slip resistant1.4301449810
168 x 999 mm20 mm20 mmL 15A 15Slip resistant1.4404449811
168 x 499 mm20 mm30 mmR 50A 15Slip resistant1.4301416860
168 x 499 mm20 mm30 mmR 50A 15Slip resistant1.4404416861
168 x 399 mm20 mm30 mmR 50A 15Slip resistant1.4301416862
168 x 399 mm20 mm30 mmR 50A 15Slip resistant1.4404416863
168 x 999 mm20 mm30 mmR 50A 15Slip resistant1.4301413153
168 x 999 mm20 mm30 mmR 50A 15Slip resistant1.4404445957
168 x 499 mm20 mm30 mmR 50B 125Slip resistant1.4301449080
168 x 499 mm20 mm30 mmR 50B 125Slip resistant1.4404449790
168 x 399 mm20 mm30 mmR 50B 125Slip resistant1.4301449800
168 x 399 mm20 mm30 mmR 50B 125Slip resistant1.4404449801
168 x 999 mm20 mm30 mmR 50B 125Slip resistant1.4301449816
168 x 999 mm20 mm30 mmR 50B 125Slip resistant1.4404449817
168 x 499 mm20 mm40 mmM 125C 250Slip resistant1.4301449081
168 x 499 mm20 mm40 mmM 125C 250Slip resistant1.4404449791
168 x 399 mm20 mm40 mmM 125C 250Slip resistant1.4301449802
168 x 399 mm20 mm40 mmM 125C 250Slip resistant1.4404449803
168 x 999 mm20 mm40 mmM 125C 250Slip resistant1.4301449820
168 x 999 mm20 mm40 mmM 125C 250Slip resistant1.4404449821
268 x 298 mm20 mm30 mmL 15A 15Slip resistant1.4301416864
268 x 298 mm20 mm30 mmL 15A 15Slip resistant1.4404416865
268 x 499 mm20 mm30 mmL 15A 15Slip resistant1.4301416866
268 x 499 mm20 mm30 mmL 15A 15Slip resistant1.4404416867
268 x 999 mm20 mm30 mmL 15A 15Slip resistant1.4301413154
268 x 999 mm20 mm30 mmL 15A 15Slip resistant1.4404445959
268 x 298 mm20 mm30 mmR 50A 15Slip resistant1.4301449851
268 x 298 mm20 mm30 mmR 50A 15Slip resistant1.4404449852
268 x 499 mm20 mm30 mmR 50A 15Slip resistant1.4301449083
268 x 499 mm20 mm30 mmR 50A 15Slip resistant1.4404449855
268 x 298 mm20 mm40 mmM 125B 125Slip resistant1.4301449853
268 x 298 mm20 mm40 mmM 125B 125Slip resistant1.4404449854
268 x 499 mm20 mm40 mmM 125B 125Slip resistant1.4301449084
268 x 499 mm20 mm40 mmM 125B 125Slip resistant1.4404449856
368 x 499 mm30 mm30 mmL 15A 15Slip resistant1.4301416856
368 x 499 mm30 mm30 mmL 15A 15Slip resistant1.4404416857
368 x 398 mm30 mm30 mmL 15A 15Slip resistant1.4301416868
368 x 398 mm30 mm30 mmL 15A 15Slip resistant1.4404416869
368 x 598 mm30 mm30 mmL 15A 15Slip resistant1.4301416870
368 x 598 mm30 mm30 mmL 15A 15Slip resistant1.4404416871
368 x 499 mm30 mm40 mmM 125B 125Slip resistant1.4301449089
368 x 499 mm30 mm40 mmM 125B 125Slip resistant1.4404449895
368 x 398 mm30 mm40 mmM 125B 125Slip resistant1.4301449896
368 x 398 mm30 mm40 mmM 125B 125Slip resistant1.4404449897
368 x 598 mm30 mm40 mmM 125B 125Slip resistant1.4301449898
368 x 598 mm30 mm40 mmM 125B 125Slip resistant1.4404449899
468 x 499 mm30 mm30 mmL 15A 15Slip resistant1.4301416872
468 x 499 mm30 mm30 mmL 15A 15Slip resistant1.4404416873
468 x 398 mm30 mm30 mmL 15A 15Slip resistant1.4301416874
468 x 398 mm30 mm30 mmL 15A 15Slip resistant1.4404416875
568 x 299 mm30 mm30 mmL 15Slip resistant1.4301416876
568 x 299 mm30 mm30 mmL 15Slip resistant1.4404416877
568 x 499 mm30 mm30 mmL 15Slip resistant1.4301413157
568 x 299 mm30 mm40 mmR 50A 15Slip resistant1.4301449661
568 x 299 mm30 mm40 mmR 50A 15Slip resistant1.4404449662
768 x 398 mm30 mm30 mmL 15Slip resistant1.4301416878
768 x 398 mm30 mm30 mmL 15Slip resistant1.4404416879
