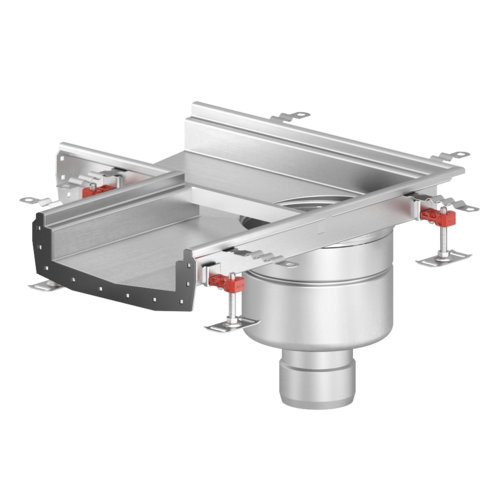

Corner unit with ACO gully 218 - fixed height

Product benefits

  • V-profile bottom design
    • Enhanced flow efficiency at low flow rates
    • Improved self-cleaning performance
  • Adjustable EasyFix levelling feet

Product information

  • Certified according to EN 1253-1 and EN 1433
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Wide range of gratings including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Anchors for fixing in concrete

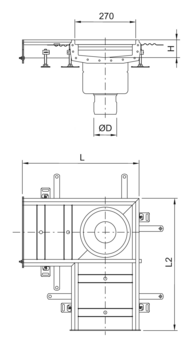

DimensionsMaterialItem

number
Remember
LL2HACO gullyD
[mm][mm][mm][mm]
51558580ACO hygienic gully 2181101.4301448771
1.4404448770
140ACO hygienic gully 2181101.4301448773
1.4404448772
200ACO hygienic gully 2181101.4301448775
1.4404448774
DimensionsMaterialItem

number
LL2HACO gullyD
515 mm585 mm80 mmACO hygienic gully 218110 mm1.4301448771
515 mm585 mm80 mmACO hygienic gully 218110 mm1.4404448770
515 mm585 mm140 mmACO hygienic gully 218110 mm1.4301448773
515 mm585 mm140 mmACO hygienic gully 218110 mm1.4404448772
515 mm585 mm200 mmACO hygienic gully 218110 mm1.4301448775
515 mm585 mm200 mmACO hygienic gully 218110 mm1.4404448774
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

Optional compatible silt baskets:

  • 416910 (1.4301)
  • 416911 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.9 l/s
  • Maximum flow rate with vertical gully: 5.6 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 1.3 kg

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

Optional compatible silt baskets:

  • 416910 (1.4301)
  • 416911 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.9 l/s
  • Maximum flow rate with vertical gully: 5.6 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 1.3 kg

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.6 l/s
  • Maximum flow rate with vertical gully: 5.8 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 1.9 kg

ACO Easy FAT 218

Suitable for
  • ACO gully 218, fixed height
Description

Replacement sealing ring:

  • 98403

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.6 l/s
  • Maximum flow rate with vertical gully: 5.8 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 1.9 kg

EasyFix stabilizing set

Suitable for
  • ACO hygienic and commercial box channels, width 300 mm
  • ACO vinyl box channels, width 270 mm
  • ACO modular box channel 270
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
