Level Invert Channel 634091

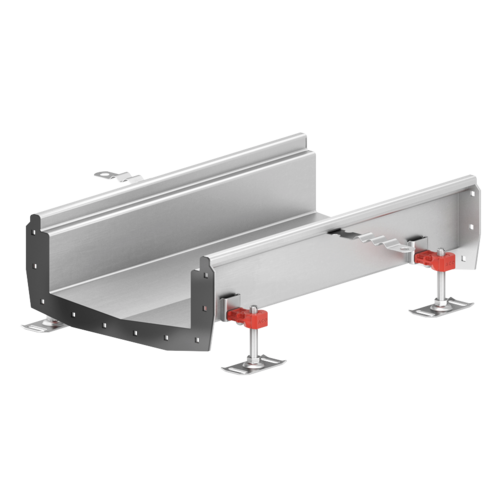

Level invert channel

Product benefits

  • V-profile bottom design
    • Enhanced flow efficiency at low flow rates
    • Improved self-cleaning performance
  • Adjustable EasyFix levelling feet
Contact
Downloads

Product information

  • Certified according to EN 1253-1 and EN 1433
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Wide range of gratings including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Anchors for fixing in concrete

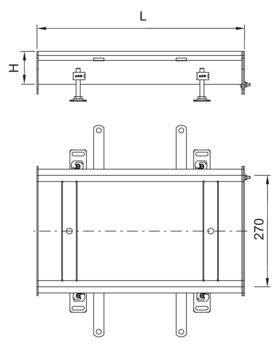

DimensionsMaterialItem

number		Remember
LH
[mm][mm]
500501.4301448456
1.4404448457
651.4301448458
1.4404448459
801.4301448460
1.4404448461
951.4301448462
1.4404448463
1101.4301448464
1.4404448465
1000501.4301448466
1.4404448467
651.4301448468
1.4404448469
801.4301448470
1.4404448471
951.4301448472
1.4404448473
1101.4301448474
1.4404448475
2000501.4301448476
1.4404448477
651.4301448478
1.4404448479
801.4301448480
1.4404448481
3000501.4301448482
1.4404448483
651.4301448484
1.4404448485
801.4301448486
1.4404448487
6000501.4301448488
1.4404448489
651.4301448490
1.4404448491
801.4301448492
1.4404448493
DimensionsMaterialItem

number
LH
500 mm50 mm1.4301448456
500 mm50 mm1.4404448457
500 mm65 mm1.4301448458
500 mm65 mm1.4404448459
500 mm80 mm1.4301448460
500 mm80 mm1.4404448461
500 mm95 mm1.4301448462
500 mm95 mm1.4404448463
500 mm110 mm1.4301448464
500 mm110 mm1.4404448465
1000 mm50 mm1.4301448466
1000 mm50 mm1.4404448467
1000 mm65 mm1.4301448468
1000 mm65 mm1.4404448469
1000 mm80 mm1.4301448470
1000 mm80 mm1.4404448471
1000 mm95 mm1.4301448472
1000 mm95 mm1.4404448473
1000 mm110 mm1.4301448474
1000 mm110 mm1.4404448475
2000 mm50 mm1.4301448476
2000 mm50 mm1.4404448477
2000 mm65 mm1.4301448478
2000 mm65 mm1.4404448479
2000 mm80 mm1.4301448480
2000 mm80 mm1.4404448481
3000 mm50 mm1.4301448482
3000 mm50 mm1.4404448483
3000 mm65 mm1.4301448484
3000 mm65 mm1.4404448485
3000 mm80 mm1.4301448486
3000 mm80 mm1.4404448487
6000 mm50 mm1.4301448488
6000 mm50 mm1.4404448489
6000 mm65 mm1.4301448490
6000 mm65 mm1.4404448491
6000 mm80 mm1.4301448492
6000 mm80 mm1.4404448493
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil
ACO frameless ladder grating

ACO frameless ladder grating

ACO hygienic ladder grating, slip-resistant

ACO hygienic ladder grating, slip-resistant

ACO hygienic ladder grating, plain

ACO hygienic ladder grating, plain

ACO mesh grating, slip-resistant

ACO mesh grating, slip-resistant

ACO mesh grating, plain

ACO mesh grating, plain

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301
Item no.
450648

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301
Item no.
450649

EasyFix stabilizing set

Suitable for
  • ACO hygienic and commercial box channels, width 300 mm
  • ACO vinyl box channels, width 270 mm
  • ACO modular box channel 270
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Item no.
446514
