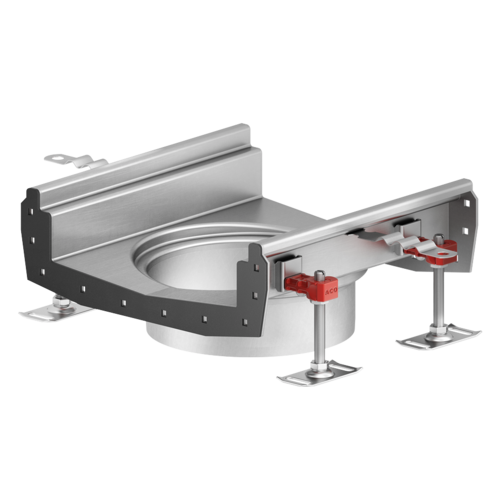

Centre outlet

Product benefits

  • V-profile bottom design
    • Enhanced flow efficiency at low flow rates
    • Improved self-cleaning performance
  • Adjustable EasyFix levelling feet

Product information

  • Certified according to EN 1253-1 and EN 1433
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Wide range of gratings including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Anchors for fixing in concrete

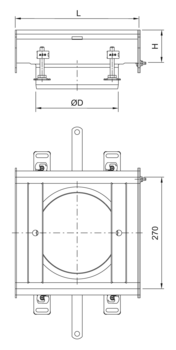

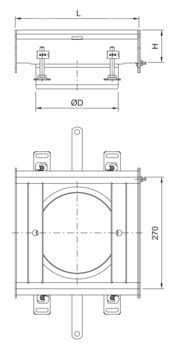

DimensionsMaterialItem

number
Remember
LHD
[mm][mm][mm]
300502001.4301448678
1.4404448677
652001.4301448680
1.4404448679
802001.4301448682
1.4404448681
1102001.4301448684
1.4404448683
1402001.4301448686
1.4404448685
1702001.4301448688
1.4404448687
2002001.4301448690
1.4404448689
DimensionsMaterialItem

number
LHD
300 mm50 mm200 mm1.4301448678
300 mm50 mm200 mm1.4404448677
300 mm65 mm200 mm1.4301448680
300 mm65 mm200 mm1.4404448679
300 mm80 mm200 mm1.4301448682
300 mm80 mm200 mm1.4404448681
300 mm110 mm200 mm1.4301448684
300 mm110 mm200 mm1.4404448683
300 mm140 mm200 mm1.4301448686
300 mm140 mm200 mm1.4404448685
300 mm170 mm200 mm1.4301448688
300 mm170 mm200 mm1.4404448687
300 mm200 mm200 mm1.4301448690
300 mm200 mm200 mm1.4404448689
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
  • ACO modular channels - top section outlet øD 200 mm
Description

Replacement sealing ring:

Optional compatible silt baskets:

  • 449962 (1.4301)
  • 449963 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 4.2 l/s
  • Maximum flow rate with vertical gully: 6.2 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 1.4 kg

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
  • ACO modular channels - top section outlet øD 200 mm
Description

Replacement sealing ring:

Optional compatible silt baskets:

  • 449962 (1.4301)
  • 449963 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 4.2 l/s
  • Maximum flow rate with vertical gully: 6.2 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 1.4 kg

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
  • ACO modular channels - top section outlet øD 200 mm
Description

Replacement sealing ring:

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.6 l/s
  • Maximum flow rate with vertical gully: 4.2 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 1.9 kg

ACO Easy FAT

Suitable for
  • ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
  • ACO modular channels - top section outlet øD 200 mm
Description

Replacement sealing ring:

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 3.6 l/s
  • Maximum flow rate with vertical gully: 4.2 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 1.9 kg

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)

Silt basket

Suitable for

Compatible only with Easy FAT 200

  • 449685
  • 449687
Description
  • Material grade 1.4301 (304)

Silt basket

Suitable for

Compatible only with Easy FAT 200

  • 449685
  • 449687
Description
  • Material grade 1.4404 (316L)

EasyFix stabilizing set

Suitable for
  • ACO hygienic and commercial box channels, width 300 mm
  • ACO vinyl box channels, width 270 mm
  • ACO modular box channel 270
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
