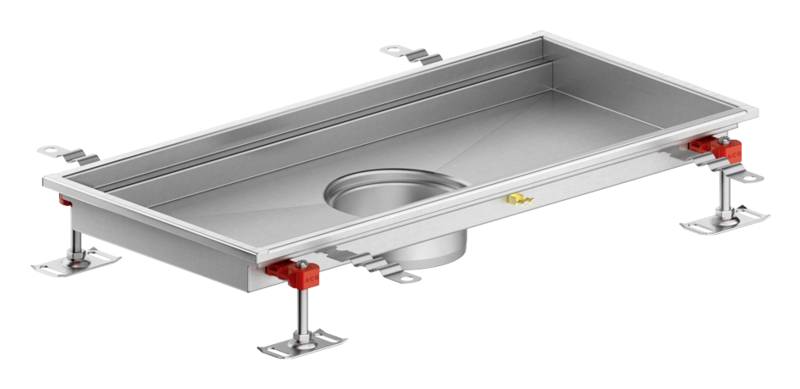

ACO commercial box channel - standard edge

Product benefits

  • Fully compliant to EN 1253
  • Full drainability to ensure hygienic cleaning
  • Fully pickle passivated to restore corrosion resistance and optimum durability
  • Steel thickness min 1.5 mm
  • Rubber edge infill to provide additional strength in dense traffic areas
  • EasyFix®Clips for quick, easy and precise height adjustment during installation
  • Chamfered spigot outlets provide easy push-fit connection
  • ACO protective cover available
  • Silt basket collects debris effectively

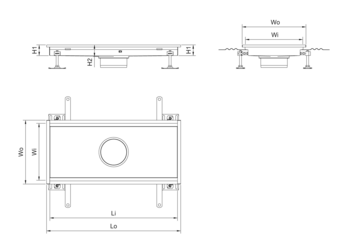

DimensionsGully compatibilityMaterialItem

number
Remember
WoWiLoLiH1D
[mm][mm][mm][mm][mm][mm]
20017083080050125ACO gully 1421.4301447032
1030100050125ACO gully 1421.4301447033
1530150050125ACO gully 1421.4301447034
2030200050125ACO gully 1421.4301447035
30027033030050125ACO gully 1421.4301447036
63060050125ACO gully 1421.4301447037
1030100050125ACO gully 1421.4301447038
2030200050125ACO gully 1421.4301447039
3030300050125ACO gully 1421.4301447040
40037043040050125ACO gully 1421.4301447041
83080050125ACO gully 1421.4301447042
50047053050050125ACO gully 1421.4301447043
1030100050125ACO gully 1421.4301447044
60057063060050125ACO gully 1421.4301447045

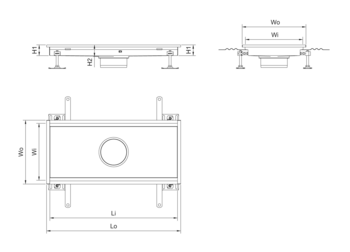

DimensionsGully compatibilityMaterialItem

number
WoWiLoLiH1D
200 mm170 mm830 mm800 mm50 mm125 mmACO gully 1421.4301447032
1030 mm1000 mm50 mm125 mmACO gully 1421.4301447033
1530 mm1500 mm50 mm125 mmACO gully 1421.4301447034
2030 mm2000 mm50 mm125 mmACO gully 1421.4301447035
300 mm270 mm330 mm300 mm50 mm125 mmACO gully 1421.4301447036
630 mm600 mm50 mm125 mmACO gully 1421.4301447037
1030 mm1000 mm50 mm125 mmACO gully 1421.4301447038
2030 mm2000 mm50 mm125 mmACO gully 1421.4301447039
3030 mm3000 mm50 mm125 mmACO gully 1421.4301447040
400 mm370 mm430 mm400 mm50 mm125 mmACO gully 1421.4301447041
830 mm800 mm50 mm125 mmACO gully 1421.4301447042
500 mm470 mm530 mm500 mm50 mm125 mmACO gully 1421.4301447043
1030 mm1000 mm50 mm125 mmACO gully 1421.4301447044
600 mm570 mm630 mm600 mm50 mm125 mmACO gully 1421.4301447045

ACO Easy FAT 142 narrow

Suitable for
  • ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description

Optional compatible silt baskets:

  • 416902 (1.4301)
  • 416903 (1.4404)

Replacement sealing ring:

  • 98402

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.15 l/s
  • Maximum flow rate with vertical gully: 2.6 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 0.8 kg

ACO Easy FAT 142 narrow

Suitable for
  • ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description

Optional compatible silt baskets:

  • 416902 (1.4301)
  • 416903 (1.4404)

Replacement sealing ring:

  • 98402

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.15 l/s
  • Maximum flow rate with vertical gully: 2.6 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 0.8 kg

ACO Easy FAT 142 narrow

Suitable for
  • ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description

Replacement sealing ring:

  • 98402

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.1 l/s
  • Maximum flow rate with vertical gully: 2.4 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 1 kg

ACO Easy FAT 142 narrow

Suitable for
  • ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description

Replacement sealing ring:

  • 98402

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 2.1 l/s
  • Maximum flow rate with vertical gully: 2.4 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 1 kg

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Optional compatible silt baskets:

  • 449960 (1.4301)
  • 449961 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 1.2 l/s
  • Maximum flow rate with vertical gully: 1.2 l/s
  • Material: 1.4301
  • Silt basket not included
  • Weight: 0.6 kg

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Optional compatible silt baskets:

  • 449960 (1.4301)
  • 449961 (1.4404)

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 1.2 l/s
  • Maximum flow rate with vertical gully: 1.2 l/s
  • Material: 1.4404
  • Silt basket not included
  • Weight: 0.6 kg

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 0.8 l/s
  • Maximum flow rate with vertical gully: 0.8 l/s
  • Material: 1.4301
  • Silt basket included
  • Weight: 0.7 kg

ACO Easy FAT 125

Suitable for
  • ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
  • ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
  • ACO modular channels - top section outlet øD 125 mm
Description

Replacement sealing ring:

  • 450021

Benefits

  • User-friendly installation and maintenance
  • Complete ease in removing and cleaning
  • Minimum steel thickness of 1.2 mm
  • Fully pickled and passivated
  • Extensively tested and classified in accordance with EN 1253-1 guidelines

Features

  • Maximum flow rate with horizontal gully: 0.8 l/s
  • Maximum flow rate with vertical gully: 0.8 l/s
  • Material: 1.4404
  • Silt basket included
  • Weight: 0.7 kg

Silt basket

Suitable for

Compatible only with Easy FAT 125

  • 449677
  • 449679
Description
  • Material grade 1.4301 (304)

Silt basket

Suitable for

Compatible only with Easy FAT 125

  • 449677
  • 449679
Description
  • Material grade 1.4404 (316L)
