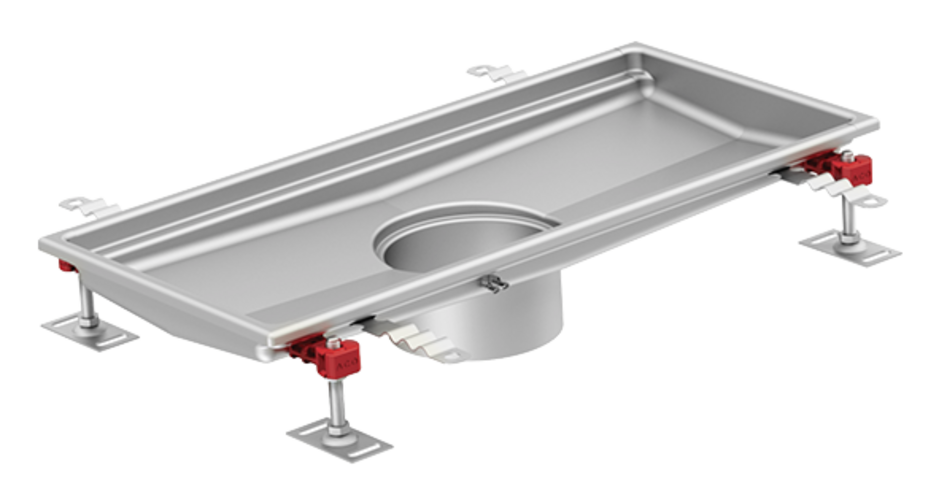

ACO hygienic box channel

Product benefits

ACO hygienic drainage developed under HygieneFirst philosophy fulfils strongest hygienic requirements and applies relevant hygienic design principles reserved for food processing equipment.
- Fully inspectable and cleanable
- Full drainability
- Internal radii equal or larger than 3 mm
- Minimal longitudinal slope 1%
- Minimal sectional slope 5°
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated

Contact

Downloads

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Outlet diameter 125, 142 or 200 mm
V-shape bottom for width up to 300 mm, reinforced bottom for width above and including 400 mm
Adjustable EasyFix levelling feet
Anchors for fixing in concrete
Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
Silt basket available as accessory

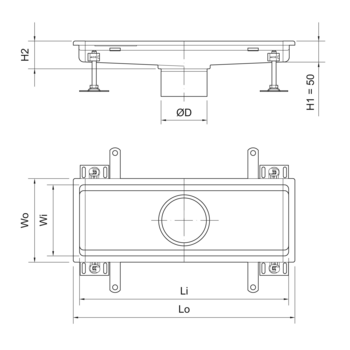

Dimensions							Gully compatibility	Material	Item number
Wo	Wi	Lo	Li	H1	H2	D
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
200	170	530	500	50	60	125	ACO hygienic gully 142	1.4301	416584
		530	500	50	60	125	ACO hygienic gully 142	1.4404	416602
		830	800	50	60	125	ACO hygienic gully 142	1.4301	416585
		830	800	50	60	125	ACO hygienic gully 142	1.4404	416603
		1030	1000	50	60	125	ACO hygienic gully 142	1.4301	416586
		1030	1000	50	60	125	ACO hygienic gully 142	1.4404	416604
		1230	1200	50	60	125	ACO hygienic gully 142	1.4301	416587
		1230	1200	50	60	125	ACO hygienic gully 142	1.4404	416605
		1530	1500	50	60	125	ACO hygienic gully 142	1.4301	416588
		1530	1500	50	60	125	ACO hygienic gully 142	1.4404	416606
		2030	2000	50	60	125	ACO hygienic gully 142	1.4301	416589
		2030	2000	50	60	125	ACO hygienic gully 142	1.4404	416607
		530	500	50	60	142	ACO hygienic gully 157	1.4301	416590
		530	500	50	60	142	ACO hygienic gully 157	1.4404	416608
		830	800	50	60	142	ACO hygienic gully 157	1.4301	416591
		830	800	50	60	142	ACO hygienic gully 157	1.4404	416609
		1030	1000	50	60	142	ACO hygienic gully 157	1.4301	416592
		1030	1000	50	60	142	ACO hygienic gully 157	1.4404	416610
		1230	1200	50	60	142	ACO hygienic gully 157	1.4301	416593
		1230	1200	50	60	142	ACO hygienic gully 157	1.4404	416611
		1530	1500	50	60	142	ACO hygienic gully 157	1.4301	416594
		1530	1500	50	60	142	ACO hygienic gully 157	1.4404	416612
		2030	2000	50	60	142	ACO hygienic gully 157	1.4301	416595
		2030	2000	50	60	142	ACO hygienic gully 157	1.4404	416613
300	270	330	300	50	55	142	ACO hygienic gully 157	1.4301	416614
		330	300	50	55	142	ACO hygienic gully 157	1.4404	416628
		630	600	50	60	142	ACO hygienic gully 157	1.4301	416615
		630	600	50	60	142	ACO hygienic gully 157	1.4404	416629
		1030	1000	50	60	142	ACO hygienic gully 157	1.4301	416616
		1030	1000	50	60	142	ACO hygienic gully 157	1.4404	416630
		1530	1500	50	60	142	ACO hygienic gully 157	1.4301	416617
		1530	1500	50	60	142	ACO hygienic gully 157	1.4404	416631
		2030	2000	50	60	142	ACO hygienic gully 157	1.4301	416618
		2030	2000	50	60	142	ACO hygienic gully 157	1.4404	416632
		3030	3000	50	70	142	ACO hygienic gully 157	1.4301	416619
		3030	3000	50	70	142	ACO hygienic gully 157	1.4404	416633
		4030	4000	50	80	142	ACO hygienic gully 157	1.4301	416620
		4030	4000	50	80	142	ACO hygienic gully 157	1.4404	416634
400	370	430	400	50	60	142	ACO hygienic gully 157	1.4301	416642
		430	400	50	60	142	ACO hygienic gully 157	1.4404	416648
		630	600	50	60	142	ACO hygienic gully 157	1.4301	416643
		630	600	50	60	142	ACO hygienic gully 157	1.4404	416649
		830	800	50	60	142	ACO hygienic gully 157	1.4301	416644
		830	800	50	60	142	ACO hygienic gully 157	1.4404	416650
500	470	530	500	50	65	142	ACO hygienic gully 157	1.4301	416654
		530	500	50	65	142	ACO hygienic gully 157	1.4404	416660
		830	800	50	65	142	ACO hygienic gully 157	1.4301	416655
		830	800	50	65	142	ACO hygienic gully 157	1.4404	416661
		1030	1000	50	65	142	ACO hygienic gully 157	1.4301	416656
		1030	1000	50	65	142	ACO hygienic gully 157	1.4404	416662
300	270	330	300	50	55	200	ACO hygienic gully 218	1.4301	416621
		330	300	50	55	200	ACO hygienic gully 218	1.4404	416635
		630	600	50	60	200	ACO hygienic gully 218	1.4301	416622
		630	600	50	60	200	ACO hygienic gully 218	1.4404	416636
		1030	1000	50	60	200	ACO hygienic gully 218	1.4301	416623
		1030	1000	50	60	200	ACO hygienic gully 218	1.4404	416637
		1530	1500	50	60	200	ACO hygienic gully 218	1.4301	416624
		1530	1500	50	60	200	ACO hygienic gully 218	1.4404	416638
		2030	2000	50	60	200	ACO hygienic gully 218	1.4301	416625
		2030	2000	50	60	200	ACO hygienic gully 218	1.4404	416639
		3030	3000	50	70	200	ACO hygienic gully 218	1.4301	416626
		3030	3000	50	70	200	ACO hygienic gully 218	1.4404	416640
		4030	4000	50	80	200	ACO hygienic gully 218	1.4301	416627
		4030	4000	50	80	200	ACO hygienic gully 218	1.4404	416641
400	370	430	400	50	60	200	ACO hygienic gully 218	1.4301	416645
		430	400	50	60	200	ACO hygienic gully 218	1.4404	416651
		630	600	50	60	200	ACO hygienic gully 218	1.4301	416646
		630	600	50	60	200	ACO hygienic gully 218	1.4404	416652
		830	800	50	60	200	ACO hygienic gully 218	1.4301	416647
		830	800	50	60	200	ACO hygienic gully 218	1.4404	416653
500	470	530	500	50	65	200	ACO hygienic gully 218	1.4301	416657
		530	500	50	65	200	ACO hygienic gully 218	1.4404	416663
		830	800	50	65	200	ACO hygienic gully 218	1.4301	416658
		830	800	50	65	200	ACO hygienic gully 218	1.4404	416664
		1030	1000	50	65	200	ACO hygienic gully 218	1.4301	416659
		1030	1000	50	65	200	ACO hygienic gully 218	1.4404	416665
600	570	630	600	50	70	200	ACO hygienic gully 218	1.4301	416666
		630	600	50	70	200	ACO hygienic gully 218	1.4404	416669
		930	900	50	70	200	ACO hygienic gully 218	1.4301	416667
		930	900	50	70	200	ACO hygienic gully 218	1.4404	416670
		1230	1200	50	70	200	ACO hygienic gully 218	1.4301	416668
		1230	1200	50	70	200	ACO hygienic gully 218	1.4404	416671
800	770	830	800	50	80	200	ACO hygienic gully 218	1.4301	416672
800	770	830	800	50	80	200	ACO hygienic gully 218	1.4404	416673
