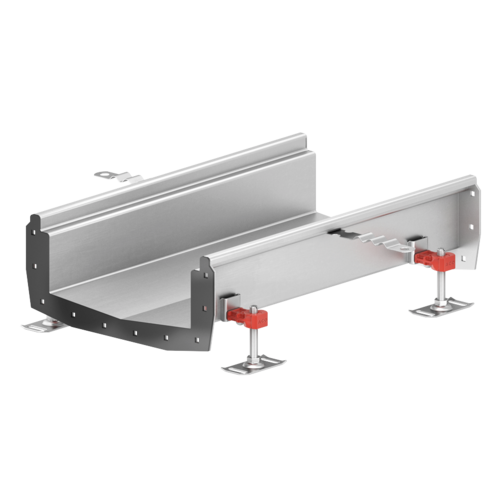

Sloping invert channel

Product benefits

V-profile bottom design
- Enhanced flow efficiency at low flow rates
- Improved self-cleaning performance
Adjustable EasyFix levelling feet

Contact

Downloads

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Certified according to EN 1253-1 and EN 1433
- Steel thickness min. 1,5 mm
- Fully welded hygienic joints
- Fully pickled and passivated
- Edge infill
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Wide range of gratings including slip resistant solution
Silt basket and foul air trap (FAT) available as accessory
Anchors for fixing in concrete

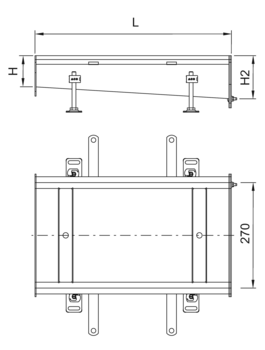

Dimensions			Material	Item number
L	H	H2
[mm]	[mm]	[mm]
500	50	80	1.4301	448494
		80	1.4404	448495
		65	1.4301	448496
		65	1.4404	448497
	65	80	1.4301	448498
	65	80	1.4404	448499
	80	110	1.4301	448500
		110	1.4404	448501
		95	1.4301	448502
		95	1.4404	448503
	95	110	1.4301	448504
	95	110	1.4404	448505
	110	140	1.4301	448506
		140	1.4404	448507
		125	1.4301	448508
		125	1.4404	448509
	125	140	1.4301	448510
	125	140	1.4404	448511
	140	170	1.4301	448512
		170	1.4404	448513
		155	1.4301	448514
		155	1.4404	448515
	155	170	1.4301	448516
	155	170	1.4404	448517
	170	200	1.4301	448518
		200	1.4404	448519
		185	1.4301	448520
		185	1.4404	448521
	185	200	1.4301	448522
	185	200	1.4404	448523
1000	50	80	1.4301	448524
		80	1.4404	448525
		65	1.4301	448526
		65	1.4404	448527
	65	80	1.4301	448528
	65	80	1.4404	448529
	80	110	1.4301	448530
		110	1.4404	448531
		95	1.4301	448532
		95	1.4404	448533
	95	110	1.4301	448534
	95	110	1.4404	448535
	110	140	1.4301	448536
		140	1.4404	448537
		125	1.4301	448538
		125	1.4404	448539
	125	140	1.4301	448540
	125	140	1.4404	448541
	140	170	1.4301	448542
		170	1.4404	448543
		155	1.4301	448544
		155	1.4404	448545
	155	170	1.4301	448546
	155	170	1.4404	448547
	170	200	1.4301	448548
		200	1.4404	448549
		185	1.4301	448550
		185	1.4404	448551
	185	200	1.4301	448552
	185	200	1.4404	448553
2000	50	80	1.4301	448554
		80	1.4404	448555
		65	1.4301	448556
		65	1.4404	448557
	65	80	1.4301	448558
	65	80	1.4404	448559
	80	110	1.4301	448560
		110	1.4404	448561
		95	1.4301	448562
		95	1.4404	448563
	95	110	1.4301	448564
	95	110	1.4404	448565
	110	140	1.4301	448566
		140	1.4404	448567
		125	1.4301	448568
		125	1.4404	448569
	125	140	1.4301	448570
	125	140	1.4404	448571
	140	170	1.4301	448572
		170	1.4404	448573
		155	1.4301	448574
		155	1.4404	448575
	155	170	1.4301	448576
	155	170	1.4404	448577
	170	200	1.4301	448578
		200	1.4404	448579
		185	1.4301	448580
		185	1.4404	448581
	185	200	1.4301	448582
	185	200	1.4404	448583
3000	50	80	1.4301	448584
		80	1.4404	448585
		65	1.4301	448586
		65	1.4404	448587
	65	80	1.4301	448588
	65	80	1.4404	448589
	80	110	1.4301	448590
		110	1.4404	448591
		95	1.4301	448592
		95	1.4404	448593
	95	110	1.4301	448594
	95	110	1.4404	448595
	110	140	1.4301	448596
		140	1.4404	448597
		125	1.4301	448598
		125	1.4404	448599
	125	140	1.4301	448600
	125	140	1.4404	448601
	140	170	1.4301	448602
		170	1.4404	448603
		155	1.4301	448604
		155	1.4404	448605
	155	170	1.4301	448606
	155	170	1.4404	448607
	170	200	1.4301	448608
		200	1.4404	448609
		185	1.4301	448610
		185	1.4404	448611
	185	200	1.4301	448612
	185	200	1.4404	448613
6000	50	110	1.4301	448614
	50	110	1.4404	448615
	80	140	1.4301	448616
	80	140	1.4404	448617
	110	170	1.4301	448618
	110	170	1.4404	448619
	140	200	1.4301	448620
	140	200	1.4404	448621

Dimensions			Material	Item number
L	H	H2	Material	Item number
500 mm	50 mm	80 mm	1.4301	448494
500 mm	50 mm	80 mm	1.4404	448495
500 mm	50 mm	65 mm	1.4301	448496
500 mm	50 mm	65 mm	1.4404	448497
500 mm	65 mm	80 mm	1.4301	448498
500 mm	65 mm	80 mm	1.4404	448499
500 mm	80 mm	110 mm	1.4301	448500
500 mm	80 mm	110 mm	1.4404	448501
500 mm	80 mm	95 mm	1.4301	448502
500 mm	80 mm	95 mm	1.4404	448503
500 mm	95 mm	110 mm	1.4301	448504
500 mm	95 mm	110 mm	1.4404	448505
500 mm	110 mm	140 mm	1.4301	448506
500 mm	110 mm	140 mm	1.4404	448507
500 mm	110 mm	125 mm	1.4301	448508
500 mm	110 mm	125 mm	1.4404	448509
500 mm	125 mm	140 mm	1.4301	448510
500 mm	125 mm	140 mm	1.4404	448511
500 mm	140 mm	170 mm	1.4301	448512
500 mm	140 mm	170 mm	1.4404	448513
500 mm	140 mm	155 mm	1.4301	448514
500 mm	140 mm	155 mm	1.4404	448515
500 mm	155 mm	170 mm	1.4301	448516
500 mm	155 mm	170 mm	1.4404	448517
500 mm	170 mm	200 mm	1.4301	448518
500 mm	170 mm	200 mm	1.4404	448519
500 mm	170 mm	185 mm	1.4301	448520
500 mm	170 mm	185 mm	1.4404	448521
500 mm	185 mm	200 mm	1.4301	448522
500 mm	185 mm	200 mm	1.4404	448523
1000 mm	50 mm	80 mm	1.4301	448524
1000 mm	50 mm	80 mm	1.4404	448525
1000 mm	50 mm	65 mm	1.4301	448526
1000 mm	50 mm	65 mm	1.4404	448527
1000 mm	65 mm	80 mm	1.4301	448528
1000 mm	65 mm	80 mm	1.4404	448529
1000 mm	80 mm	110 mm	1.4301	448530
1000 mm	80 mm	110 mm	1.4404	448531
1000 mm	80 mm	95 mm	1.4301	448532
1000 mm	80 mm	95 mm	1.4404	448533
1000 mm	95 mm	110 mm	1.4301	448534
1000 mm	95 mm	110 mm	1.4404	448535
1000 mm	110 mm	140 mm	1.4301	448536
1000 mm	110 mm	140 mm	1.4404	448537
1000 mm	110 mm	125 mm	1.4301	448538
1000 mm	110 mm	125 mm	1.4404	448539
1000 mm	125 mm	140 mm	1.4301	448540
1000 mm	125 mm	140 mm	1.4404	448541
1000 mm	140 mm	170 mm	1.4301	448542
1000 mm	140 mm	170 mm	1.4404	448543
1000 mm	140 mm	155 mm	1.4301	448544
1000 mm	140 mm	155 mm	1.4404	448545
1000 mm	155 mm	170 mm	1.4301	448546
1000 mm	155 mm	170 mm	1.4404	448547
1000 mm	170 mm	200 mm	1.4301	448548
1000 mm	170 mm	200 mm	1.4404	448549
1000 mm	170 mm	185 mm	1.4301	448550
1000 mm	170 mm	185 mm	1.4404	448551
1000 mm	185 mm	200 mm	1.4301	448552
1000 mm	185 mm	200 mm	1.4404	448553
2000 mm	50 mm	80 mm	1.4301	448554
2000 mm	50 mm	80 mm	1.4404	448555
2000 mm	50 mm	65 mm	1.4301	448556
2000 mm	50 mm	65 mm	1.4404	448557
2000 mm	65 mm	80 mm	1.4301	448558
2000 mm	65 mm	80 mm	1.4404	448559
2000 mm	80 mm	110 mm	1.4301	448560
2000 mm	80 mm	110 mm	1.4404	448561
2000 mm	80 mm	95 mm	1.4301	448562
2000 mm	80 mm	95 mm	1.4404	448563
2000 mm	95 mm	110 mm	1.4301	448564
2000 mm	95 mm	110 mm	1.4404	448565
2000 mm	110 mm	140 mm	1.4301	448566
2000 mm	110 mm	140 mm	1.4404	448567
2000 mm	110 mm	125 mm	1.4301	448568
2000 mm	110 mm	125 mm	1.4404	448569
2000 mm	125 mm	140 mm	1.4301	448570
2000 mm	125 mm	140 mm	1.4404	448571
2000 mm	140 mm	170 mm	1.4301	448572
2000 mm	140 mm	170 mm	1.4404	448573
2000 mm	140 mm	155 mm	1.4301	448574
2000 mm	140 mm	155 mm	1.4404	448575
2000 mm	155 mm	170 mm	1.4301	448576
2000 mm	155 mm	170 mm	1.4404	448577
2000 mm	170 mm	200 mm	1.4301	448578
2000 mm	170 mm	200 mm	1.4404	448579
2000 mm	170 mm	185 mm	1.4301	448580
2000 mm	170 mm	185 mm	1.4404	448581
2000 mm	185 mm	200 mm	1.4301	448582
2000 mm	185 mm	200 mm	1.4404	448583
3000 mm	50 mm	80 mm	1.4301	448584
3000 mm	50 mm	80 mm	1.4404	448585
3000 mm	50 mm	65 mm	1.4301	448586
3000 mm	50 mm	65 mm	1.4404	448587
3000 mm	65 mm	80 mm	1.4301	448588
3000 mm	65 mm	80 mm	1.4404	448589
3000 mm	80 mm	110 mm	1.4301	448590
3000 mm	80 mm	110 mm	1.4404	448591
3000 mm	80 mm	95 mm	1.4301	448592
3000 mm	80 mm	95 mm	1.4404	448593
3000 mm	95 mm	110 mm	1.4301	448594
3000 mm	95 mm	110 mm	1.4404	448595
3000 mm	110 mm	140 mm	1.4301	448596
3000 mm	110 mm	140 mm	1.4404	448597
3000 mm	110 mm	125 mm	1.4301	448598
3000 mm	110 mm	125 mm	1.4404	448599
3000 mm	125 mm	140 mm	1.4301	448600
3000 mm	125 mm	140 mm	1.4404	448601
3000 mm	140 mm	170 mm	1.4301	448602
3000 mm	140 mm	170 mm	1.4404	448603
3000 mm	140 mm	155 mm	1.4301	448604
3000 mm	140 mm	155 mm	1.4404	448605
3000 mm	155 mm	170 mm	1.4301	448606
3000 mm	155 mm	170 mm	1.4404	448607
3000 mm	170 mm	200 mm	1.4301	448608
3000 mm	170 mm	200 mm	1.4404	448609
3000 mm	170 mm	185 mm	1.4301	448610
3000 mm	170 mm	185 mm	1.4404	448611
3000 mm	185 mm	200 mm	1.4301	448612
3000 mm	185 mm	200 mm	1.4404	448613
6000 mm	50 mm	110 mm	1.4301	448614
6000 mm	50 mm	110 mm	1.4404	448615
6000 mm	80 mm	140 mm	1.4301	448616
6000 mm	80 mm	140 mm	1.4404	448617
6000 mm	110 mm	170 mm	1.4301	448618
6000 mm	110 mm	170 mm	1.4404	448619
6000 mm	140 mm	200 mm	1.4301	448620
6000 mm	140 mm	200 mm	1.4404	448621

Type 1: ACO box channel - standard type - gully with adhesive bonding flange
Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
