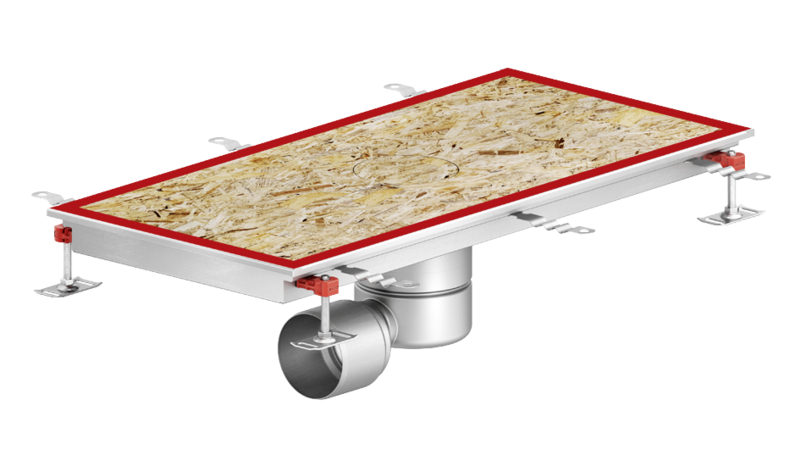

ACO commercial box channel - Fixed height

Product benefits

Fully compliant to EN 1253
Full drainability to ensure hygienic cleaning
Fully pickle passivated to restore corrosion resistance and optimum durability
Steel thickness min 1.5 mm
Rubber edge infill to provide additional strength in dense traffic areas
EasyFix levelling feet for quick, easy and precise height adjustment during installation
Chamfered spigot outlets provide easy push-fit connection
ACO protective cover included
Compatible with ACO easy FAT D142
Perfect for resin floors

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

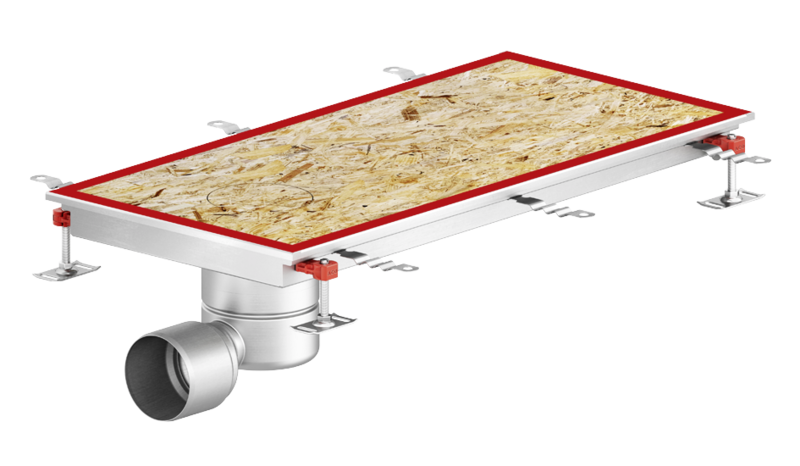

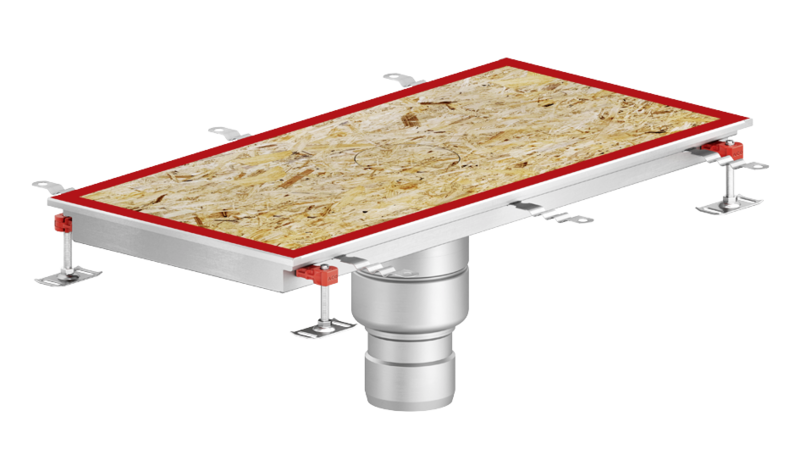

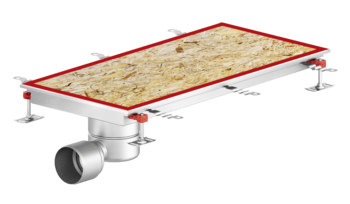

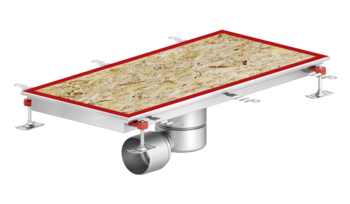

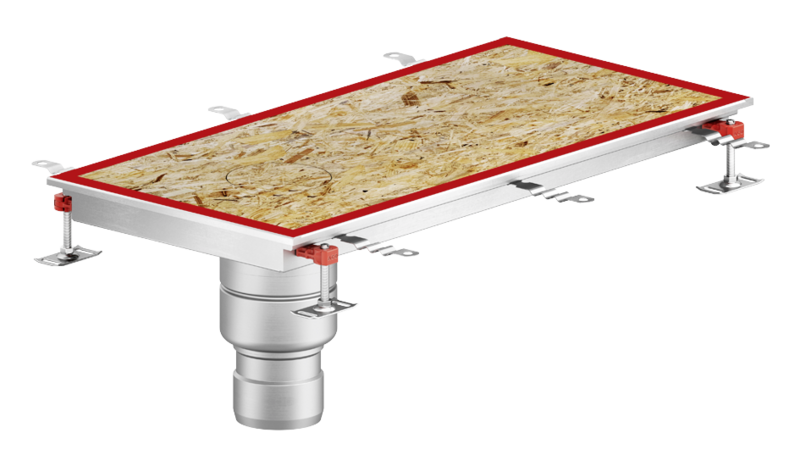

	Outlet orientation	Outlet position	Dimensions						Material	Item number	Downloads	Remember
			Wo	Wi	Lo	Li	H1	D
			[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
	Horizontal	Excentric	300	270	630	600	50	110	1.4301	449248_CT
			300	270	1030	1000	50	110	1.4301	449249_CT
			400	370	830	800	50	110	1.4301	449250_CT
			500	470	1030	1000	50	110	1.4301	449251_CT
	Horizontal	Concentric	300	270	1030	1000	50	110	1.4301	449252_CT
			400	370	430	400	50	110	1.4301	449253_CT
			400	370	830	800	50	110	1.4301	449254_CT
			500	470	530	500	50	110	1.4301	449255_CT
			500	470	1030	1000	50	110	1.4301	449256_CT
	Vertical	Excentric	300	270	630	600	50	110	1.4301	449257_CT
			300	270	1030	1000	50	110	1.4301	449258_CT
			400	370	830	800	50	110	1.4301	449259_CT
			500	470	1030	1000	50	110	1.4301	449260_CT
	Vertical	Concentric	300	270	1030	1000	50	110	1.4301	449261_CT
			400	370	430	400	50	110	1.4301	449262_CT
			400	370	830	800	50	110	1.4301	449263_CT
			500	470	530	500	50	110	1.4301	449264_CT
			500	470	1030	1000	50	110	1.4301	449265_CT

	Outlet orientation	Outlet position	Dimensions						Material	Item number
	Outlet orientation	Outlet position	Wo	Wi	Lo	Li	H1	D	Material	Item number
	Horizontal	Excentric	300 mm	270 mm	630 mm	600 mm	50 mm	110 mm	1.4301	449248_CT
			300 mm	270 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449249_CT
			400 mm	370 mm	830 mm	800 mm	50 mm	110 mm	1.4301	449250_CT
			500 mm	470 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449251_CT
	Horizontal	Concentric	300 mm	270 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449252_CT
			400 mm	370 mm	430 mm	400 mm	50 mm	110 mm	1.4301	449253_CT
			400 mm	370 mm	830 mm	800 mm	50 mm	110 mm	1.4301	449254_CT
			500 mm	470 mm	530 mm	500 mm	50 mm	110 mm	1.4301	449255_CT
			500 mm	470 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449256_CT
	Vertical	Excentric	300 mm	270 mm	630 mm	600 mm	50 mm	110 mm	1.4301	449257_CT
			300 mm	270 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449258_CT
			400 mm	370 mm	830 mm	800 mm	50 mm	110 mm	1.4301	449259_CT
			500 mm	470 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449260_CT
	Vertical	Concentric	300 mm	270 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449261_CT
			400 mm	370 mm	430 mm	400 mm	50 mm	110 mm	1.4301	449262_CT
			400 mm	370 mm	830 mm	800 mm	50 mm	110 mm	1.4301	449263_CT
			500 mm	470 mm	530 mm	500 mm	50 mm	110 mm	1.4301	449264_CT
			500 mm	470 mm	1030 mm	1000 mm	50 mm	110 mm	1.4301	449265_CT

ACO frameless ladder grating

ACO frameless ladder grating

ACO hygienic ladder grating

ACO hygienic ladder grating

ACO hygienic slot cover

ACO hygienic slot cover

ACO mesh grating

ACO mesh grating

ACO Easy FAT

Suitable for

ACO gully 157 telescopic
ACO box channels with outlet øD 142 mm and outer width above and including 300 mm
ACO modular box channel 200 - outlet øD 142 mm
ACO modular slot channel 20 - outlet øD 142 mm

Description

Features and Benefits:

Fully removable and easily cleanable
Steel thickness min. 1,2 mm
Fully pickled and passivated
Fully tested and classified according to EN 1253-1

Attributes:

Without silt basket
Flow rate with horizontal gully: 2,15 l/s
Flow rate with vertical gully: 2,6 l/s
Material grade 1.4301 (304)

Item no.
448810

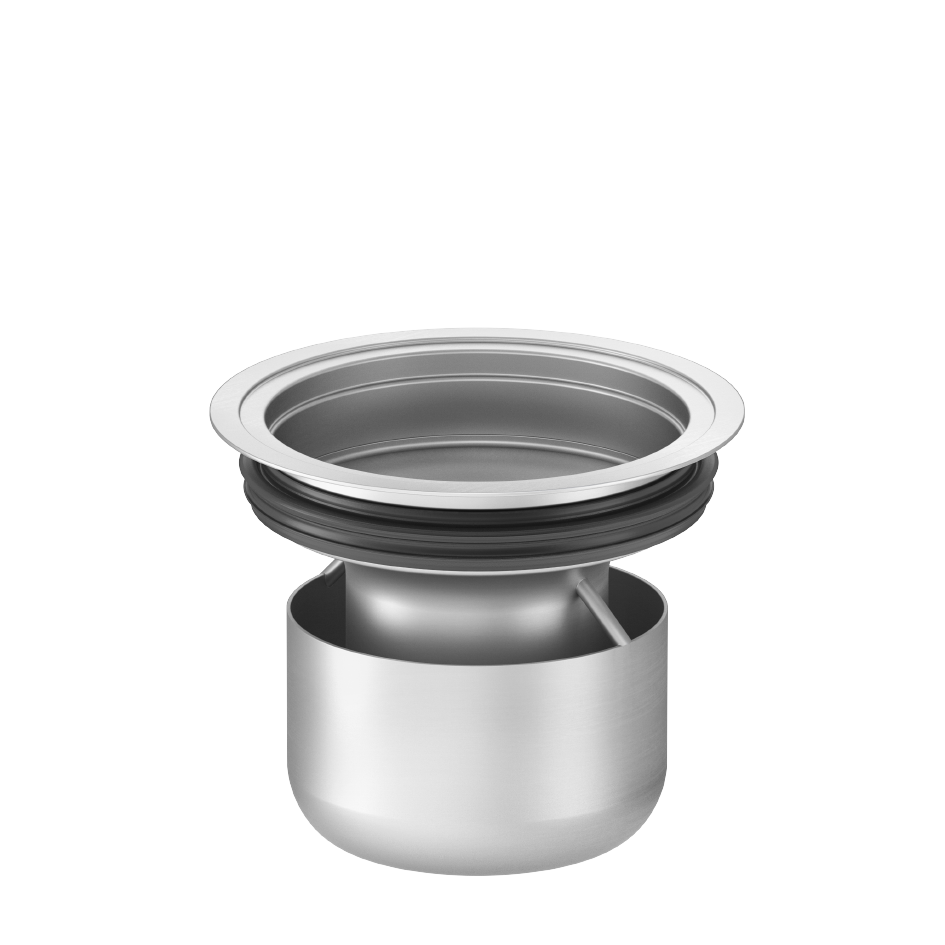

ACO Easy FAT

Suitable for

ACO gully 157 telescopic
ACO box channels with outlet øD 142 mm and outer width above and including 300 mm
ACO modular box channel 200 - outlet øD 142 mm
ACO modular slot channel 20 - outlet øD 142 mm

Description

Features and Benefits:

Fully removable and easily cleanable
Steel thickness min. 1,2 mm
Fully pickled and passivated
Fully tested and classified according to EN 1253-1

Attributes:

Without silt basket
Flow rate with horizontal gully: 2,15 l/s
Flow rate with vertical gully: 2,6 l/s
Material grade 1.4404 (316L)

Item no.
448811

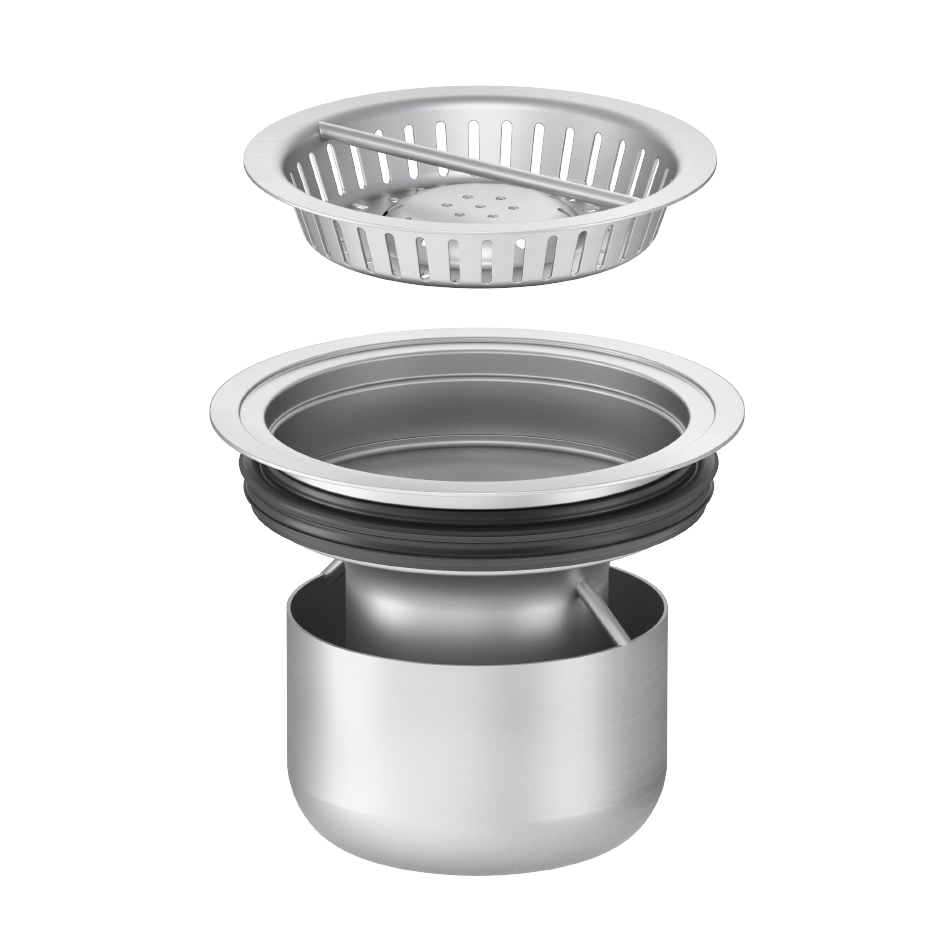

ACO Easy FAT

Suitable for

ACO gully 157 telescopic
ACO box channels with outlet øD 142 mm and outer width above and including 300 mm
ACO modular box channel 200 - outlet øD 142 mm
ACO modular slot channel 20 - outlet øD 142 mm

Description

Features and Benefits:

Simplified and separate handling with FAT and silt basket
Fully removable and easily cleanable
Steel thickness min. 1,2 mm
Fully pickled and passivated
Fully tested and classified according to EN 1253-1

Attributes:

With silt basket
Flow rate with horizontal gully: 2,1 l/s
Flow rate with vertical gully: 2,4 l/s
Material grade 1.4301 (304)

Item no.
449096

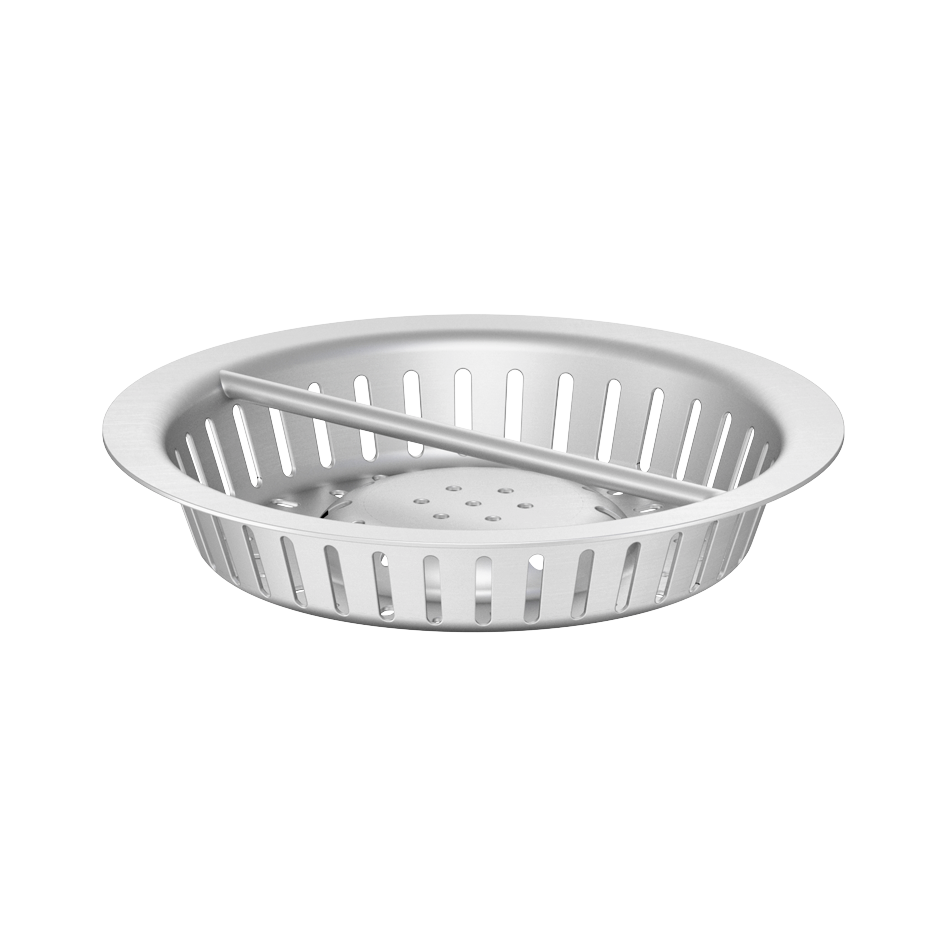

ACO Easy FAT

Suitable for

ACO gully 157 telescopic
ACO box channels with outlet øD 142 mm and outer width above and including 300 mm
ACO modular box channel 200 - outlet øD 142 mm
ACO modular slot channel 20 - outlet øD 142 mm

Description

Features and Benefits:

Simplified and separate handling with FAT and silt basket
Fully removable and easily cleanable
Steel thickness min. 1,2 mm
Fully pickled and passivated
Fully tested and classified according to EN 1253-1

Attributes:

With silt basket
Flow rate with horizontal gully: 2,1 l/s
Flow rate with vertical gully: 2,4 l/s
Material grade 1.4404 (316L)

Item no.
449128

ACO tundish portable

Suitable for

ACO drainage independent of visible edge dimensions

Description

Stainless steel
Material grade 1.4301 (304)

Item no.
415821
