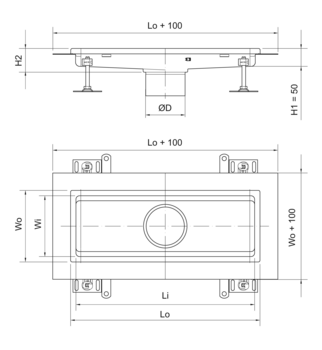

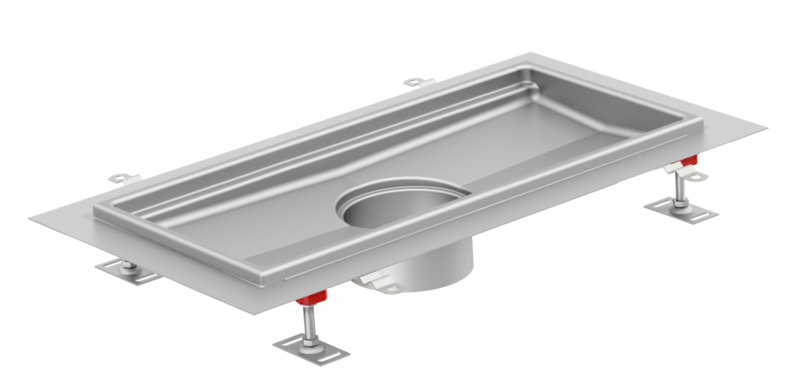

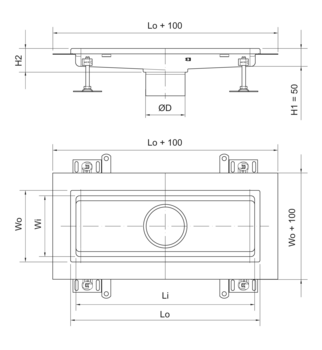

ACO hygienic box channel - extended edge
Product benefits
- ACO hygienic drainage developed under HygieneFirst philosophy fulfils strongest hygienic requirements and applies relevant hygienic design principles reserved for food processing equipment.
- Fully inspectable and cleanable
- Full drainability
- Internal radii equal or larger than 3 mm
- Minimal longitudinal slope 1%
- Minimal sectional slope 5°
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated
Product information
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Certified according to EN 1253-1
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Outlet diameter 125, 142 or 200 mm
- V-shape bottom for width up to 300 mm, reinforced bottom for width above and including 400 mm
- Adjustable EasyFix levelling feet
- Anchors for fixing in concrete
- Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
- Silt basket available as accessory
ACO weldless ladder grating
ACO frameless ladder grating
ACO hygienic ladder grating, slip-resistant
ACO hygienic ladder grating, plain
ACO hygienic slot cover
ACO mesh grating, slip-resistant
ACO mesh grating, plain
ACO perforated grating
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.6 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.6 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4301
- Silt basket included
- Weight: 0.7 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4404
- Silt basket included
- Weight: 0.7 kg
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4301 (304)
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4404 (316L)
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 200 mm
- ACO vinyl box channels, width 170 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 300 mm
- ACO vinyl box channels, width 270 mm
- ACO modular box channel 270
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 400 mm
- ACO vinyl box channels, width 370 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 500 mm
- ACO vinyl box channels, width 470 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 600 mm
- ACO vinyl box channels, width 570 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 800 mm
- ACO vinyl box channels, width 770 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
Silt basket
Suitable for
- ACO gully 142 - Telescopic
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
- Outlet øD [mm]: 125
- Direction of gully outlet: vertical, horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,4 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 - Telescopic
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
- Outlet øD [mm]: 125
- Direction of gully outlet: vertical, horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,4 litre capacity
- Material grade 1.4404 (316L)
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1 kg
Silt basket
Suitable for
- ACO gully 142 - Fixed height
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: welded with ACO hygienic gully 142
- Direction of gully outlet: vertical, horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 - Fixed height
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: welded with ACO hygienic gully 142
- Direction of gully outlet: vertical, horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
Compatible only with Easy FAT 142
- 448810
- 448811
Description
- Material grade: 1.4301
Silt basket
Suitable for
Compatible only with Easy FAT 142
- 448810
- 448811
Description
- Material grade: 1.4404
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 414740 (1.4301)
- 414840 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 414740 (1.4301)
- 414840 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 1.4 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 1.4 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.9 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.9 kg
Silt basket
Suitable for
Compatible only with Easy FAT 200
- 449685
- 449687
Description
- Material grade 1.4301 (304)
Silt basket
Suitable for
Compatible only with Easy FAT 200
- 449685
- 449687
Description
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical
Description
Stainless steel
- 1,4 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical
Description
Stainless steel
- 1,4 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4404 (316L)
ACO weldless ladder grating
ACO frameless ladder grating
ACO hygienic ladder grating, slip-resistant
ACO hygienic ladder grating, plain
ACO hygienic slot cover
ACO mesh grating, slip-resistant
ACO mesh grating, plain
ACO perforated grating
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.6 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.6 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4301
- Silt basket included
- Weight: 0.7 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4404
- Silt basket included
- Weight: 0.7 kg
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4301 (304)
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4404 (316L)
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 200 mm
- ACO vinyl box channels, width 170 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 300 mm
- ACO vinyl box channels, width 270 mm
- ACO modular box channel 270
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 400 mm
- ACO vinyl box channels, width 370 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 500 mm
- ACO vinyl box channels, width 470 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 600 mm
- ACO vinyl box channels, width 570 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 800 mm
- ACO vinyl box channels, width 770 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
Silt basket
Suitable for
- ACO gully 142 - Telescopic
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
- Outlet øD [mm]: 125
- Direction of gully outlet: vertical, horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,4 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 - Telescopic
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200, 300, 400 ,500, 600 ,800
- Outlet øD [mm]: 125
- Direction of gully outlet: vertical, horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,4 litre capacity
- Material grade 1.4404 (316L)
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1 kg
Silt basket
Suitable for
- ACO gully 142 - Fixed height
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: welded with ACO hygienic gully 142
- Direction of gully outlet: vertical, horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 - Fixed height
- Vertical or horizontal
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 200
- Outlet øD [mm]: 142
- Direction of gully outlet: horizontal
- Width Wo [mm]: 200
- Outlet øD [mm]: welded with ACO hygienic gully 142
- Direction of gully outlet: vertical, horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
Compatible only with Easy FAT 142
- 448810
- 448811
Description
- Material grade: 1.4301
Silt basket
Suitable for
Compatible only with Easy FAT 142
- 448810
- 448811
Description
- Material grade: 1.4404
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 414740 (1.4301)
- 414840 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 414740 (1.4301)
- 414840 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
ACO Easy FAT 142
Suitable for
- ACO gully tops for ACO gully 157 - top section outlet øD 142 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 142 mm and outer channel width above and including 300 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 142 mm
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 1.4 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 1.4 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.9 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.9 kg
Silt basket
Suitable for
Compatible only with Easy FAT 200
- 449685
- 449687
Description
- Material grade 1.4301 (304)
Silt basket
Suitable for
Compatible only with Easy FAT 200
- 449685
- 449687
Description
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical
Description
Stainless steel
- 1,4 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO hygienic gully 218 - Vertical
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: vertical
Description
Stainless steel
- 1,4 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO hygienic gully 218 - Horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 200 or welded with ACO hygienic gully 218
- Direction of gully outlet: horizontal
Description
Stainless steel
- 0,7 litre capacity
- Material grade 1.4404 (316L)
