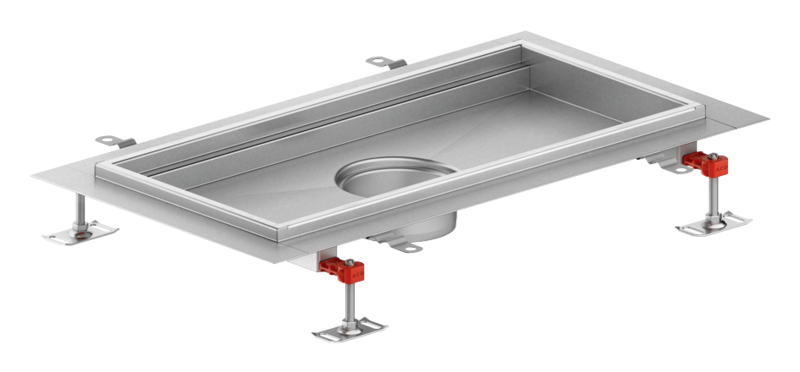

ACO commercial box channel - extended edge
Product benefits
- Fully compliant to EN 1253
- Full drainability to ensure hygienic cleaning
- Fully pickle passivated to restore corrosion resistance and optimum durability
- Steel thickness min 1.5 mm
- Rubber edge infill to provide additional strength in dense traffic areas
- EasyFix®Clips for quick, easy and precise height adjustment during installation
- Chamfered spigot outlets provide easy push-fit connection
- ACO protective cover available
- Silt basket collects debris effectively
Product information
ACO frameless ladder grating
ACO hygienic ladder grating, slip-resistant
ACO hygienic ladder grating, plain
ACO hygienic slot cover
ACO mesh grating, slip-resistant
ACO mesh grating, plain
ACO perforated grating
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.6 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.6 kg
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4301
- Silt basket included
- Weight: 0.7 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4404
- Silt basket included
- Weight: 0.7 kg
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4301 (304)
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4404 (316L)
ACO frameless ladder grating
ACO hygienic ladder grating, slip-resistant
ACO hygienic ladder grating, plain
ACO hygienic slot cover
ACO mesh grating, slip-resistant
ACO mesh grating, plain
ACO perforated grating
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Optional compatible silt baskets:
- 416902 (1.4301)
- 416903 (1.4404)
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.15 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.8 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1 kg
ACO Easy FAT 142 narrow
Suitable for
- ACO box channels - top section outlet øD 142 mm and outer channel width 200 mm (ACO vinyl box channels not supported)
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.1 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.6 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Optional compatible silt baskets:
- 449960 (1.4301)
- 449961 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 1.2 l/s
- Maximum flow rate with vertical gully: 1.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.6 kg
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4301
- Silt basket included
- Weight: 0.7 kg
ACO Easy FAT 125
Suitable for
- ACO gully tops for ACO gully 142 - top section outlet øD 125 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 125 mm (ACO vinyl box channels not supported)
- ACO modular channels - top section outlet øD 125 mm
Description
Replacement sealing ring:
- 450021
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 0.8 l/s
- Maximum flow rate with vertical gully: 0.8 l/s
- Material: 1.4404
- Silt basket included
- Weight: 0.7 kg
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4301 (304)
Silt basket
Suitable for
Compatible only with Easy FAT 125
- 449677
- 449679
Description
- Material grade 1.4404 (316L)
