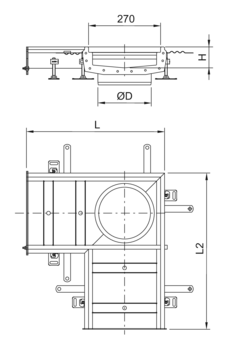

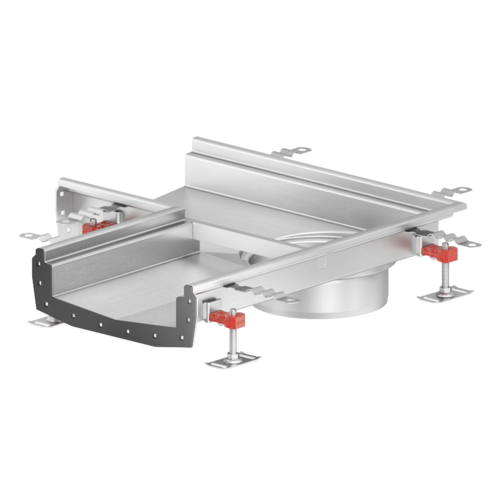

Corner unit with outlet
Product benefits
- V-profile bottom design
- Enhanced flow efficiency at low flow rates
- Improved self-cleaning performance
- Adjustable EasyFix levelling feet
Product information
- Certified according to EN 1253-1 and EN 1433
- Steel thickness min. 1,5 mm
- Fully welded hygienic joints
- Fully pickled and passivated
- Edge infill
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Wide range of gratings including slip resistant solution
- Silt basket and foul air trap (FAT) available as accessory
- Anchors for fixing in concrete
- Type 1: ACO box channel - standard type - gully with adhesive bonding flange
- Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
Typ 2: ACO box channel - gully with mechanical clamping flange
Tiled floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concret floor slab
- 8 Compacted soil
Typ 3: ACO box channel - gully with location flange
Resin floor
- 1 Epoxy / resin floor
- 2 Floor screed
- 3 Rubber infill
- 4 Solid concrete floor slab
- 5 Compacted soil
Typ 4: ACO box channel - vinyl type - gully with location flange
Vinyl floor
- 1 Vinyl floor
- 2 Vinyl seal
- 3 Floor screed
- 4 Solid concrete floor slab
- 5 Compacted soil
ACO frameless ladder grating
ACO hygienic ladder grating, slip-resistant
ACO hygienic ladder grating, plain
ACO mesh grating, slip-resistant
ACO mesh grating, plain
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 1.4 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Optional compatible silt baskets:
- 449962 (1.4301)
- 449963 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 4.2 l/s
- Maximum flow rate with vertical gully: 6.2 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 1.4 kg
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.9 kg
ACO Easy FAT 200
Suitable for
- ACO gully tops for ACO gully 200 - top section outlet øD 200 mm (not compatible with gully tops with edge for vinyl floor)
- ACO box channels - top section outlet øD 200 mm and outer channel width above and including 300 mm (ACO vinyl box channels not included)
- ACO modular channels - top section outlet øD 200 mm
Description
Replacement sealing ring:
- 98403
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 3.6 l/s
- Maximum flow rate with vertical gully: 4.2 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.9 kg
Silt basket
Suitable for
Compatible only with Easy FAT 200
- 449685
- 449687
Description
- Material grade 1.4301 (304)
Silt basket
Suitable for
Compatible only with Easy FAT 200
- 449685
- 449687
Description
- Material grade 1.4404 (316L)
EasyFix stabilizing set
Suitable for
- ACO hygienic and commercial box channels, width 300 mm
- ACO vinyl box channels, width 270 mm
- ACO modular box channel 270
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
