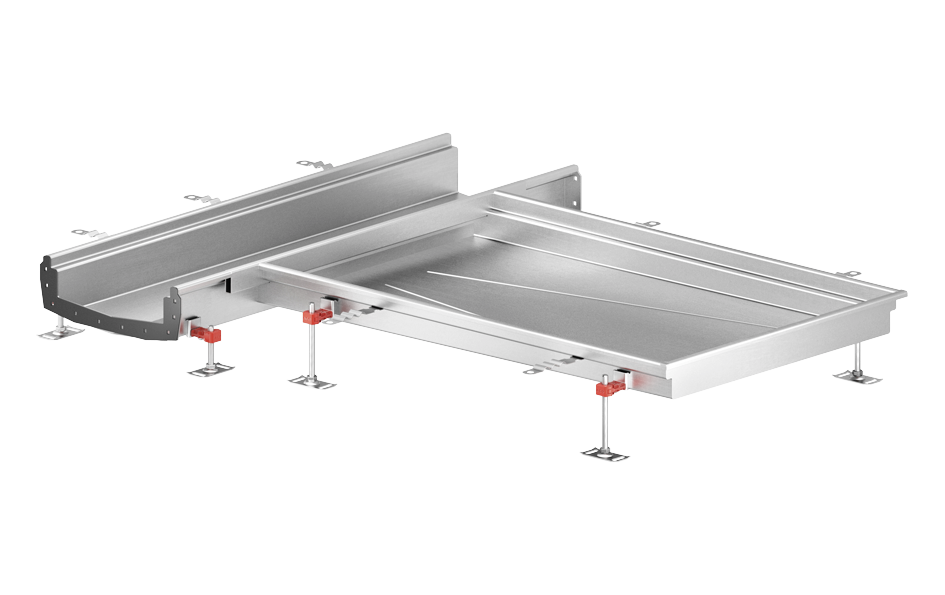

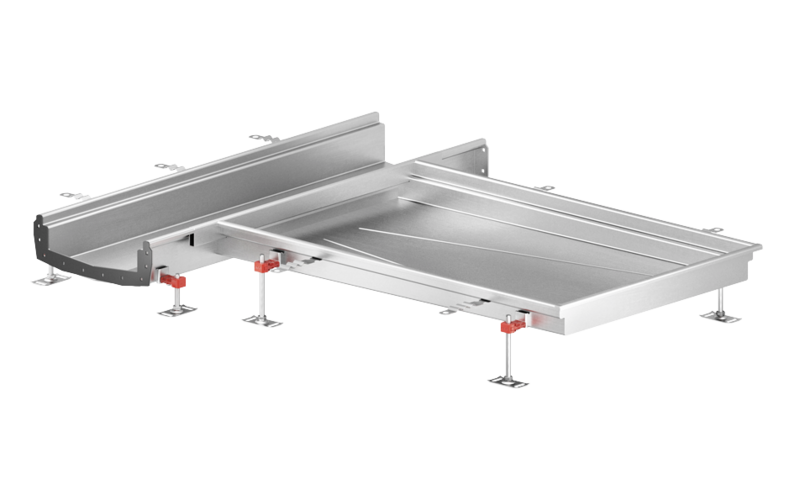

Discharge channel

Product benefits

  • V-profile bottom design
    • Enhanced flow efficiency at low flow rates
    • Improved self-cleaning performance
  • Adjustable EasyFix levelling feet

Product information

  • Certified according to EN 1253-1 and EN 1433
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Wide range of gratings including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Anchors for fixing in concrete

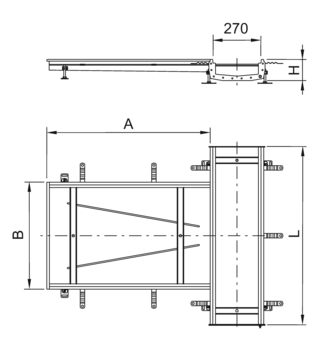

DimensionsMaterialItem

number
Remember
LHAB
[mm][mm][mm][mm]
1000959006001.4301448720
1.4404448719
1109006001.4301448722
1.4404448721
1259006001.4301448724
1.4404448723
1409006001.4301448726
1.4404448725
1559006001.4301448728
1.4404448727
1709006001.4301448730
1.4404448729
DimensionsMaterialItem

number
LH
1000 mm95 mm1.4301448720
1000 mm95 mm1.4404448719
1000 mm110 mm1.4301448722
1000 mm110 mm1.4404448721
1000 mm125 mm1.4301448724
1000 mm125 mm1.4404448723
1000 mm140 mm1.4301448726
1000 mm140 mm1.4404448725
1000 mm155 mm1.4301448728
1000 mm155 mm1.4404448727
1000 mm170 mm1.4301448730
1000 mm170 mm1.4404448729
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

EasyFix stabilizing set

Suitable for
  • ACO hygienic and commercial box channels, width 300 mm
  • ACO vinyl box channels, width 270 mm
  • ACO modular box channel 270
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
