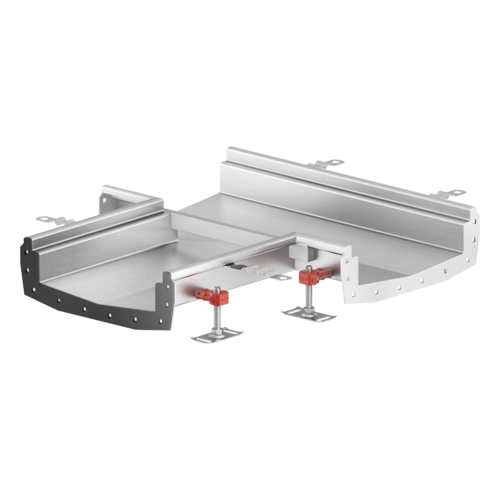

Branch unit

Product benefits

  • V-profile bottom design
    • Enhanced flow efficiency at low flow rates
    • Improved self-cleaning performance
  • Adjustable EasyFix levelling feet

Product information

  • Certified according to EN 1253-1 and EN 1433
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Wide range of gratings including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Anchors for fixing in concrete

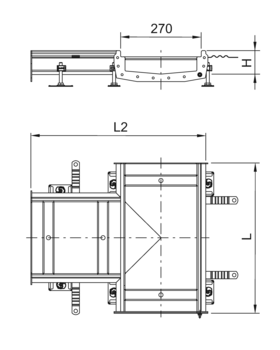

DimensionsMaterialItem

number
Remember
LL2H
[mm][mm][mm]
500585501.4301448777
1.4404448776
801.4301448779
1.4404448778
1101.4301448781
1.4404448780
1401.4301448783
1.4404448782
DimensionsMaterialItem

number
LL2H
500 mm585 mm50 mm1.4301448777
500 mm585 mm50 mm1.4404448776
500 mm585 mm80 mm1.4301448779
500 mm585 mm80 mm1.4404448778
500 mm585 mm110 mm1.4301448781
500 mm585 mm110 mm1.4404448780
500 mm585 mm140 mm1.4301448783
500 mm585 mm140 mm1.4404448782
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

EasyFix stabilizing set

Suitable for
  • ACO hygienic and commercial box channels, width 300 mm
  • ACO vinyl box channels, width 270 mm
  • ACO modular box channel 270
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
