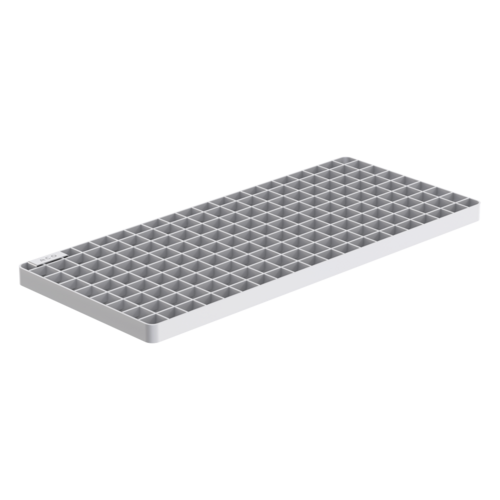

ACO mesh grating, plain

Product benefits

Fully electropolished

Product information

Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Available for load class L 15
Available for all standard ACO box channel widths
Hygienic design is not applied for this product

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)	Slip-resistance	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
168 x 499	20	20	L 15	A 15	Without slip resistance	1.4301	449792
168 x 499	20	20	L 15	A 15	Without slip resistance	1.4404	449793
168 x 399	20	20	L 15	A 15	Without slip resistance	1.4301	449804
168 x 399	20	20	L 15	A 15	Without slip resistance	1.4404	449805
168 x 999	20	20	L 15	A 15	Without slip resistance	1.4301	449812
168 x 999	20	20	L 15	A 15	Without slip resistance	1.4404	449813
168 x 499	20	30	R 50	A 15	Without slip resistance	1.4301	416880
168 x 499	20	30	R 50	A 15	Without slip resistance	1.4404	416881
168 x 399	20	30	R 50	A 15	Without slip resistance	1.4301	416882
168 x 399	20	30	R 50	A 15	Without slip resistance	1.4404	416883
168 x 999	20	30	R 50	A 15	Without slip resistance	1.4301	413145
168 x 999	20	30	R 50	A 15	Without slip resistance	1.4404	449815
168 x 499	20	30	R 50	B 125	Without slip resistance	1.4301	449794
168 x 499	20	30	R 50	B 125	Without slip resistance	1.4404	449795
168 x 399	20	30	R 50	B 125	Without slip resistance	1.4301	449806
168 x 399	20	30	R 50	B 125	Without slip resistance	1.4404	449807
168 x 999	20	30	R 50	B 125	Without slip resistance	1.4301	449818
168 x 999	20	30	R 50	B 125	Without slip resistance	1.4404	449819
168 x 499	20	40	M 125	C 250	Without slip resistance	1.4301	449796
168 x 499	20	40	M 125	C 250	Without slip resistance	1.4404	449797
168 x 399	20	40	M 125	C 250	Without slip resistance	1.4301	449808
168 x 399	20	40	M 125	C 250	Without slip resistance	1.4404	449809
168 x 999	20	40	M 125	C 250	Without slip resistance	1.4301	449822
168 x 999	20	40	M 125	C 250	Without slip resistance	1.4404	449823
268 x 298	20	30	L 15	A 15	Without slip resistance	1.4301	416884
268 x 298	20	30	L 15	A 15	Without slip resistance	1.4404	416885
268 x 499	20	30	L 15	A 15	Without slip resistance	1.4301	416886
268 x 499	20	30	L 15	A 15	Without slip resistance	1.4404	416887
268 x 999	20	30	L 15	A 15	Without slip resistance	1.4301	413146
268 x 999	20	30	L 15	A 15	Without slip resistance	1.4404	449858
268 x 499	20	40	M 125	B 125	Without slip resistance	1.4301	449976
268 x 499	20	40	M 125	B 125	Without slip resistance	1.4404	449977
368 x 499	30	30	L 15	A 15	Without slip resistance	1.4301	416858
368 x 499	30	30	L 15	A 15	Without slip resistance	1.4404	416859
368 x 398	30	30	L 15	A 15	Without slip resistance	1.4301	416888
368 x 398	30	30	L 15	A 15	Without slip resistance	1.4404	416889
368 x 598	30	30	L 15	A 15	Without slip resistance	1.4301	416890
368 x 598	30	30	L 15	A 15	Without slip resistance	1.4404	416891
468 x 499	30	30	L 15	A 15	Without slip resistance	1.4301	416892
468 x 499	30	30	L 15	A 15	Without slip resistance	1.4404	416893
468 x 398	30	30	L 15	A 15	Without slip resistance	1.4301	416894
468 x 398	30	30	L 15	A 15	Without slip resistance	1.4404	416895
568 x 299	30	30	L 15		Without slip resistance	1.4301	416896
568 x 299	30	30	L 15		Without slip resistance	1.4404	416897
568 x 499	30	30	L 15		Without slip resistance	1.4301	413149

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)		Material	Item number
Size	Frame height (E)	Bar height (G)	Load class (EN 1253)	Load class (EN 1433)		Material	Item number
168 x 499 mm	20 mm	20 mm	L 15	A 15	Without slip resistance	1.4301	449792
168 x 499 mm	20 mm	20 mm	L 15	A 15	Without slip resistance	1.4404	449793
168 x 399 mm	20 mm	20 mm	L 15	A 15	Without slip resistance	1.4301	449804
168 x 399 mm	20 mm	20 mm	L 15	A 15	Without slip resistance	1.4404	449805
168 x 999 mm	20 mm	20 mm	L 15	A 15	Without slip resistance	1.4301	449812
168 x 999 mm	20 mm	20 mm	L 15	A 15	Without slip resistance	1.4404	449813
168 x 499 mm	20 mm	30 mm	R 50	A 15	Without slip resistance	1.4301	416880
168 x 499 mm	20 mm	30 mm	R 50	A 15	Without slip resistance	1.4404	416881
168 x 399 mm	20 mm	30 mm	R 50	A 15	Without slip resistance	1.4301	416882
168 x 399 mm	20 mm	30 mm	R 50	A 15	Without slip resistance	1.4404	416883
168 x 999 mm	20 mm	30 mm	R 50	A 15	Without slip resistance	1.4301	413145
168 x 999 mm	20 mm	30 mm	R 50	A 15	Without slip resistance	1.4404	449815
168 x 499 mm	20 mm	30 mm	R 50	B 125	Without slip resistance	1.4301	449794
168 x 499 mm	20 mm	30 mm	R 50	B 125	Without slip resistance	1.4404	449795
168 x 399 mm	20 mm	30 mm	R 50	B 125	Without slip resistance	1.4301	449806
168 x 399 mm	20 mm	30 mm	R 50	B 125	Without slip resistance	1.4404	449807
168 x 999 mm	20 mm	30 mm	R 50	B 125	Without slip resistance	1.4301	449818
168 x 999 mm	20 mm	30 mm	R 50	B 125	Without slip resistance	1.4404	449819
168 x 499 mm	20 mm	40 mm	M 125	C 250	Without slip resistance	1.4301	449796
168 x 499 mm	20 mm	40 mm	M 125	C 250	Without slip resistance	1.4404	449797
168 x 399 mm	20 mm	40 mm	M 125	C 250	Without slip resistance	1.4301	449808
168 x 399 mm	20 mm	40 mm	M 125	C 250	Without slip resistance	1.4404	449809
168 x 999 mm	20 mm	40 mm	M 125	C 250	Without slip resistance	1.4301	449822
168 x 999 mm	20 mm	40 mm	M 125	C 250	Without slip resistance	1.4404	449823
268 x 298 mm	20 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	416884
268 x 298 mm	20 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	416885
268 x 499 mm	20 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	416886
268 x 499 mm	20 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	416887
268 x 999 mm	20 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	413146
268 x 999 mm	20 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	449858
268 x 499 mm	20 mm	40 mm	M 125	B 125	Without slip resistance	1.4301	449976
268 x 499 mm	20 mm	40 mm	M 125	B 125	Without slip resistance	1.4404	449977
368 x 499 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	416858
368 x 499 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	416859
368 x 398 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	416888
368 x 398 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	416889
368 x 598 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	416890
368 x 598 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	416891
468 x 499 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	416892
468 x 499 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	416893
468 x 398 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4301	416894
468 x 398 mm	30 mm	30 mm	L 15	A 15	Without slip resistance	1.4404	416895
568 x 299 mm	30 mm	30 mm	L 15		Without slip resistance	1.4301	416896
568 x 299 mm	30 mm	30 mm	L 15		Without slip resistance	1.4404	416897
568 x 499 mm	30 mm	30 mm	L 15		Without slip resistance	1.4301	413149
