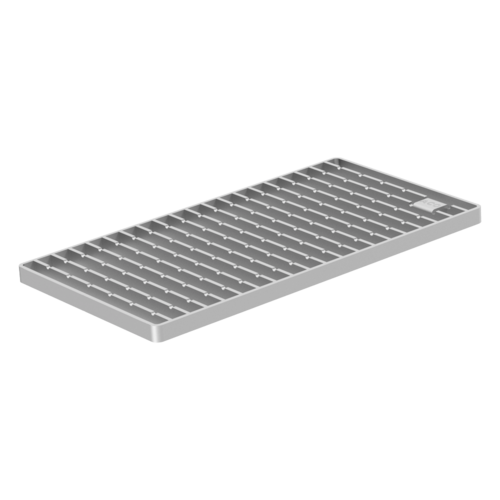

ACO hygienic ladder grating, slip-resistant

Product benefits

Fully inspectable and cleanable
Full drainability
Internal radii equal or larger than 3 mm
Fully welded hygienic joints
Fully electropolished

Product information

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Slip resistance R11 (DIN 51130)
Available for load classes R 50, M 125 or N 250
Available for all standard ACO box channel widths. See the cladding table for amount of gratings needed to fill specific channel

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)	Slip-resistance	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
168 x 499	20	20	R 50	A 15	Slip resistant	1.4301	416802
168 x 499	20	20	R 50	A 15	Slip resistant	1.4404	416803
168 x 398	20	20	R 50	A 15	Slip resistant	1.4301	416808
168 x 398	20	20	R 50	A 15	Slip resistant	1.4404	416809
168 x 999	20	20	R 50	A 15	Slip resistant	1.4301	445948
168 x 999	20	20	R 50	A 15	Slip resistant	1.4404	445949
168 x 499	20	20	M 125	B 125	Slip resistant	1.4301	449079
168 x 499	20	20	M 125	B 125	Slip resistant	1.4404	449824
168 x 399	20	20	M 125	B 125	Slip resistant	1.4301	449833
168 x 399	20	20	M 125	B 125	Slip resistant	1.4404	449834
168 x 999	20	20	M 125	B 125	Slip resistant	1.4301	449837
168 x 999	20	20	M 125	B 125	Slip resistant	1.4404	449838
168 x 499	20	30	M 125	C 250	Slip resistant	1.4301	416804
168 x 499	20	30	M 125	C 250	Slip resistant	1.4404	416805
168 x 398	20	30	M 125	C 250	Slip resistant	1.4301	416810
168 x 398	20	30	M 125	C 250	Slip resistant	1.4404	416811
168 x 999	20	30	M 125	C 250	Slip resistant	1.4301	445950
168 x 999	20	30	M 125	C 250	Slip resistant	1.4404	445951
168 x 499	20	30	N 250	D 400	Slip resistant	1.4301	416844
168 x 499	20	30	N 250	D 400	Slip resistant	1.4404	416845
168 x 398	20	30	N 250	D 400	Slip resistant	1.4301	416846
168 x 398	20	30	N 250	D 400	Slip resistant	1.4404	416847
168 x 499	20	30	P 400	D 400	Slip resistant	1.4301	446386
168 x 499	20	30	P 400	D 400	Slip resistant	1.4404	446388
268 x 298	20	20	R 50	A 15	Slip resistant	1.4301	416812
268 x 298	20	20	R 50	A 15	Slip resistant	1.4404	416813
268 x 499	20	20	R 50	A 15	Slip resistant	1.4301	416814
268 x 499	20	20	R 50	A 15	Slip resistant	1.4404	416815
268 x 999	20	20	R 50	A 15	Slip resistant	1.4301	445952
268 x 999	20	20	R 50	A 15	Slip resistant	1.4404	445953
268 x 298	20	30	M 125	B 125	Slip resistant	1.4301	416816
268 x 298	20	30	M 125	B 125	Slip resistant	1.4404	416817
268 x 499	20	30	M 125	B 125	Slip resistant	1.4301	416818
268 x 499	20	30	M 125	B 125	Slip resistant	1.4404	416819
268 x 999	20	30	M 125	B 125	Slip resistant	1.4301	445954
268 x 999	20	30	M 125	B 125	Slip resistant	1.4404	445955
268 x 499	20	30	N 250	B 125	Slip resistant	1.4301	416848
268 x 499	20	30	N 250	B 125	Slip resistant	1.4404	416849
268 x 298	20	30	N 250	B 125	Slip resistant	1.4301	416850
268 x 298	20	30	N 250	B 125	Slip resistant	1.4404	416851
268 x 499	20	30	N 250	C 250	Slip resistant	1.4301	449082
268 x 499	20	30	N 250	C 250	Slip resistant	1.4404	449859
268 x 298	20	30	N 250	C 250	Slip resistant	1.4301	449860
268 x 298	20	30	N 250	C 250	Slip resistant	1.4404	449861
268 x 499	20	30	P 400	D 400	Slip resistant	1.4301	446390
268 x 499	20	30	P 400	D 400	Slip resistant	1.4404	446392
268 x 298	20	30	P 400	D 400	Slip resistant	1.4301	449862
268 x 298	20	30	P 400	D 400	Slip resistant	1.4404	449863
368 x 398	30	30	R 50	A 15	Slip resistant	1.4301	416820
368 x 398	30	30	R 50	A 15	Slip resistant	1.4404	416821
368 x 598	30	30	R 50	A 15	Slip resistant	1.4301	416822
368 x 598	30	30	R 50	A 15	Slip resistant	1.4404	416823
368 x 398	30	30	M 125	A 15	Slip resistant	1.4301	416824
368 x 398	30	30	M 125	A 15	Slip resistant	1.4404	416825
368 x 598	30	30	M 125	A 15	Slip resistant	1.4301	416826
368 x 598	30	30	M 125	A 15	Slip resistant	1.4404	416827
368 x 499	30	30	N 250	B 125	Slip resistant	1.4301	449085
368 x 499	30	30	N 250	B 125	Slip resistant	1.4404	449900
368 x 398	30	30	N 250	B 125	Slip resistant	1.4301	449901
368 x 398	30	30	N 250	B 125	Slip resistant	1.4404	449902
368 x 598	30	30	N 250	B 125	Slip resistant	1.4301	449903
368 x 598	30	30	N 250	B 125	Slip resistant	1.4404	449904
368 x 499	30	40	P 400	C 250	Slip resistant	1.4301	449086
368 x 499	30	40	P 400	C 250	Slip resistant	1.4404	449905
368 x 398	30	40	P 400	C 250	Slip resistant	1.4301	449906
368 x 398	30	40	P 400	C 250	Slip resistant	1.4404	449907
368 x 598	30	40	P 400	C 250	Slip resistant	1.4301	449908
368 x 598	30	40	P 400	C 250	Slip resistant	1.4404	449909
368 x 499	30	40	P 400	D 400	Slip resistant	1.4301	449087
368 x 499	30	40	P 400	D 400	Slip resistant	1.4404	449910
368 x 398	30	40	P 400	D 400	Slip resistant	1.4301	449911
368 x 398	30	40	P 400	D 400	Slip resistant	1.4404	449912
368 x 598	30	40	P 400	D 400	Slip resistant	1.4301	449913
368 x 598	30	40	P 400	D 400	Slip resistant	1.4404	449914
468 x 499	30	30	L 15		Slip resistant	1.4301	449924
468 x 499	30	30	L 15		Slip resistant	1.4404	449925
468 x 398	30	30	L 15		Slip resistant	1.4301	449926
468 x 398	30	30	L 15		Slip resistant	1.4404	449927
468 x 499	30	30	R 50	A 15	Slip resistant	1.4301	416828
468 x 499	30	30	R 50	A 15	Slip resistant	1.4404	416829
468 x 398	30	30	R 50	A 15	Slip resistant	1.4301	416830
468 x 398	30	30	R 50	A 15	Slip resistant	1.4404	416831
468 x 499	30	30	M 125	A 15	Slip resistant	1.4301	416832
468 x 499	30	30	M 125	A 15	Slip resistant	1.4404	416833
468 x 398	30	30	M 125	A 15	Slip resistant	1.4301	416834
468 x 398	30	30	M 125	A 15	Slip resistant	1.4404	416835
468 x 499	30	30	N 250	A 15	Slip resistant	1.4301	449178
468 x 499	30	30	N 250	A 15	Slip resistant	1.4404	449921
468 x 398	30	30	N 250	A 15	Slip resistant	1.4301	449922
468 x 398	30	30	N 250	A 15	Slip resistant	1.4404	449923
568 x 298	30	30	L 15		Slip resistant	1.4301	416836
			L 15		Slip resistant	1.4404	416837
			R 50	A 15	Slip resistant	1.4301	416838
			R 50	A 15	Slip resistant	1.4404	416839
			M 125	A 15	Slip resistant	1.4301	449179
			M 125	A 15	Slip resistant	1.4404	449928
568 x 499	30	40	M 125	B 125	Slip resistant	1.4301	449092
568 x 499	30	40	M 125	B 125	Slip resistant	1.4404	449929
768 x 398	30	30	L 15		Slip resistant	1.4301	416842
768 x 398	30	30	L 15		Slip resistant	1.4404	416843

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)		Material	Item number
Size	Frame height (E)	Bar height (G)	Load class (EN 1253)	Load class (EN 1433)		Material	Item number
168 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416802
168 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416803
168 x 398 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416808
168 x 398 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416809
168 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	445948
168 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	445949
168 x 499 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4301	449079
168 x 499 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4404	449824
168 x 399 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4301	449833
168 x 399 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4404	449834
168 x 999 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4301	449837
168 x 999 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4404	449838
168 x 499 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4301	416804
168 x 499 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4404	416805
168 x 398 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4301	416810
168 x 398 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4404	416811
168 x 999 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4301	445950
168 x 999 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4404	445951
168 x 499 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4301	416844
168 x 499 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4404	416845
168 x 398 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4301	416846
168 x 398 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4404	416847
168 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4301	446386
168 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4404	446388
268 x 298 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416812
268 x 298 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416813
268 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416814
268 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416815
268 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	445952
268 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	445953
268 x 298 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4301	416816
268 x 298 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4404	416817
268 x 499 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4301	416818
268 x 499 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4404	416819
268 x 999 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4301	445954
268 x 999 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4404	445955
268 x 499 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4301	416848
268 x 499 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4404	416849
268 x 298 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4301	416850
268 x 298 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4404	416851
268 x 499 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4301	449082
268 x 499 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4404	449859
268 x 298 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4301	449860
268 x 298 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4404	449861
268 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4301	446390
268 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4404	446392
268 x 298 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4301	449862
268 x 298 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4404	449863
368 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416820
368 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416821
368 x 598 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416822
368 x 598 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416823
368 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416824
368 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416825
368 x 598 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416826
368 x 598 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416827
368 x 499 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4301	449085
368 x 499 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4404	449900
368 x 398 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4301	449901
368 x 398 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4404	449902
368 x 598 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4301	449903
368 x 598 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4404	449904
368 x 499 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4301	449086
368 x 499 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4404	449905
368 x 398 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4301	449906
368 x 398 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4404	449907
368 x 598 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4301	449908
368 x 598 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4404	449909
368 x 499 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4301	449087
368 x 499 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4404	449910
368 x 398 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4301	449911
368 x 398 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4404	449912
368 x 598 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4301	449913
368 x 598 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4404	449914
468 x 499 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	449924
468 x 499 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	449925
468 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	449926
468 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	449927
468 x 499 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416828
468 x 499 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416829
468 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416830
468 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416831
468 x 499 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416832
468 x 499 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416833
468 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416834
468 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416835
468 x 499 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4301	449178
468 x 499 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4404	449921
468 x 398 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4301	449922
468 x 398 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4404	449923
568 x 298 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	416836
568 x 298 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	416837
568 x 298 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416838
568 x 298 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416839
568 x 298 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	449179
568 x 298 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	449928
568 x 499 mm	30 mm	40 mm	M 125	B 125	Slip resistant	1.4301	449092
568 x 499 mm	30 mm	40 mm	M 125	B 125	Slip resistant	1.4404	449929
768 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	416842
768 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	416843

ACO hygienic box channel - standard edge

ACO hygienic box channel - extended edge

ACO vinyl box channel - standard size

ACO commercial box channel - standard edge

ACO commercial box channel - extended edge

Corner unit with outlet

Level invert channel

Branch unit with ACO gully 218 - fixed height

Corner unit with ACO gully 218 - fixed height

Discharge channel with ACO gully 218 - fixed height

Centre outlet

Corner unit

Branch unit with outlet

Discharge channel

Sloping invert channel

Branch unit

Centre outlet with ACO gully 218 - fixed height

ACO commercial box channel - Fixed height

ACO hygienic box channel, customized

ACO industrial box channel, customized

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)	Slip-resistance	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
168 x 499	20	20	R 50	A 15	Slip resistant	1.4301	416802
168 x 499	20	20	R 50	A 15	Slip resistant	1.4404	416803
168 x 398	20	20	R 50	A 15	Slip resistant	1.4301	416808
168 x 398	20	20	R 50	A 15	Slip resistant	1.4404	416809
168 x 999	20	20	R 50	A 15	Slip resistant	1.4301	445948
168 x 999	20	20	R 50	A 15	Slip resistant	1.4404	445949
168 x 499	20	20	M 125	B 125	Slip resistant	1.4301	449079
168 x 499	20	20	M 125	B 125	Slip resistant	1.4404	449824
168 x 399	20	20	M 125	B 125	Slip resistant	1.4301	449833
168 x 399	20	20	M 125	B 125	Slip resistant	1.4404	449834
168 x 999	20	20	M 125	B 125	Slip resistant	1.4301	449837
168 x 999	20	20	M 125	B 125	Slip resistant	1.4404	449838
168 x 499	20	30	M 125	C 250	Slip resistant	1.4301	416804
168 x 499	20	30	M 125	C 250	Slip resistant	1.4404	416805
168 x 398	20	30	M 125	C 250	Slip resistant	1.4301	416810
168 x 398	20	30	M 125	C 250	Slip resistant	1.4404	416811
168 x 999	20	30	M 125	C 250	Slip resistant	1.4301	445950
168 x 999	20	30	M 125	C 250	Slip resistant	1.4404	445951
168 x 499	20	30	N 250	D 400	Slip resistant	1.4301	416844
168 x 499	20	30	N 250	D 400	Slip resistant	1.4404	416845
168 x 398	20	30	N 250	D 400	Slip resistant	1.4301	416846
168 x 398	20	30	N 250	D 400	Slip resistant	1.4404	416847
168 x 499	20	30	P 400	D 400	Slip resistant	1.4301	446386
168 x 499	20	30	P 400	D 400	Slip resistant	1.4404	446388
268 x 298	20	20	R 50	A 15	Slip resistant	1.4301	416812
268 x 298	20	20	R 50	A 15	Slip resistant	1.4404	416813
268 x 499	20	20	R 50	A 15	Slip resistant	1.4301	416814
268 x 499	20	20	R 50	A 15	Slip resistant	1.4404	416815
268 x 999	20	20	R 50	A 15	Slip resistant	1.4301	445952
268 x 999	20	20	R 50	A 15	Slip resistant	1.4404	445953
268 x 298	20	30	M 125	B 125	Slip resistant	1.4301	416816
268 x 298	20	30	M 125	B 125	Slip resistant	1.4404	416817
268 x 499	20	30	M 125	B 125	Slip resistant	1.4301	416818
268 x 499	20	30	M 125	B 125	Slip resistant	1.4404	416819
268 x 999	20	30	M 125	B 125	Slip resistant	1.4301	445954
268 x 999	20	30	M 125	B 125	Slip resistant	1.4404	445955
268 x 499	20	30	N 250	B 125	Slip resistant	1.4301	416848
268 x 499	20	30	N 250	B 125	Slip resistant	1.4404	416849
268 x 298	20	30	N 250	B 125	Slip resistant	1.4301	416850
268 x 298	20	30	N 250	B 125	Slip resistant	1.4404	416851
268 x 499	20	30	N 250	C 250	Slip resistant	1.4301	449082
268 x 499	20	30	N 250	C 250	Slip resistant	1.4404	449859
268 x 298	20	30	N 250	C 250	Slip resistant	1.4301	449860
268 x 298	20	30	N 250	C 250	Slip resistant	1.4404	449861
268 x 499	20	30	P 400	D 400	Slip resistant	1.4301	446390
268 x 499	20	30	P 400	D 400	Slip resistant	1.4404	446392
268 x 298	20	30	P 400	D 400	Slip resistant	1.4301	449862
268 x 298	20	30	P 400	D 400	Slip resistant	1.4404	449863
368 x 398	30	30	R 50	A 15	Slip resistant	1.4301	416820
368 x 398	30	30	R 50	A 15	Slip resistant	1.4404	416821
368 x 598	30	30	R 50	A 15	Slip resistant	1.4301	416822
368 x 598	30	30	R 50	A 15	Slip resistant	1.4404	416823
368 x 398	30	30	M 125	A 15	Slip resistant	1.4301	416824
368 x 398	30	30	M 125	A 15	Slip resistant	1.4404	416825
368 x 598	30	30	M 125	A 15	Slip resistant	1.4301	416826
368 x 598	30	30	M 125	A 15	Slip resistant	1.4404	416827
368 x 499	30	30	N 250	B 125	Slip resistant	1.4301	449085
368 x 499	30	30	N 250	B 125	Slip resistant	1.4404	449900
368 x 398	30	30	N 250	B 125	Slip resistant	1.4301	449901
368 x 398	30	30	N 250	B 125	Slip resistant	1.4404	449902
368 x 598	30	30	N 250	B 125	Slip resistant	1.4301	449903
368 x 598	30	30	N 250	B 125	Slip resistant	1.4404	449904
368 x 499	30	40	P 400	C 250	Slip resistant	1.4301	449086
368 x 499	30	40	P 400	C 250	Slip resistant	1.4404	449905
368 x 398	30	40	P 400	C 250	Slip resistant	1.4301	449906
368 x 398	30	40	P 400	C 250	Slip resistant	1.4404	449907
368 x 598	30	40	P 400	C 250	Slip resistant	1.4301	449908
368 x 598	30	40	P 400	C 250	Slip resistant	1.4404	449909
368 x 499	30	40	P 400	D 400	Slip resistant	1.4301	449087
368 x 499	30	40	P 400	D 400	Slip resistant	1.4404	449910
368 x 398	30	40	P 400	D 400	Slip resistant	1.4301	449911
368 x 398	30	40	P 400	D 400	Slip resistant	1.4404	449912
368 x 598	30	40	P 400	D 400	Slip resistant	1.4301	449913
368 x 598	30	40	P 400	D 400	Slip resistant	1.4404	449914
468 x 499	30	30	L 15		Slip resistant	1.4301	449924
468 x 499	30	30	L 15		Slip resistant	1.4404	449925
468 x 398	30	30	L 15		Slip resistant	1.4301	449926
468 x 398	30	30	L 15		Slip resistant	1.4404	449927
468 x 499	30	30	R 50	A 15	Slip resistant	1.4301	416828
468 x 499	30	30	R 50	A 15	Slip resistant	1.4404	416829
468 x 398	30	30	R 50	A 15	Slip resistant	1.4301	416830
468 x 398	30	30	R 50	A 15	Slip resistant	1.4404	416831
468 x 499	30	30	M 125	A 15	Slip resistant	1.4301	416832
468 x 499	30	30	M 125	A 15	Slip resistant	1.4404	416833
468 x 398	30	30	M 125	A 15	Slip resistant	1.4301	416834
468 x 398	30	30	M 125	A 15	Slip resistant	1.4404	416835
468 x 499	30	30	N 250	A 15	Slip resistant	1.4301	449178
468 x 499	30	30	N 250	A 15	Slip resistant	1.4404	449921
468 x 398	30	30	N 250	A 15	Slip resistant	1.4301	449922
468 x 398	30	30	N 250	A 15	Slip resistant	1.4404	449923
568 x 298	30	30	L 15		Slip resistant	1.4301	416836
			L 15		Slip resistant	1.4404	416837
			R 50	A 15	Slip resistant	1.4301	416838
			R 50	A 15	Slip resistant	1.4404	416839
			M 125	A 15	Slip resistant	1.4301	449179
			M 125	A 15	Slip resistant	1.4404	449928
568 x 499	30	40	M 125	B 125	Slip resistant	1.4301	449092
568 x 499	30	40	M 125	B 125	Slip resistant	1.4404	449929
768 x 398	30	30	L 15		Slip resistant	1.4301	416842
768 x 398	30	30	L 15		Slip resistant	1.4404	416843

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)		Material	Item number
Size	Frame height (E)	Bar height (G)	Load class (EN 1253)	Load class (EN 1433)		Material	Item number
168 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416802
168 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416803
168 x 398 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416808
168 x 398 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416809
168 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	445948
168 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	445949
168 x 499 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4301	449079
168 x 499 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4404	449824
168 x 399 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4301	449833
168 x 399 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4404	449834
168 x 999 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4301	449837
168 x 999 mm	20 mm	20 mm	M 125	B 125	Slip resistant	1.4404	449838
168 x 499 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4301	416804
168 x 499 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4404	416805
168 x 398 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4301	416810
168 x 398 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4404	416811
168 x 999 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4301	445950
168 x 999 mm	20 mm	30 mm	M 125	C 250	Slip resistant	1.4404	445951
168 x 499 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4301	416844
168 x 499 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4404	416845
168 x 398 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4301	416846
168 x 398 mm	20 mm	30 mm	N 250	D 400	Slip resistant	1.4404	416847
168 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4301	446386
168 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4404	446388
268 x 298 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416812
268 x 298 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416813
268 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	416814
268 x 499 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	416815
268 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4301	445952
268 x 999 mm	20 mm	20 mm	R 50	A 15	Slip resistant	1.4404	445953
268 x 298 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4301	416816
268 x 298 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4404	416817
268 x 499 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4301	416818
268 x 499 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4404	416819
268 x 999 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4301	445954
268 x 999 mm	20 mm	30 mm	M 125	B 125	Slip resistant	1.4404	445955
268 x 499 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4301	416848
268 x 499 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4404	416849
268 x 298 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4301	416850
268 x 298 mm	20 mm	30 mm	N 250	B 125	Slip resistant	1.4404	416851
268 x 499 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4301	449082
268 x 499 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4404	449859
268 x 298 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4301	449860
268 x 298 mm	20 mm	30 mm	N 250	C 250	Slip resistant	1.4404	449861
268 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4301	446390
268 x 499 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4404	446392
268 x 298 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4301	449862
268 x 298 mm	20 mm	30 mm	P 400	D 400	Slip resistant	1.4404	449863
368 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416820
368 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416821
368 x 598 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416822
368 x 598 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416823
368 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416824
368 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416825
368 x 598 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416826
368 x 598 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416827
368 x 499 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4301	449085
368 x 499 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4404	449900
368 x 398 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4301	449901
368 x 398 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4404	449902
368 x 598 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4301	449903
368 x 598 mm	30 mm	30 mm	N 250	B 125	Slip resistant	1.4404	449904
368 x 499 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4301	449086
368 x 499 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4404	449905
368 x 398 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4301	449906
368 x 398 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4404	449907
368 x 598 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4301	449908
368 x 598 mm	30 mm	40 mm	P 400	C 250	Slip resistant	1.4404	449909
368 x 499 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4301	449087
368 x 499 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4404	449910
368 x 398 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4301	449911
368 x 398 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4404	449912
368 x 598 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4301	449913
368 x 598 mm	30 mm	40 mm	P 400	D 400	Slip resistant	1.4404	449914
468 x 499 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	449924
468 x 499 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	449925
468 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	449926
468 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	449927
468 x 499 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416828
468 x 499 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416829
468 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416830
468 x 398 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416831
468 x 499 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416832
468 x 499 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416833
468 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	416834
468 x 398 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	416835
468 x 499 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4301	449178
468 x 499 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4404	449921
468 x 398 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4301	449922
468 x 398 mm	30 mm	30 mm	N 250	A 15	Slip resistant	1.4404	449923
568 x 298 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	416836
568 x 298 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	416837
568 x 298 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4301	416838
568 x 298 mm	30 mm	30 mm	R 50	A 15	Slip resistant	1.4404	416839
568 x 298 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4301	449179
568 x 298 mm	30 mm	30 mm	M 125	A 15	Slip resistant	1.4404	449928
568 x 499 mm	30 mm	40 mm	M 125	B 125	Slip resistant	1.4301	449092
568 x 499 mm	30 mm	40 mm	M 125	B 125	Slip resistant	1.4404	449929
768 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4301	416842
768 x 398 mm	30 mm	30 mm	L 15		Slip resistant	1.4404	416843
