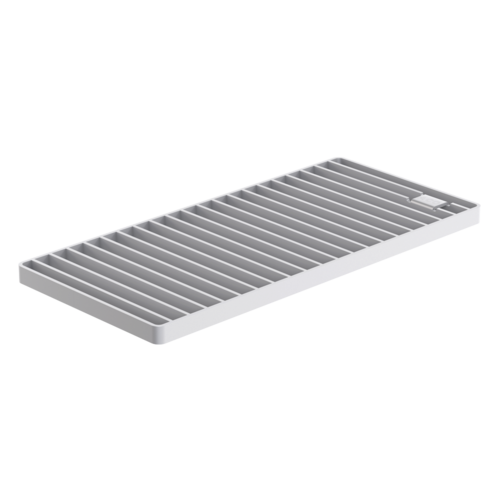

ACO hygienic ladder grating, plain

Product benefits

Fully inspectable and cleanable
Full drainability
Internal radii equal or larger than 3 mm
Fully welded hygienic joints
Fully electropolished

Product information

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Available for all standard ACO box channel widths

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)	Slip-resistance	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
168 x 499	20	20	R 50	A 15	Without slip resistance	1.4301	449829
168 x 499	20	20	R 50	A 15	Without slip resistance	1.4404	449830
168 x 399	20	20	R 50	A 15	Without slip resistance	1.4301	449827
168 x 399	20	20	R 50	A 15	Without slip resistance	1.4404	449828
168 x 999	20	20	R 50	A 15	Without slip resistance	1.4301	449831
168 x 999	20	20	R 50	A 15	Without slip resistance	1.4404	449832
168 x 499	20	20	M 125	B 125	Without slip resistance	1.4301	449825
168 x 499	20	20	M 125	B 125	Without slip resistance	1.4404	449826
168 x 399	20	20	M 125	B 125	Without slip resistance	1.4301	449835
168 x 399	20	20	M 125	B 125	Without slip resistance	1.4404	449836
168 x 999	20	20	M 125	B 125	Without slip resistance	1.4301	449839
168 x 999	20	20	M 125	B 125	Without slip resistance	1.4404	449840
168 x 499	20	30	M 125	C 250	Without slip resistance	1.4301	449843
168 x 499	20	30	M 125	C 250	Without slip resistance	1.4404	449844
168 x 399	20	30	M 125	C 250	Without slip resistance	1.4301	449841
168 x 399	20	30	M 125	C 250	Without slip resistance	1.4404	449842
168 x 999	20	30	M 125	C 250	Without slip resistance	1.4301	449845
168 x 999	20	30	M 125	C 250	Without slip resistance	1.4404	449846
168 x 499	20	30	N 250	D 400	Without slip resistance	1.4301	449849
168 x 499	20	30	N 250	D 400	Without slip resistance	1.4404	449850
168 x 399	20	30	N 250	D 400	Without slip resistance	1.4301	449847
168 x 399	20	30	N 250	D 400	Without slip resistance	1.4404	449848
168 x 499	20	30	P 400	D 400	Without slip resistance	1.4301	446387
168 x 499	20	30	P 400	D 400	Without slip resistance	1.4404	446389
268 x 499	20	30	P 400	D 400	Without slip resistance	1.4301	446391
268 x 499	20	30	P 400	D 400	Without slip resistance	1.4404	446393

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)		Material	Item number
Size	Frame height (E)	Bar height (G)	Load class (EN 1253)	Load class (EN 1433)		Material	Item number
168 x 499 mm	20 mm	20 mm	R 50	A 15	Without slip resistance	1.4301	449829
168 x 499 mm	20 mm	20 mm	R 50	A 15	Without slip resistance	1.4404	449830
168 x 399 mm	20 mm	20 mm	R 50	A 15	Without slip resistance	1.4301	449827
168 x 399 mm	20 mm	20 mm	R 50	A 15	Without slip resistance	1.4404	449828
168 x 999 mm	20 mm	20 mm	R 50	A 15	Without slip resistance	1.4301	449831
168 x 999 mm	20 mm	20 mm	R 50	A 15	Without slip resistance	1.4404	449832
168 x 499 mm	20 mm	20 mm	M 125	B 125	Without slip resistance	1.4301	449825
168 x 499 mm	20 mm	20 mm	M 125	B 125	Without slip resistance	1.4404	449826
168 x 399 mm	20 mm	20 mm	M 125	B 125	Without slip resistance	1.4301	449835
168 x 399 mm	20 mm	20 mm	M 125	B 125	Without slip resistance	1.4404	449836
168 x 999 mm	20 mm	20 mm	M 125	B 125	Without slip resistance	1.4301	449839
168 x 999 mm	20 mm	20 mm	M 125	B 125	Without slip resistance	1.4404	449840
168 x 499 mm	20 mm	30 mm	M 125	C 250	Without slip resistance	1.4301	449843
168 x 499 mm	20 mm	30 mm	M 125	C 250	Without slip resistance	1.4404	449844
168 x 399 mm	20 mm	30 mm	M 125	C 250	Without slip resistance	1.4301	449841
168 x 399 mm	20 mm	30 mm	M 125	C 250	Without slip resistance	1.4404	449842
168 x 999 mm	20 mm	30 mm	M 125	C 250	Without slip resistance	1.4301	449845
168 x 999 mm	20 mm	30 mm	M 125	C 250	Without slip resistance	1.4404	449846
168 x 499 mm	20 mm	30 mm	N 250	D 400	Without slip resistance	1.4301	449849
168 x 499 mm	20 mm	30 mm	N 250	D 400	Without slip resistance	1.4404	449850
168 x 399 mm	20 mm	30 mm	N 250	D 400	Without slip resistance	1.4301	449847
168 x 399 mm	20 mm	30 mm	N 250	D 400	Without slip resistance	1.4404	449848
168 x 499 mm	20 mm	30 mm	P 400	D 400	Without slip resistance	1.4301	446387
168 x 499 mm	20 mm	30 mm	P 400	D 400	Without slip resistance	1.4404	446389
268 x 499 mm	20 mm	30 mm	P 400	D 400	Without slip resistance	1.4301	446391
268 x 499 mm	20 mm	30 mm	P 400	D 400	Without slip resistance	1.4404	446393
