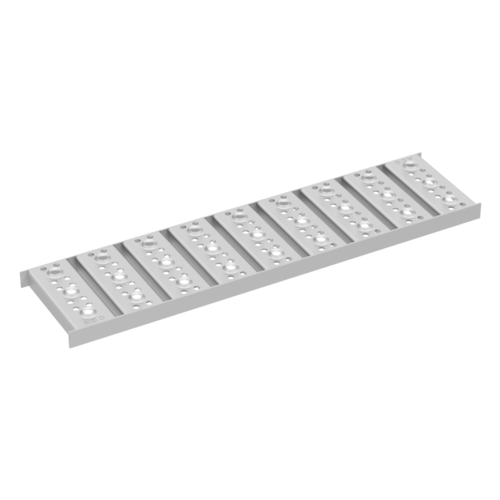

multi - slot 8 grating

Product information

Certified according to EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Available for load classes A 15, B 125 or C 250
Hygienic design is not applied for this product

	Grating dimensions	Class	Material	Item number	Downloads	Remember
	Size
	[mm]
Slip resistant	123 x 499	A 15	1.4301	415739
Slip resistant	123 x 499	A 15	1.4404	415740
Slip resistant	123 x 499	B 125	1.4301	415747
Slip resistant	123 x 499	B 125	1.4404	415748
Slip resistant	123 x 499	C 250	1.4301	415753
Slip resistant	123 x 499	C 250	1.4404	415754
Slip resistant	123 x 999	A 15	1.4301	415735
Slip resistant	123 x 999	A 15	1.4404	415736
Slip resistant	123 x 999	B 125	1.4301	415743
Slip resistant	123 x 999	B 125	1.4404	415744
Slip resistant	123 x 999	C 250	1.4301	415751
Slip resistant	123 x 999	C 250	1.4404	415752

	Grating dimensions	Class	Material	Item number
	Size	Class	Material	Item number
Slip resistant	123 x 499 mm	A 15	1.4301	415739
Slip resistant	123 x 499 mm	A 15	1.4404	415740
Slip resistant	123 x 499 mm	B 125	1.4301	415747
Slip resistant	123 x 499 mm	B 125	1.4404	415748
Slip resistant	123 x 499 mm	C 250	1.4301	415753
Slip resistant	123 x 499 mm	C 250	1.4404	415754
Slip resistant	123 x 999 mm	A 15	1.4301	415735
Slip resistant	123 x 999 mm	A 15	1.4404	415736
Slip resistant	123 x 999 mm	B 125	1.4301	415743
Slip resistant	123 x 999 mm	B 125	1.4404	415744
Slip resistant	123 x 999 mm	C 250	1.4301	415751
Slip resistant	123 x 999 mm	C 250	1.4404	415752

Level invert channel

Level invert channel

Sloping invert channel

Sloping invert channel

Corner unit

Corner unit

Branch unit

Branch unit

End outlet

End outlet

Centre outlet

Centre outlet

End plate with 50 mm outlet

End plate with 50 mm outlet

End cap

End cap

Seal rubber

Seal rubber
