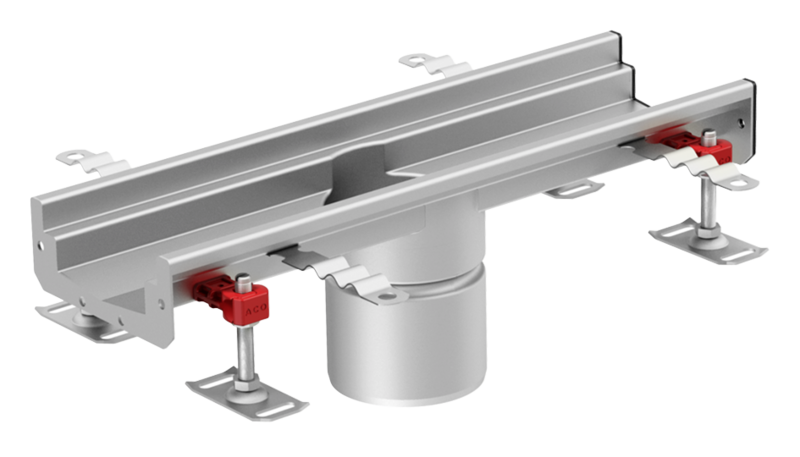

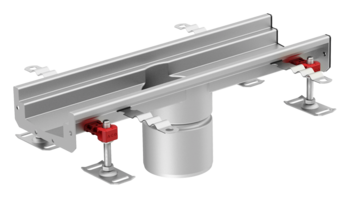

Centre outlet

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Certified according to EN 1253-1 and EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Steel thickness min. 1,5 mm
- Fully welded hygienic joints
- Fully pickled and passivated
- Edge infill
V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
- Outlet diameters 110, 125 and 142 mm
Adjustable EasyFix levelling feet
Anchors for fixing in concrete
Wide range of gratings for load class A 15, B 125 or C 250 (EN 1433) including slip resistant solution
Silt basket and foul air trap (FAT) available as accessory

Dimensions			Material	Item number
L	H	D
[mm]	[mm]	[mm]
500	50	110	1.4301	105191
	50	110	1.4404	407263
	65	110	1.4301	105192
	65	110	1.4404	407264
	80	110	1.4301	105193
	80	110	1.4404	407265
	95	110	1.4301	105194
	95	110	1.4404	407266
	110	110	1.4301	105195
	110	110	1.4404	407267
	125	110	1.4301	105196
	125	110	1.4404	407268
1000	50	110	1.4301	105199
	50	110	1.4404	407269
	65	110	1.4301	105200
	65	110	1.4404	407270
	80	110	1.4301	105201
	80	110	1.4404	407271
	95	110	1.4301	105202
	95	110	1.4404	407272
	110	110	1.4301	105203
	110	110	1.4404	407273
	125	110	1.4301	105204
	125	110	1.4404	407274
500	50	125	1.4301	415958
	50	125	1.4404	416003
	65	125	1.4301	415959
	65	125	1.4404	416004
	80	125	1.4301	415960
	80	125	1.4404	416005
	95	125	1.4301	415961
	95	125	1.4404	416006
	110	125	1.4301	415962
	110	125	1.4404	416007
	125	125	1.4301	415963
	125	125	1.4404	416008
1000	50	125	1.4301	415964
	50	125	1.4404	416009
	65	125	1.4301	415965
	65	125	1.4404	416010
	80	125	1.4301	415966
	80	125	1.4404	416011
	95	125	1.4301	415967
	95	125	1.4404	416012
	110	125	1.4301	415968
	110	125	1.4404	416013
	125	125	1.4301	415969
	125	125	1.4404	416014
500	50	142	1.4301	409734
	50	142	1.4404	409735
	65	142	1.4301	409738
	65	142	1.4404	409739
	80	142	1.4301	409742
	80	142	1.4404	409743
	95	142	1.4301	409746
	95	142	1.4404	409747
	110	142	1.4301	409726
	110	142	1.4404	409727
	125	142	1.4301	409730
	125	142	1.4404	409731
1000	50	142	1.4301	409710
	50	142	1.4404	409711
	65	142	1.4301	409714
	65	142	1.4404	409715
	80	142	1.4301	409718
	80	142	1.4404	409719
	95	142	1.4301	409722
	95	142	1.4404	409723
	110	142	1.4301	409702
	110	142	1.4404	409703
	125	142	1.4301	409706
	125	142	1.4404	409707

Dimensions			Material	Item number
L	H	D	Material	Item number
500 mm	50 mm	110 mm	1.4301	105191
500 mm	50 mm	110 mm	1.4404	407263
500 mm	65 mm	110 mm	1.4301	105192
500 mm	65 mm	110 mm	1.4404	407264
500 mm	80 mm	110 mm	1.4301	105193
500 mm	80 mm	110 mm	1.4404	407265
500 mm	95 mm	110 mm	1.4301	105194
500 mm	95 mm	110 mm	1.4404	407266
500 mm	110 mm	110 mm	1.4301	105195
500 mm	110 mm	110 mm	1.4404	407267
500 mm	125 mm	110 mm	1.4301	105196
500 mm	125 mm	110 mm	1.4404	407268
1000 mm	50 mm	110 mm	1.4301	105199
1000 mm	50 mm	110 mm	1.4404	407269
1000 mm	65 mm	110 mm	1.4301	105200
1000 mm	65 mm	110 mm	1.4404	407270
1000 mm	80 mm	110 mm	1.4301	105201
1000 mm	80 mm	110 mm	1.4404	407271
1000 mm	95 mm	110 mm	1.4301	105202
1000 mm	95 mm	110 mm	1.4404	407272
1000 mm	110 mm	110 mm	1.4301	105203
1000 mm	110 mm	110 mm	1.4404	407273
1000 mm	125 mm	110 mm	1.4301	105204
1000 mm	125 mm	110 mm	1.4404	407274
500 mm	50 mm	125 mm	1.4301	415958
500 mm	50 mm	125 mm	1.4404	416003
500 mm	65 mm	125 mm	1.4301	415959
500 mm	65 mm	125 mm	1.4404	416004
500 mm	80 mm	125 mm	1.4301	415960
500 mm	80 mm	125 mm	1.4404	416005
500 mm	95 mm	125 mm	1.4301	415961
500 mm	95 mm	125 mm	1.4404	416006
500 mm	110 mm	125 mm	1.4301	415962
500 mm	110 mm	125 mm	1.4404	416007
500 mm	125 mm	125 mm	1.4301	415963
500 mm	125 mm	125 mm	1.4404	416008
1000 mm	50 mm	125 mm	1.4301	415964
1000 mm	50 mm	125 mm	1.4404	416009
1000 mm	65 mm	125 mm	1.4301	415965
1000 mm	65 mm	125 mm	1.4404	416010
1000 mm	80 mm	125 mm	1.4301	415966
1000 mm	80 mm	125 mm	1.4404	416011
1000 mm	95 mm	125 mm	1.4301	415967
1000 mm	95 mm	125 mm	1.4404	416012
1000 mm	110 mm	125 mm	1.4301	415968
1000 mm	110 mm	125 mm	1.4404	416013
1000 mm	125 mm	125 mm	1.4301	415969
1000 mm	125 mm	125 mm	1.4404	416014
500 mm	50 mm	142 mm	1.4301	409734
500 mm	50 mm	142 mm	1.4404	409735
500 mm	65 mm	142 mm	1.4301	409738
500 mm	65 mm	142 mm	1.4404	409739
500 mm	80 mm	142 mm	1.4301	409742
500 mm	80 mm	142 mm	1.4404	409743
500 mm	95 mm	142 mm	1.4301	409746
500 mm	95 mm	142 mm	1.4404	409747
500 mm	110 mm	142 mm	1.4301	409726
500 mm	110 mm	142 mm	1.4404	409727
500 mm	125 mm	142 mm	1.4301	409730
500 mm	125 mm	142 mm	1.4404	409731
1000 mm	50 mm	142 mm	1.4301	409710
1000 mm	50 mm	142 mm	1.4404	409711
1000 mm	65 mm	142 mm	1.4301	409714
1000 mm	65 mm	142 mm	1.4404	409715
1000 mm	80 mm	142 mm	1.4301	409718
1000 mm	80 mm	142 mm	1.4404	409719
1000 mm	95 mm	142 mm	1.4301	409722
1000 mm	95 mm	142 mm	1.4404	409723
1000 mm	110 mm	142 mm	1.4301	409702
1000 mm	110 mm	142 mm	1.4404	409703
1000 mm	125 mm	142 mm	1.4301	409706
1000 mm	125 mm	142 mm	1.4404	409707

Type 1: ACO box channel - standard type - gully with adhesive bonding flange
Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
