Seal rubber


Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
    • Outlet diameters 110, 125 and 142 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class A 15, B 125 or C 250 (EN 1433) including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
DimensionsMaterialItem

number
Remember

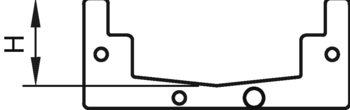

H
[mm]
50NBR (Perbunan)413587
65NBR (Perbunan)413588
80NBR (Perbunan)413589
95NBR (Perbunan)413590
110NBR (Perbunan)413591
125NBR (Perbunan)413592
DimensionsMaterialItem

number
H

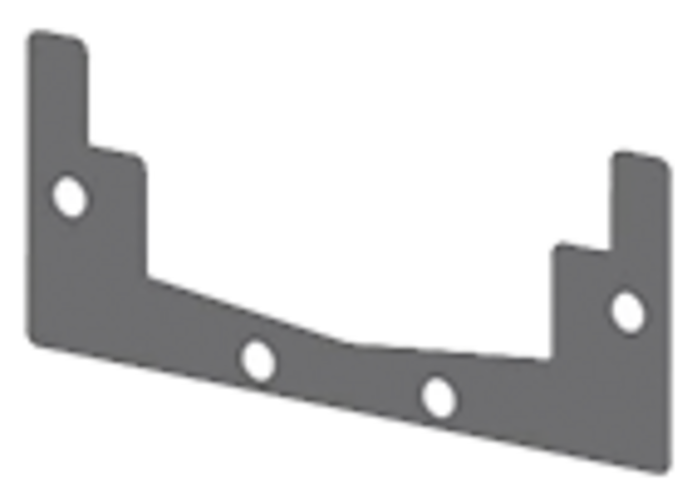

[[RESOURCEIM0008523.EPS]]50 mmNBR (Perbunan)413587
[[RESOURCEIM0010281.TIF]]65 mmNBR (Perbunan)413588
[[RESOURCEIM0010280.TIF]]80 mmNBR (Perbunan)413589
[[RESOURCEIM0025047.TIF]][[RESOURCEIM0010279.TIF]]95 mmNBR (Perbunan)413590
[[RESOURCEIM0010278.TIF]]110 mmNBR (Perbunan)413591
[[RESOURCEIM0010277.TIF]]125 mmNBR (Perbunan)413592
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

ACO tundish portable

Suitable for
  • ACO drainage independent of visible edge dimensions
Description
  • Stainless steel
  • Material grade 1.4301 (304)

EasyFix stabilizing set

Suitable for
  • ACO modular slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO hygienic and commercial box channels, widths 155, 180, 230 and 280 mm
  • ACO vinyl box channels, width 170 mm
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
