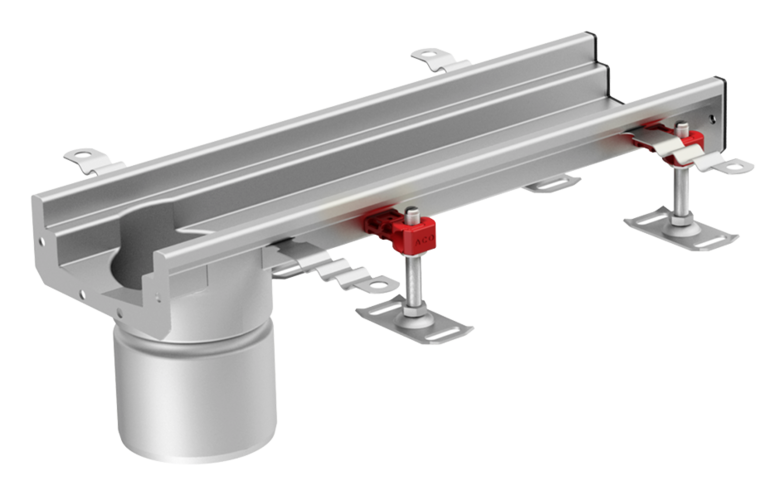

End outlet

Product information

BIM models are available in ACO Building Drainage BIM Revit libraries

Certified according to EN 1253-1 and EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Steel thickness min. 1,5 mm
- Fully welded hygienic joints
- Fully pickled and passivated
- Edge infill
V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
- Outlet diameters 110, 125 and 142 mm
Adjustable EasyFix levelling feet
Anchors for fixing in concrete
Wide range of gratings for load class A 15, B 125 or C 250 (EN 1433) including slip resistant solution
Silt basket and foul air trap (FAT) available as accessory

Dimensions			Material	Item number
L	H	D
[mm]	[mm]	[mm]
500	50	110	1.4301	105175
	50	110	1.4404	407251
	65	110	1.4301	105176
	65	110	1.4404	407252
	80	110	1.4301	105177
	80	110	1.4404	407253
	95	110	1.4301	105178
	95	110	1.4404	407254
	110	110	1.4301	105179
	110	110	1.4404	407255
	125	110	1.4301	105180
	125	110	1.4404	407256
1000	50	110	1.4301	105183
	50	110	1.4404	407257
	65	110	1.4301	105184
	65	110	1.4404	407258
	80	110	1.4301	105185
	80	110	1.4404	407259
	95	110	1.4301	105186
	95	110	1.4404	407260
	110	110	1.4301	105187
	110	110	1.4404	407261
	125	110	1.4301	105188
	125	110	1.4404	407262
500	50	125	1.4301	415946
	50	125	1.4404	415991
	65	125	1.4301	415941
	65	125	1.4404	415992
	80	125	1.4301	415948
	80	125	1.4404	415993
	95	125	1.4301	415949
	95	125	1.4404	415994
	110	125	1.4301	415950
	110	125	1.4404	415995
	125	125	1.4301	415951
	125	125	1.4404	415996
1000	50	125	1.4301	415952
	50	125	1.4404	415997
	65	125	1.4301	415953
	65	125	1.4404	415998
	80	125	1.4301	415954
	80	125	1.4404	415999
	95	125	1.4301	415955
	95	125	1.4404	416000
	110	125	1.4301	415956
	110	125	1.4404	416001
	125	125	1.4301	415957
	125	125	1.4404	416002
500	50	142	1.4301	409732
	50	142	1.4404	409733
	65	142	1.4301	409736
	65	142	1.4404	409737
	80	142	1.4301	409740
	80	142	1.4404	409741
	95	142	1.4301	409744
	95	142	1.4404	409745
	110	142	1.4301	409724
	110	142	1.4404	409725
	125	142	1.4301	409728
	125	142	1.4404	409729
1000	50	142	1.4301	409708
	50	142	1.4404	409709
	65	142	1.4301	409712
	65	142	1.4404	409713
	80	142	1.4301	409716
	80	142	1.4404	409717
	95	142	1.4301	409720
	95	142	1.4404	409721
	110	142	1.4301	409700
	110	142	1.4404	409701
	125	142	1.4301	409704
	125	142	1.4404	409705

Dimensions			Material	Item number
L	H	D	Material	Item number
500 mm	50 mm	110 mm	1.4301	105175
500 mm	50 mm	110 mm	1.4404	407251
500 mm	65 mm	110 mm	1.4301	105176
500 mm	65 mm	110 mm	1.4404	407252
500 mm	80 mm	110 mm	1.4301	105177
500 mm	80 mm	110 mm	1.4404	407253
500 mm	95 mm	110 mm	1.4301	105178
500 mm	95 mm	110 mm	1.4404	407254
500 mm	110 mm	110 mm	1.4301	105179
500 mm	110 mm	110 mm	1.4404	407255
500 mm	125 mm	110 mm	1.4301	105180
500 mm	125 mm	110 mm	1.4404	407256
1000 mm	50 mm	110 mm	1.4301	105183
1000 mm	50 mm	110 mm	1.4404	407257
1000 mm	65 mm	110 mm	1.4301	105184
1000 mm	65 mm	110 mm	1.4404	407258
1000 mm	80 mm	110 mm	1.4301	105185
1000 mm	80 mm	110 mm	1.4404	407259
1000 mm	95 mm	110 mm	1.4301	105186
1000 mm	95 mm	110 mm	1.4404	407260
1000 mm	110 mm	110 mm	1.4301	105187
1000 mm	110 mm	110 mm	1.4404	407261
1000 mm	125 mm	110 mm	1.4301	105188
1000 mm	125 mm	110 mm	1.4404	407262
500 mm	50 mm	125 mm	1.4301	415946
500 mm	50 mm	125 mm	1.4404	415991
500 mm	65 mm	125 mm	1.4301	415941
500 mm	65 mm	125 mm	1.4404	415992
500 mm	80 mm	125 mm	1.4301	415948
500 mm	80 mm	125 mm	1.4404	415993
500 mm	95 mm	125 mm	1.4301	415949
500 mm	95 mm	125 mm	1.4404	415994
500 mm	110 mm	125 mm	1.4301	415950
500 mm	110 mm	125 mm	1.4404	415995
500 mm	125 mm	125 mm	1.4301	415951
500 mm	125 mm	125 mm	1.4404	415996
1000 mm	50 mm	125 mm	1.4301	415952
1000 mm	50 mm	125 mm	1.4404	415997
1000 mm	65 mm	125 mm	1.4301	415953
1000 mm	65 mm	125 mm	1.4404	415998
1000 mm	80 mm	125 mm	1.4301	415954
1000 mm	80 mm	125 mm	1.4404	415999
1000 mm	95 mm	125 mm	1.4301	415955
1000 mm	95 mm	125 mm	1.4404	416000
1000 mm	110 mm	125 mm	1.4301	415956
1000 mm	110 mm	125 mm	1.4404	416001
1000 mm	125 mm	125 mm	1.4301	415957
1000 mm	125 mm	125 mm	1.4404	416002
500 mm	50 mm	142 mm	1.4301	409732
500 mm	50 mm	142 mm	1.4404	409733
500 mm	65 mm	142 mm	1.4301	409736
500 mm	65 mm	142 mm	1.4404	409737
500 mm	80 mm	142 mm	1.4301	409740
500 mm	80 mm	142 mm	1.4404	409741
500 mm	95 mm	142 mm	1.4301	409744
500 mm	95 mm	142 mm	1.4404	409745
500 mm	110 mm	142 mm	1.4301	409724
500 mm	110 mm	142 mm	1.4404	409725
500 mm	125 mm	142 mm	1.4301	409728
500 mm	125 mm	142 mm	1.4404	409729
1000 mm	50 mm	142 mm	1.4301	409708
1000 mm	50 mm	142 mm	1.4404	409709
1000 mm	65 mm	142 mm	1.4301	409712
1000 mm	65 mm	142 mm	1.4404	409713
1000 mm	80 mm	142 mm	1.4301	409716
1000 mm	80 mm	142 mm	1.4404	409717
1000 mm	95 mm	142 mm	1.4301	409720
1000 mm	95 mm	142 mm	1.4404	409721
1000 mm	110 mm	142 mm	1.4301	409700
1000 mm	110 mm	142 mm	1.4404	409701
1000 mm	125 mm	142 mm	1.4301	409704
1000 mm	125 mm	142 mm	1.4404	409705

Type 1: ACO box channel - standard type - gully with adhesive bonding flange
Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
