Level invert channel

Contact
Downloads

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
    • Outlet diameters 110, 125 and 142 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class A 15, B 125 or C 250 (EN 1433) including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory

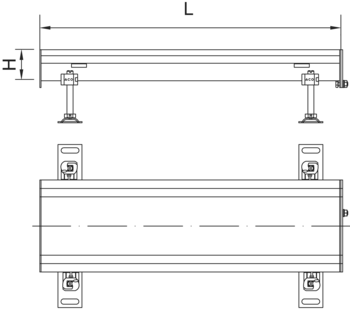

DimensionsMaterialItem

number		Remember
LH
[mm][mm]
500501.4301105119
1.4404407211
651.4301105120
1.4404407212
801.4301105121
1.4404407213
951.4301105122
1.4404407214
1101.4301105123
1.4404407215
1251.4301105124
1.4404407216
1000501.4301105127
1.4404407217
651.4301105128
1.4404407218
801.4301105129
1.4404407219
951.4301105130
1.4404407220
1101.4301105131
1.4404407221
1251.4301105132
1.4404407222
2000501.4301105135
1.4404407223
651.4301105136
1.4404407224
801.4301105137
1.4404407225
951.4301105138
1.4404407226
1101.4301105139
1.4404407227
1251.4301105140
1.4404407228
3000501.4301105143
1.4404407229
651.4301105144
1.4404407230
801.4301105145
1.4404407231
951.4301105146
1.4404407232
1101.4301105147
1.4404407233
1251.4301105148
1.4404407234
DimensionsMaterialItem

number
LH
500 mm50 mm1.4301105119
500 mm50 mm1.4404407211
500 mm65 mm1.4301105120
500 mm65 mm1.4404407212
500 mm80 mm1.4301105121
500 mm80 mm1.4404407213
500 mm95 mm1.4301105122
500 mm95 mm1.4404407214
500 mm110 mm1.4301105123
500 mm110 mm1.4404407215
500 mm125 mm1.4301105124
500 mm125 mm1.4404407216
1000 mm50 mm1.4301105127
1000 mm50 mm1.4404407217
1000 mm65 mm1.4301105128
1000 mm65 mm1.4404407218
1000 mm80 mm1.4301105129
1000 mm80 mm1.4404407219
1000 mm95 mm1.4301105130
1000 mm95 mm1.4404407220
1000 mm110 mm1.4301105131
1000 mm110 mm1.4404407221
1000 mm125 mm1.4301105132
1000 mm125 mm1.4404407222
2000 mm50 mm1.4301105135
2000 mm50 mm1.4404407223
2000 mm65 mm1.4301105136
2000 mm65 mm1.4404407224
2000 mm80 mm1.4301105137
2000 mm80 mm1.4404407225
2000 mm95 mm1.4301105138
2000 mm95 mm1.4404407226
2000 mm110 mm1.4301105139
2000 mm110 mm1.4404407227
2000 mm125 mm1.4301105140
2000 mm125 mm1.4404407228
3000 mm50 mm1.4301105143
3000 mm50 mm1.4404407229
3000 mm65 mm1.4301105144
3000 mm65 mm1.4404407230
3000 mm80 mm1.4301105145
3000 mm80 mm1.4404407231
3000 mm95 mm1.4301105146
3000 mm95 mm1.4404407232
3000 mm110 mm1.4301105147
3000 mm110 mm1.4404407233
3000 mm125 mm1.4301105148
3000 mm125 mm1.4404407234
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil
ACO frameless ladder grating

ACO frameless ladder grating

Mesh grating

Mesh grating

ACO ladder grating

ACO ladder grating

heelsafe grating

heelsafe grating

perforated grating

perforated grating

quadrato grating

quadrato grating

Plastic grating

Plastic grating

multi - slot 5 grating

multi - slot 5 grating

multi - slot 8 grating

multi - slot 8 grating

ACO hygienic slot cover

ACO hygienic slot cover

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301
Item no.
450648

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301
Item no.
450649

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)
Item no.
97217

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)
Item no.
97267

EasyFix stabilizing set

Suitable for
  • ACO modular slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO hygienic and commercial box channels, widths 155, 180, 230 and 280 mm
  • ACO vinyl box channels, width 170 mm
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.

Item no.
446512
