Sloping invert channel

Certified according to EN 1253-1 and EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Steel thickness min. 1,5 mm
- Fully welded hygienic joints
- Fully pickled and passivated
- Edge infill
V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
- Outlet diameters 110, 125 and 142 mm
Adjustable EasyFix levelling feet
Anchors for fixing in concrete
Wide range of gratings for load class A 15, B 125 or C 250 (EN 1433) including slip resistant solution
Silt basket and foul air trap (FAT) available as accessory

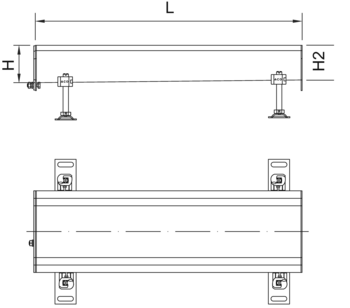

Dimensions			Material	Item number
L	H	H2
[mm]	[mm]	[mm]
500	50	65	1.4301	105151
	50	65	1.4404	407235
	65	80	1.4301	105152
	65	80	1.4404	407236
1000	50	65	1.4301	105155
	50	65	1.4404	407237
	65	80	1.4301	105156
	65	80	1.4404	407238
	80	95	1.4301	105157
	80	95	1.4404	407239
	95	110	1.4301	105158
	95	110	1.4404	407240
2000	50	65	1.4301	105161
	50	65	1.4404	407241
	65	80	1.4301	105162
	65	80	1.4404	407242
	80	95	1.4301	105163
	80	95	1.4404	407243
	95	110	1.4301	105164
	95	110	1.4404	407244
	110	125	1.4301	105165
	110	125	1.4404	407245
3000	50	65	1.4301	105168
	50	65	1.4404	407246
	65	80	1.4301	105169
	65	80	1.4404	407247
	80	95	1.4301	105170
	80	95	1.4404	407248
	95	110	1.4301	105171
	95	110	1.4404	407249
	110	125	1.4301	105172
	110	125	1.4404	407250
6000	50	80	1.4301	408821
	50	80	1.4404	408824
	65	95	1.4301	408822
	65	95	1.4404	408825
	95	125	1.4301	408823
	95	125	1.4404	408826

Dimensions			Material	Item number
L	H	H2	Material	Item number
500 mm	50 mm	65 mm	1.4301	105151
500 mm	50 mm	65 mm	1.4404	407235
500 mm	65 mm	80 mm	1.4301	105152
500 mm	65 mm	80 mm	1.4404	407236
1000 mm	50 mm	65 mm	1.4301	105155
1000 mm	50 mm	65 mm	1.4404	407237
1000 mm	65 mm	80 mm	1.4301	105156
1000 mm	65 mm	80 mm	1.4404	407238
1000 mm	80 mm	95 mm	1.4301	105157
1000 mm	80 mm	95 mm	1.4404	407239
1000 mm	95 mm	110 mm	1.4301	105158
1000 mm	95 mm	110 mm	1.4404	407240
2000 mm	50 mm	65 mm	1.4301	105161
2000 mm	50 mm	65 mm	1.4404	407241
2000 mm	65 mm	80 mm	1.4301	105162
2000 mm	65 mm	80 mm	1.4404	407242
2000 mm	80 mm	95 mm	1.4301	105163
2000 mm	80 mm	95 mm	1.4404	407243
2000 mm	95 mm	110 mm	1.4301	105164
2000 mm	95 mm	110 mm	1.4404	407244
2000 mm	110 mm	125 mm	1.4301	105165
2000 mm	110 mm	125 mm	1.4404	407245
3000 mm	50 mm	65 mm	1.4301	105168
3000 mm	50 mm	65 mm	1.4404	407246
3000 mm	65 mm	80 mm	1.4301	105169
3000 mm	65 mm	80 mm	1.4404	407247
3000 mm	80 mm	95 mm	1.4301	105170
3000 mm	80 mm	95 mm	1.4404	407248
3000 mm	95 mm	110 mm	1.4301	105171
3000 mm	95 mm	110 mm	1.4404	407249
3000 mm	110 mm	125 mm	1.4301	105172
3000 mm	110 mm	125 mm	1.4404	407250
6000 mm	50 mm	80 mm	1.4301	408821
6000 mm	50 mm	80 mm	1.4404	408824
6000 mm	65 mm	95 mm	1.4301	408822
6000 mm	65 mm	95 mm	1.4404	408825
6000 mm	95 mm	125 mm	1.4301	408823
6000 mm	95 mm	125 mm	1.4404	408826
