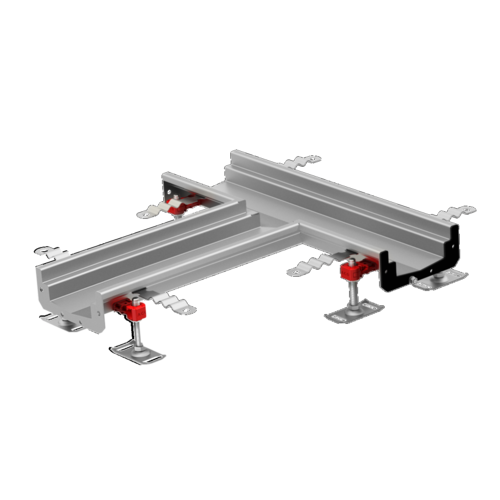

Branch unit

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
    • Outlet diameters 110, 125 and 142 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load class A 15, B 125 or C 250 (EN 1433) including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory

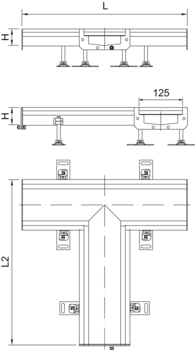

DimensionsMaterialItem

number
Remember
LL2H
[mm][mm][mm]
500515501.4301409824
1.4404409830
651.4301409825
1.4404409831
801.4301409826
1.4404409832
951.4301409827
1.4404409833
1101.4301409828
1.4404409834
1251.4301409829
1.4404409835
DimensionsMaterialItem

number
LL2H
500 mm515 mm50 mm1.4301409824
500 mm515 mm50 mm1.4404409830
500 mm515 mm65 mm1.4301409825
500 mm515 mm65 mm1.4404409831
500 mm515 mm80 mm1.4301409826
500 mm515 mm80 mm1.4404409832
500 mm515 mm95 mm1.4301409827
500 mm515 mm95 mm1.4404409833
500 mm515 mm110 mm1.4301409828
500 mm515 mm110 mm1.4404409834
500 mm515 mm125 mm1.4301409829
500 mm515 mm125 mm1.4404409835
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

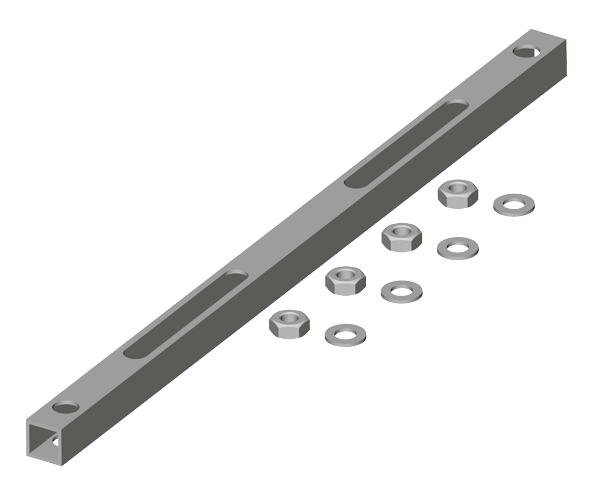

EasyFix stabilizing set

Suitable for
  • ACO modular slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO hygienic and commercial box channels, widths 155, 180, 230 and 280 mm
  • ACO vinyl box channels, width 170 mm
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
