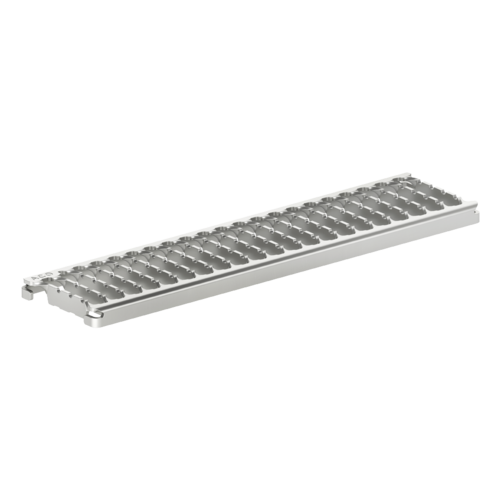

ACO weldless ladder grating

Unibody design (made from one sheet of stainless steel plate) for superior hygienic performace
Fully inspectable and cleanable
Full drainability
Internal radii equal or larger than 3 mm

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
123 x 499	20	22	L 15	A 15	1.4301	450472
123 x 499	20	22	L 15	A 15	1.4404	450508
123 x 374	20	22	L 15	A 15	1.4301	450473
123 x 374	20	22	L 15	A 15	1.4404	450509
123 x 499	20	22	R 50	B 125	1.4301	450474
123 x 499	20	22	R 50	B 125	1.4404	450510
123 x 374	20	22	R 50	B 125	1.4301	450475
123 x 374	20	22	R 50	B 125	1.4404	450511

Grating dimensions			Material	Item number
Size	Frame height (E)	Bar height (G)	Material	Item number
123 x 499 mm	20 mm	22 mm	1.4301	450472
123 x 499 mm	20 mm	22 mm	1.4404	450508
123 x 374 mm	20 mm	22 mm	1.4301	450473
123 x 374 mm	20 mm	22 mm	1.4404	450509
123 x 499 mm	20 mm	22 mm	1.4301	450474
123 x 499 mm	20 mm	22 mm	1.4404	450510
123 x 374 mm	20 mm	22 mm	1.4301	450475
123 x 374 mm	20 mm	22 mm	1.4404	450511
