ACO modular box channel 125

Modular channel concept allows specification using standard channel units to surround machinery and fit within existing tiling patterns.

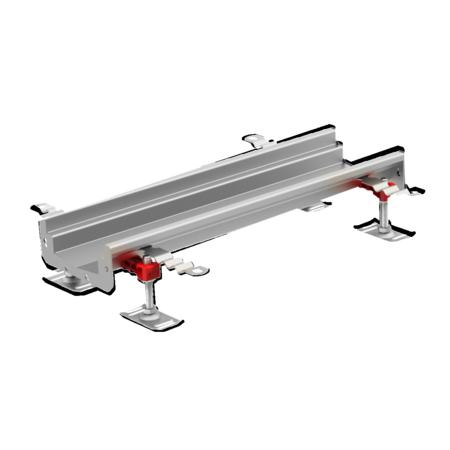

Level invert channel

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Wide range of gratings for load class up to C250 (EN1433)

Sloping invert channel

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Wide range of gratings for load class up to C250 (EN1433)

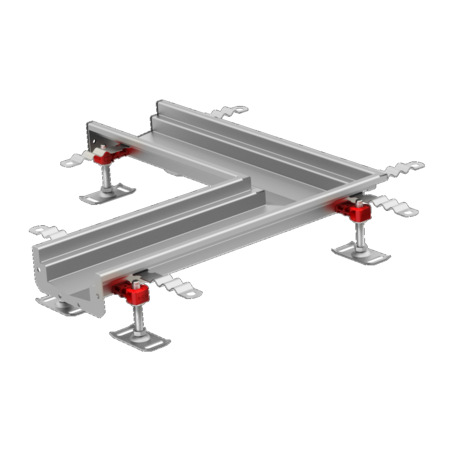

Corner unit

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Wide range of gratings for load class up to C250 (EN1433)

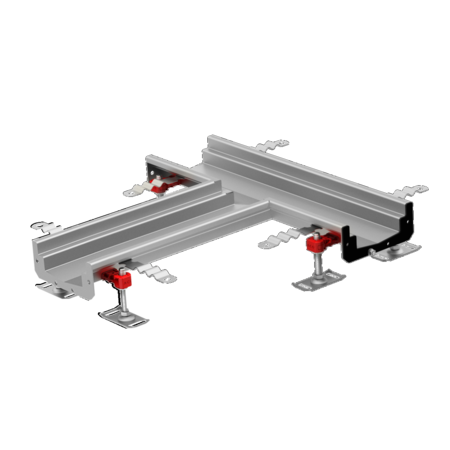

Branch unit

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Wide range of gratings for load class up to C250 (EN1433)

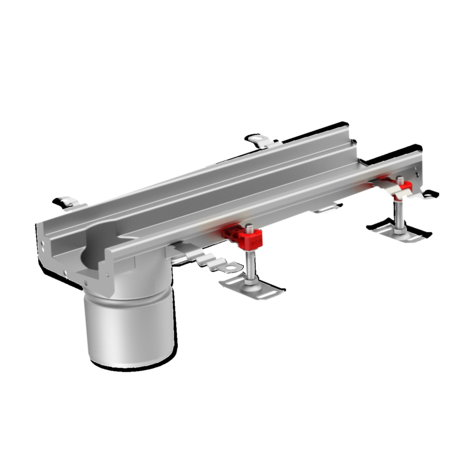

End outlet

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Wide range of gratings for load class up to C250 (EN1433)

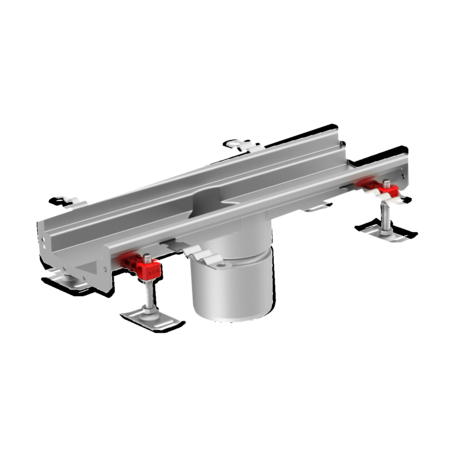

Centre outlet

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickled and passivated
  • Wide range of gratings for load class up to C250 (EN1433)

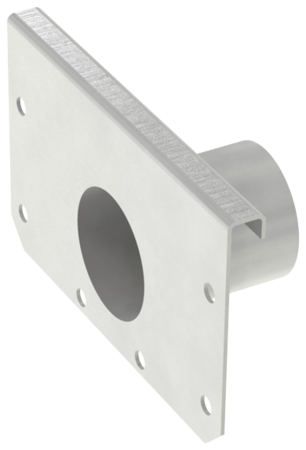

End plate with 50 mm outlet

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickle passivated

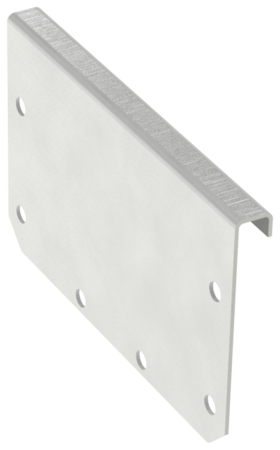

End cap

  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Fully pickle passivated

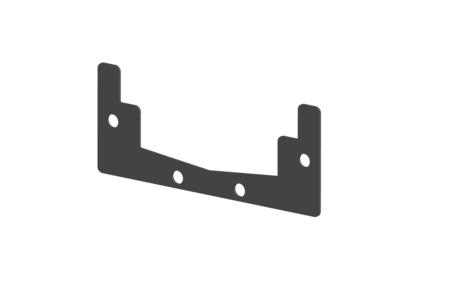

Seal rubber

Material NBR
