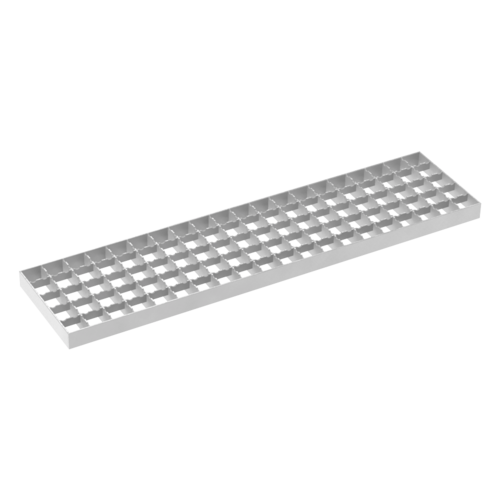

Mesh grating

Product information

Certified according to EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Slip resistant solution available
Available for load classes A 15 or C 250
Hygienic design is not applied for this product

	Grating dimensions	Class	Locking device	Material	Item number
	Size
	[mm]
Without slip resistance	123 x 374	A 15	Placed loosely	1.4301	414132
Without slip resistance	123 x 374	A 15	Placed loosely	1.4404	414182
Slip resistant	123 x 374	A 15	Placed loosely	1.4301	414130
Slip resistant	123 x 374	A 15	Placed loosely	1.4404	414180
Without slip resistance	123 x 374	C 250	Placed loosely	1.4301	414133
Without slip resistance	123 x 374	C 250	Placed loosely	1.4404	414183
Slip resistant	123 x 374	C 250	Placed loosely	1.4301	414131
Slip resistant	123 x 374	C 250	Placed loosely	1.4404	414181
Without slip resistance	123 x 499	A 15	Placed loosely	1.4301	21720
Without slip resistance	123 x 499	A 15	Lockable	1.4301	449865
Without slip resistance	123 x 499	A 15	Placed loosely	1.4404	21725
Without slip resistance	123 x 499	A 15	Lockable	1.4404	449875
Slip resistant	123 x 499	A 15	Placed loosely	1.4301	21710
Slip resistant	123 x 499	A 15	Lockable	1.4301	449869
Slip resistant	123 x 499	A 15	Placed loosely	1.4404	21715
Slip resistant	123 x 499	A 15	Lockable	1.4404	449879
Without slip resistance	123 x 499	C 250	Placed loosely	1.4301	21920
Without slip resistance	123 x 499	C 250	Lockable	1.4301	449867
Without slip resistance	123 x 499	C 250	Placed loosely	1.4404	21925
Without slip resistance	123 x 499	C 250	Lockable	1.4404	449877
Slip resistant	123 x 499	C 250	Placed loosely	1.4301	21910
Slip resistant	123 x 499	C 250	Lockable	1.4301	449871
Slip resistant	123 x 499	C 250	Placed loosely	1.4404	21915
Slip resistant	123 x 499	C 250	Lockable	1.4404	449881
Without slip resistance	123 x 999	A 15	Placed loosely	1.4301	21620
Without slip resistance	123 x 999	A 15	Lockable	1.4301	449864
Without slip resistance	123 x 999	A 15	Placed loosely	1.4404	21625
Without slip resistance	123 x 999	A 15	Lockable	1.4404	449874
Slip resistant	123 x 999	A 15	Placed loosely	1.4301	21610
Slip resistant	123 x 999	A 15	Lockable	1.4301	449868
Slip resistant	123 x 999	A 15	Placed loosely	1.4404	21615
Slip resistant	123 x 999	A 15	Lockable	1.4404	449878
Without slip resistance	123 x 999	C 250	Placed loosely	1.4301	21820
Without slip resistance	123 x 999	C 250	Lockable	1.4301	449866
Without slip resistance	123 x 999	C 250	Placed loosely	1.4404	21825
Without slip resistance	123 x 999	C 250	Lockable	1.4404	449876
Slip resistant	123 x 999	C 250	Placed loosely	1.4301	21810
Slip resistant	123 x 999	C 250	Lockable	1.4301	449870
Slip resistant	123 x 999	C 250	Placed loosely	1.4404	21815
Slip resistant	123 x 999	C 250	Lockable	1.4404	449880

	Grating dimensions	Class	Locking device	Material	Item number
	Size	Class	Locking device	Material	Item number
Without slip resistance	123 x 374 mm	A 15	Placed loosely	1.4301	414132
Without slip resistance	123 x 374 mm	A 15	Placed loosely	1.4404	414182
Slip resistant	123 x 374 mm	A 15	Placed loosely	1.4301	414130
Slip resistant	123 x 374 mm	A 15	Placed loosely	1.4404	414180
Without slip resistance	123 x 374 mm	C 250	Placed loosely	1.4301	414133
Without slip resistance	123 x 374 mm	C 250	Placed loosely	1.4404	414183
Slip resistant	123 x 374 mm	C 250	Placed loosely	1.4301	414131
Slip resistant	123 x 374 mm	C 250	Placed loosely	1.4404	414181
Without slip resistance	123 x 499 mm	A 15	Placed loosely	1.4301	21720
Without slip resistance	123 x 499 mm	A 15	Lockable	1.4301	449865
Without slip resistance	123 x 499 mm	A 15	Placed loosely	1.4404	21725
Without slip resistance	123 x 499 mm	A 15	Lockable	1.4404	449875
Slip resistant	123 x 499 mm	A 15	Placed loosely	1.4301	21710
Slip resistant	123 x 499 mm	A 15	Lockable	1.4301	449869
Slip resistant	123 x 499 mm	A 15	Placed loosely	1.4404	21715
Slip resistant	123 x 499 mm	A 15	Lockable	1.4404	449879
Without slip resistance	123 x 499 mm	C 250	Placed loosely	1.4301	21920
Without slip resistance	123 x 499 mm	C 250	Lockable	1.4301	449867
Without slip resistance	123 x 499 mm	C 250	Placed loosely	1.4404	21925
Without slip resistance	123 x 499 mm	C 250	Lockable	1.4404	449877
Slip resistant	123 x 499 mm	C 250	Placed loosely	1.4301	21910
Slip resistant	123 x 499 mm	C 250	Lockable	1.4301	449871
Slip resistant	123 x 499 mm	C 250	Placed loosely	1.4404	21915
Slip resistant	123 x 499 mm	C 250	Lockable	1.4404	449881
Without slip resistance	123 x 999 mm	A 15	Placed loosely	1.4301	21620
Without slip resistance	123 x 999 mm	A 15	Lockable	1.4301	449864
Without slip resistance	123 x 999 mm	A 15	Placed loosely	1.4404	21625
Without slip resistance	123 x 999 mm	A 15	Lockable	1.4404	449874
Slip resistant	123 x 999 mm	A 15	Placed loosely	1.4301	21610
Slip resistant	123 x 999 mm	A 15	Lockable	1.4301	449868
Slip resistant	123 x 999 mm	A 15	Placed loosely	1.4404	21615
Slip resistant	123 x 999 mm	A 15	Lockable	1.4404	449878
Without slip resistance	123 x 999 mm	C 250	Placed loosely	1.4301	21820
Without slip resistance	123 x 999 mm	C 250	Lockable	1.4301	449866
Without slip resistance	123 x 999 mm	C 250	Placed loosely	1.4404	21825
Without slip resistance	123 x 999 mm	C 250	Lockable	1.4404	449876
Slip resistant	123 x 999 mm	C 250	Placed loosely	1.4301	21810
Slip resistant	123 x 999 mm	C 250	Lockable	1.4301	449870
Slip resistant	123 x 999 mm	C 250	Placed loosely	1.4404	21815
Slip resistant	123 x 999 mm	C 250	Lockable	1.4404	449880
