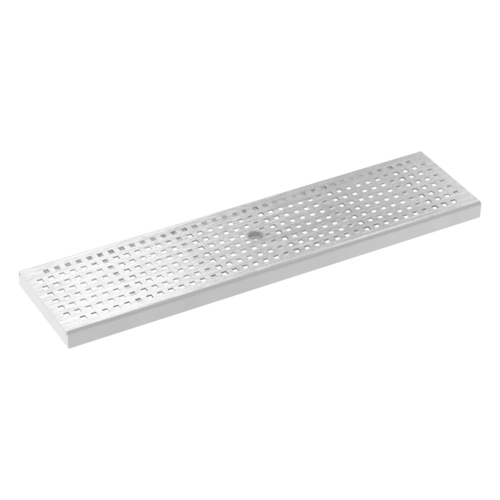

quadrato grating

Product information

Certified according to EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Available for load class A 15
Hygienic design is not applied for this product

	Grating dimensions	Class	Locking device	Material	Item number	Downloads	Remember
	Size
	[mm]
Without slip resistance	123 x 374	A 15	Placed loosely	1.4301	414138
Without slip resistance	123 x 374	A 15	Placed loosely	1.4404	414188
Without slip resistance	123 x 499	A 15	Placed loosely	1.4301	105530
Without slip resistance	123 x 499	A 15	Placed loosely	1.4404	413999
Without slip resistance	123 x 499	A 15	Lockable	1.4301	105528
Without slip resistance	123 x 499	A 15	Lockable	1.4404	407925
Without slip resistance	123 x 999	A 15	Placed loosely	1.4301	105529
Without slip resistance	123 x 999	A 15	Placed loosely	1.4404	413998
Without slip resistance	123 x 999	A 15	Lockable	1.4301	105527
Without slip resistance	123 x 999	A 15	Lockable	1.4404	407924

		Grating dimensions	Class	Locking device	Material	Item number
		Size	Class	Locking device	Material	Item number
	Without slip resistance	123 x 374 mm	A 15	Placed loosely	1.4301	414138
	Without slip resistance	123 x 374 mm	A 15	Placed loosely	1.4404	414188
	Without slip resistance	123 x 499 mm	A 15	Placed loosely	1.4301	105530
	Without slip resistance	123 x 499 mm	A 15	Placed loosely	1.4404	413999
	Without slip resistance	123 x 499 mm	A 15	Lockable	1.4301	105528
	Without slip resistance	123 x 499 mm	A 15	Lockable	1.4404	407925
	Without slip resistance	123 x 999 mm	A 15	Placed loosely	1.4301	105529
	Without slip resistance	123 x 999 mm	A 15	Placed loosely	1.4404	413998
	Without slip resistance	123 x 999 mm	A 15	Lockable	1.4301	105527
	Without slip resistance	123 x 999 mm	A 15	Lockable	1.4404	407924
