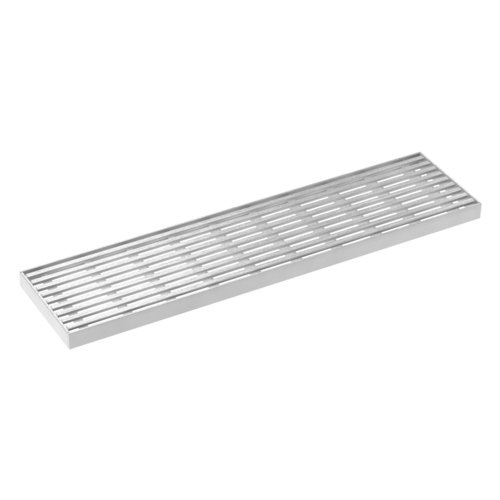

heelsafe grating

Contact
Downloads

Product information

  • Certified according to EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Available for load class B 125
  • Hygienic design is not applied for this product
Grating dimensionsClassLocking deviceMaterialItem

number		Remember
Size
[mm]
Without slip resistance123 x 374B 125Placed loosely1.4301414135
Without slip resistance123 x 374B 125Placed loosely1.4404414185
Without slip resistance123 x 499B 125Placed loosely1.430196819
Without slip resistance123 x 499B 125Lockable1.4301402072
Without slip resistance123 x 499B 125Placed loosely1.4404401238
Without slip resistance123 x 499B 125Lockable1.4404406095
Without slip resistance123 x 999B 125Placed loosely1.430196818
Without slip resistance123 x 999B 125Lockable1.4301402071
Without slip resistance123 x 999B 125Placed loosely1.4404401237
Without slip resistance123 x 999B 125Lockable1.4404406094
Grating dimensionsClassLocking deviceMaterialItem

number
Size
Without slip resistance123 x 374 mmB 125Placed loosely1.4301414135
Without slip resistance123 x 374 mmB 125Placed loosely1.4404414185
Without slip resistance123 x 499 mmB 125Placed loosely1.430196819
Without slip resistance123 x 499 mmB 125Lockable1.4301402072
Without slip resistance123 x 499 mmB 125Placed loosely1.4404401238
Without slip resistance123 x 499 mmB 125Lockable1.4404406095
Without slip resistance123 x 999 mmB 125Placed loosely1.430196818
Without slip resistance123 x 999 mmB 125Lockable1.4301402071
Without slip resistance123 x 999 mmB 125Placed loosely1.4404401237
Without slip resistance123 x 999 mmB 125Lockable1.4404406094
Level invert channel

Level invert channel

Sloping invert channel

Sloping invert channel

Corner unit

Corner unit

Branch unit

Branch unit

End outlet

End outlet

Centre outlet

Centre outlet

End plate with 50 mm outlet

End plate with 50 mm outlet

End cap

End cap

Seal rubber

Seal rubber
