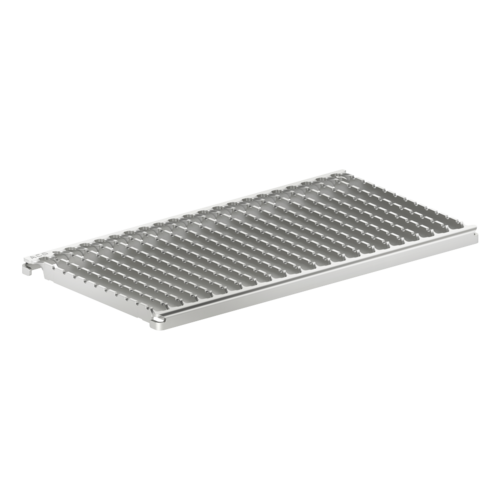

ACO weldless ladder grating

Product benefits

Unibody design (made from one sheet of stainless steel plate) for superior hygienic performace
Fully inspectable and cleanable
Full drainability
Internal radii equal or larger than 3 mm

Product information

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Slip resistance R11 (DIN 51130)
Available for load class up to R 50 (En 1253) and B 125 (EN 1433)
Available for ACO gullies and ACO channels

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
118 x 399	20	22	L 15	A 15	1.4301	450461
118 x 399	20	22	L 15	A 15	1.4404	450497
118 x 499	20	22	L 15	A 15	1.4301	450460
118 x 499	20	22	L 15	A 15	1.4404	450496
118 x 399	20	22	R 50	B 125	1.4301	450463
118 x 399	20	22	R 50	B 125	1.4404	450499
118 x 499	20	22	R 50	B 125	1.4301	450462
118 x 499	20	22	R 50	B 125	1.4404	450498
168 x 399	20	22	L 15	A 15	1.4301	450465
168 x 399	20	22	L 15	A 15	1.4404	450501
168 x 499	20	22	L 15	A 15	1.4301	450464
168 x 499	20	22	L 15	A 15	1.4404	450500
168 x 399	20	22	R 50		1.4301	450468
168 x 399	20	22	R 50		1.4404	450504
168 x 499	20	22	R 50		1.4301	450467
168 x 499	20	22	R 50		1.4404	450503
268 x 299	20	22	L 15	A 15	1.4301	450470
268 x 299	20	22	L 15	A 15	1.4404	450506
268 x 499	20	22	L 15	A 15	1.4301	450469
268 x 499	20	22	L 15	A 15	1.4404	450505

Grating dimensions			Material	Item number
Size	Frame height (E)	Bar height (G)	Material	Item number
118 x 399 mm	20 mm	22 mm	1.4301	450461
118 x 399 mm	20 mm	22 mm	1.4404	450497
118 x 499 mm	20 mm	22 mm	1.4301	450460
118 x 499 mm	20 mm	22 mm	1.4404	450496
118 x 399 mm	20 mm	22 mm	1.4301	450463
118 x 399 mm	20 mm	22 mm	1.4404	450499
118 x 499 mm	20 mm	22 mm	1.4301	450462
118 x 499 mm	20 mm	22 mm	1.4404	450498
168 x 399 mm	20 mm	22 mm	1.4301	450465
168 x 399 mm	20 mm	22 mm	1.4404	450501
168 x 499 mm	20 mm	22 mm	1.4301	450464
168 x 499 mm	20 mm	22 mm	1.4404	450500
168 x 399 mm	20 mm	22 mm	1.4301	450468
168 x 399 mm	20 mm	22 mm	1.4404	450504
168 x 499 mm	20 mm	22 mm	1.4301	450467
168 x 499 mm	20 mm	22 mm	1.4404	450503
268 x 299 mm	20 mm	22 mm	1.4301	450470
268 x 299 mm	20 mm	22 mm	1.4404	450506
268 x 499 mm	20 mm	22 mm	1.4301	450469
268 x 499 mm	20 mm	22 mm	1.4404	450505
