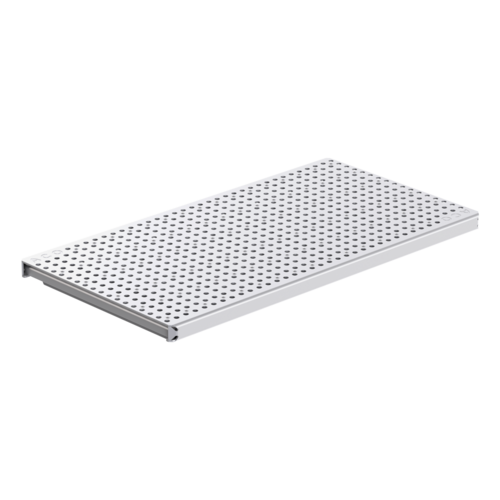

ACO perforated grating

Product information

Certified according to EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Hygienic design is not applied for this product

Grating dimensions			Load class (EN 1253)	Locking device	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
168 x 399	20	20	L 15	Placed loosely	1.4301	449714
				Lockable	1.4301	449716
				Placed loosely	1.4404	449757
				Lockable	1.4404	449759
	33	20	R 50	Placed loosely	1.4301	449718
				Lockable	1.4301	449720
				Placed loosely	1.4404	449761
				Lockable	1.4404	449763
			M 125	Placed loosely	1.4301	449722
				Lockable	1.4301	449724
				Placed loosely	1.4404	449765
				Lockable	1.4404	449767
168 x 499	20	20	L 15	Placed loosely	1.4301	449715
				Lockable	1.4301	449717
				Placed loosely	1.4404	449758
				Lockable	1.4404	449760
	33	20	R 50	Placed loosely	1.4301	449719
				Lockable	1.4301	449721
				Placed loosely	1.4404	449762
				Lockable	1.4404	449764
			M 125	Placed loosely	1.4301	449723
				Lockable	1.4301	449725
				Placed loosely	1.4404	449766
				Lockable	1.4404	449768
268 x 299	23	20	L 15	Placed loosely	1.4301	449726
				Lockable	1.4301	449728
				Placed loosely	1.4404	449769
				Lockable	1.4404	449771
	31	20	R 50	Placed loosely	1.4301	449730
				Lockable	1.4301	449732
				Placed loosely	1.4404	449773
				Lockable	1.4404	449775
	36	20	M 125	Placed loosely	1.4301	449734
				Lockable	1.4301	449736
				Placed loosely	1.4404	449777
				Lockable	1.4404	449779
268 x 499	23	20	L 15	Placed loosely	1.4301	449727
				Lockable	1.4301	449729
				Placed loosely	1.4404	449770
				Lockable	1.4404	449772
	31	20	R 50	Placed loosely	1.4301	449731
				Lockable	1.4301	449733
				Placed loosely	1.4404	449774
				Lockable	1.4404	449776
	36	20	M 125	Placed loosely	1.4301	449735
				Lockable	1.4301	449737
				Placed loosely	1.4404	449778
				Lockable	1.4404	449780

Grating dimensions			Locking device	Material	Item number
Size	Frame height (E)	Bar height (G)	Locking device	Material	Item number
168 x 399 mm	20 mm	20 mm	Placed loosely	1.4301	449714
168 x 399 mm	20 mm	20 mm	Lockable	1.4301	449716
168 x 399 mm	20 mm	20 mm	Placed loosely	1.4404	449757
168 x 399 mm	20 mm	20 mm	Lockable	1.4404	449759
168 x 399 mm	33 mm	20 mm	Placed loosely	1.4301	449718
168 x 399 mm	33 mm	20 mm	Lockable	1.4301	449720
168 x 399 mm	33 mm	20 mm	Placed loosely	1.4404	449761
168 x 399 mm	33 mm	20 mm	Lockable	1.4404	449763
168 x 399 mm	33 mm	20 mm	Placed loosely	1.4301	449722
168 x 399 mm	33 mm	20 mm	Lockable	1.4301	449724
168 x 399 mm	33 mm	20 mm	Placed loosely	1.4404	449765
168 x 399 mm	33 mm	20 mm	Lockable	1.4404	449767
168 x 499 mm	20 mm	20 mm	Placed loosely	1.4301	449715
168 x 499 mm	20 mm	20 mm	Lockable	1.4301	449717
168 x 499 mm	20 mm	20 mm	Placed loosely	1.4404	449758
168 x 499 mm	20 mm	20 mm	Lockable	1.4404	449760
168 x 499 mm	33 mm	20 mm	Placed loosely	1.4301	449719
168 x 499 mm	33 mm	20 mm	Lockable	1.4301	449721
168 x 499 mm	33 mm	20 mm	Placed loosely	1.4404	449762
168 x 499 mm	33 mm	20 mm	Lockable	1.4404	449764
168 x 499 mm	33 mm	20 mm	Placed loosely	1.4301	449723
168 x 499 mm	33 mm	20 mm	Lockable	1.4301	449725
168 x 499 mm	33 mm	20 mm	Placed loosely	1.4404	449766
168 x 499 mm	33 mm	20 mm	Lockable	1.4404	449768
268 x 299 mm	23 mm	20 mm	Placed loosely	1.4301	449726
268 x 299 mm	23 mm	20 mm	Lockable	1.4301	449728
268 x 299 mm	23 mm	20 mm	Placed loosely	1.4404	449769
268 x 299 mm	23 mm	20 mm	Lockable	1.4404	449771
268 x 299 mm	31 mm	20 mm	Placed loosely	1.4301	449730
268 x 299 mm	31 mm	20 mm	Lockable	1.4301	449732
268 x 299 mm	31 mm	20 mm	Placed loosely	1.4404	449773
268 x 299 mm	31 mm	20 mm	Lockable	1.4404	449775
268 x 299 mm	36 mm	20 mm	Placed loosely	1.4301	449734
268 x 299 mm	36 mm	20 mm	Lockable	1.4301	449736
268 x 299 mm	36 mm	20 mm	Placed loosely	1.4404	449777
268 x 299 mm	36 mm	20 mm	Lockable	1.4404	449779
268 x 499 mm	23 mm	20 mm	Placed loosely	1.4301	449727
268 x 499 mm	23 mm	20 mm	Lockable	1.4301	449729
268 x 499 mm	23 mm	20 mm	Placed loosely	1.4404	449770
268 x 499 mm	23 mm	20 mm	Lockable	1.4404	449772
268 x 499 mm	31 mm	20 mm	Placed loosely	1.4301	449731
268 x 499 mm	31 mm	20 mm	Lockable	1.4301	449733
268 x 499 mm	31 mm	20 mm	Placed loosely	1.4404	449774
268 x 499 mm	31 mm	20 mm	Lockable	1.4404	449776
268 x 499 mm	36 mm	20 mm	Placed loosely	1.4301	449735
268 x 499 mm	36 mm	20 mm	Lockable	1.4301	449737
268 x 499 mm	36 mm	20 mm	Placed loosely	1.4404	449778
268 x 499 mm	36 mm	20 mm	Lockable	1.4404	449780
