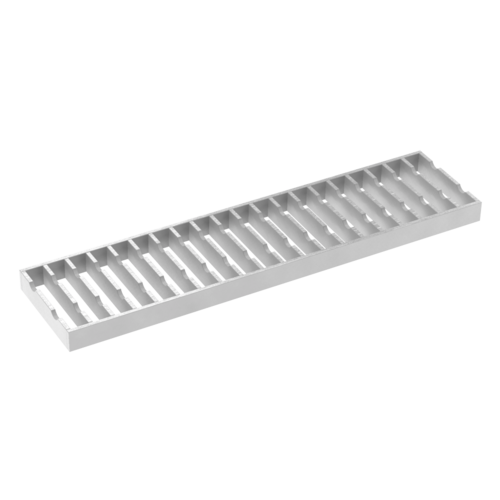

ACO ladder grating

Product information

Certified according to EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Slip resistant solution available
Available for load class C 250
Hygienic design is not applied for this product

	Grating dimensions	Class	Locking device	Material	Item number	Downloads	Remember
	Size
	[mm]
Slip resistant	123 x 374	C 250	Placed loosely	1.4301	414134
Slip resistant	123 x 374	C 250	Placed loosely	1.4404	414184
Slip resistant	123 x 499	C 250	Placed loosely	1.4301	21740
Slip resistant	123 x 499	C 250	Lockable	1.4301	449873
Slip resistant	123 x 499	C 250	Placed loosely	1.4404	21745
Slip resistant	123 x 499	C 250	Lockable	1.4404	449883
Slip resistant	123 x 999	C 250	Placed loosely	1.4301	21741
Slip resistant	123 x 999	C 250	Lockable	1.4301	449872
Slip resistant	123 x 999	C 250	Placed loosely	1.4404	21746
Slip resistant	123 x 999	C 250	Lockable	1.4404	449882

		Grating dimensions	Class	Locking device	Material	Item number
		Size	Class	Locking device	Material	Item number
	Slip resistant	123 x 374 mm	C 250	Placed loosely	1.4301	414134
	Slip resistant	123 x 374 mm	C 250	Placed loosely	1.4404	414184
	Slip resistant	123 x 499 mm	C 250	Placed loosely	1.4301	21740
	Slip resistant	123 x 499 mm	C 250	Lockable	1.4301	449873
	Slip resistant	123 x 499 mm	C 250	Placed loosely	1.4404	21745
	Slip resistant	123 x 499 mm	C 250	Lockable	1.4404	449883
	Slip resistant	123 x 999 mm	C 250	Placed loosely	1.4301	21741
	Slip resistant	123 x 999 mm	C 250	Lockable	1.4301	449872
	Slip resistant	123 x 999 mm	C 250	Placed loosely	1.4404	21746
	Slip resistant	123 x 999 mm	C 250	Lockable	1.4404	449882
