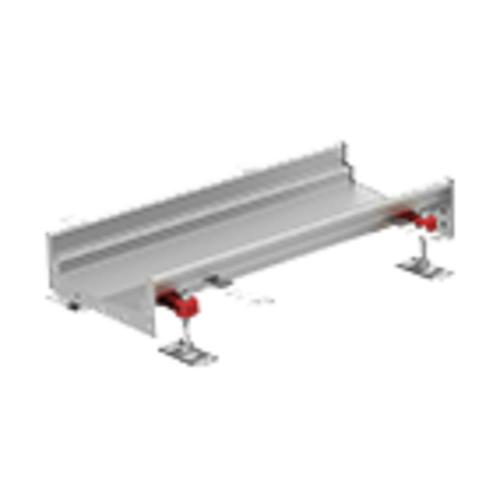

Sloping invert channel

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
    • Outlet diameters 110, 125 and 142 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load classes A 15, B 125 or C 250 (EN 1433) including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Fully pickle passivated
  • Easy and secure telescopic connection with gully
  • Cut on demand items available to minimize works on site
  • Wide range of gratings for load class up to C250 (EN1433)

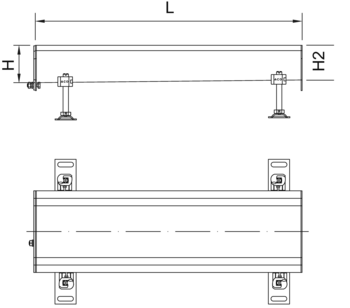

DimensionsMaterialItem

number
Remember
LHH2
[mm][mm][mm]
50055601.4301401855
1.4404401856
100060701.4301401871
1.4404401872
70801.4301402464
1.4404402465
80901.4301402466
1.4404402467
901001.4301402468
1.4404402469
1001101.4301402470
1.4404402471
200060701.4301401887
1.4404401888
70801.4301402472
1.4404402473
80901.4301402474
1.4404402475
901001.4301402476
1.4404402477
1001101.4301402478
1.4404402479
1101201.4301402480
1.4404402481
300060801.4301402482
1.4404402483
801001.4301402484
1.4404402485
1001201.4301402486
1.4404402487
1201401.4301402488
1.4404402489
6000601001.4301408827
1.4404408829
1001401.4301408828
1.4404408830
DimensionsMaterialItem

number
LHH2
500 mm55 mm60 mm1.4301401855
500 mm55 mm60 mm1.4404401856
1000 mm60 mm70 mm1.4301401871
1000 mm60 mm70 mm1.4404401872
1000 mm70 mm80 mm1.4301402464
1000 mm70 mm80 mm1.4404402465
1000 mm80 mm90 mm1.4301402466
1000 mm80 mm90 mm1.4404402467
1000 mm90 mm100 mm1.4301402468
1000 mm90 mm100 mm1.4404402469
1000 mm100 mm110 mm1.4301402470
1000 mm100 mm110 mm1.4404402471
2000 mm60 mm70 mm1.4301401887
2000 mm60 mm70 mm1.4404401888
2000 mm70 mm80 mm1.4301402472
2000 mm70 mm80 mm1.4404402473
2000 mm80 mm90 mm1.4301402474
2000 mm80 mm90 mm1.4404402475
2000 mm90 mm100 mm1.4301402476
2000 mm90 mm100 mm1.4404402477
2000 mm100 mm110 mm1.4301402478
2000 mm100 mm110 mm1.4404402479
2000 mm110 mm120 mm1.4301402480
2000 mm110 mm120 mm1.4404402481
3000 mm60 mm80 mm1.4301402482
3000 mm60 mm80 mm1.4404402483
3000 mm80 mm100 mm1.4301402484
3000 mm80 mm100 mm1.4404402485
3000 mm100 mm120 mm1.4301402486
3000 mm100 mm120 mm1.4404402487
3000 mm120 mm140 mm1.4301402488
3000 mm120 mm140 mm1.4404402489
6000 mm60 mm100 mm1.4301408827
6000 mm60 mm100 mm1.4404408829
6000 mm100 mm140 mm1.4301408828
6000 mm100 mm140 mm1.4404408830
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

EasyFix stabilizing set

Suitable for
  • ACO modular slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO hygienic and commercial box channels, widths 155, 180, 230 and 280 mm
  • ACO vinyl box channels, width 170 mm
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
