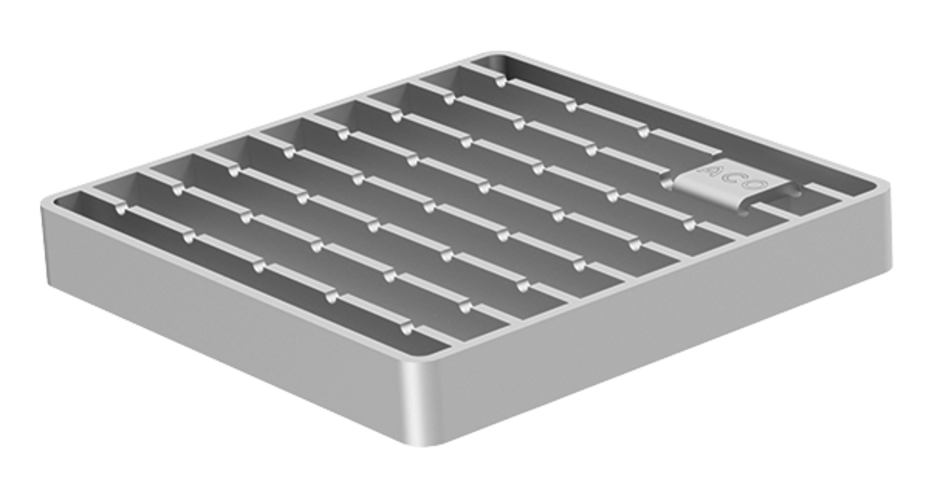

ACO hygienic ladder grating

Product benefits

  • Fully inspectable and cleanable
  • Full drainability
  • Internal radii equal or larger than 3 mm
  • Fully welded hygienic joints
  • Fully electropolished

Product information

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Certified according to EN 1253-1
  • Slip resistant solution available (R11)
Gull top size

compatibility
Grating dimensionsClassMaterialItem

number
Remember
Size
[mm]
Slip resistantGully top size: 300 x 300 mm268 x 268R 501.4301416916
Slip resistantGully top size: 300 x 300 mm268 x 268R 501.4404416917
Slip resistantGully top size: 300 x 300 mm268 x 268M 1251.4301408037
Slip resistantGully top size: 300 x 300 mm268 x 268M 1251.4404408137
Without slip resistanceGully top size: 300 x 300 mm268 x 268N 2501.4301408045
Without slip resistanceGully top size: 300 x 300 mm268 x 268N 2501.4404408145
Gull top size

compatibility
Grating dimensionsClassMaterialItem

number
Size
Slip resistantGully top size: 300 x 300 mm268 x 268 mmR 501.4301416916
Slip resistantGully top size: 300 x 300 mm268 x 268 mmR 501.4404416917
Slip resistantGully top size: 300 x 300 mm268 x 268 mmM 1251.4301408037
Slip resistantGully top size: 300 x 300 mm268 x 268 mmM 1251.4404408137
Without slip resistanceGully top size: 300 x 300 mm268 x 268 mmN 2501.4301408045
Without slip resistanceGully top size: 300 x 300 mm268 x 268 mmN 2501.4404408145
