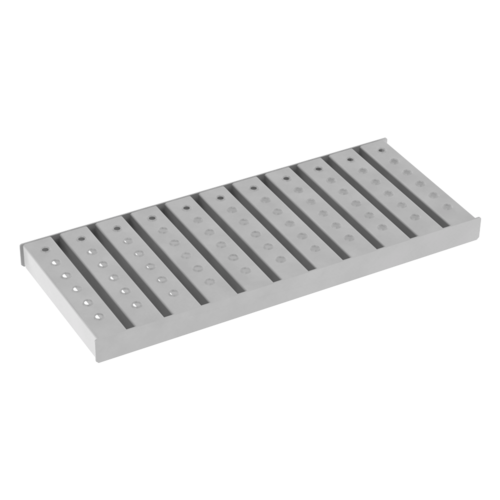

multi - slot 5 grating

Product information

Certified according to EN 1433
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Available for load classes A 15 or B 125
Hygienic design is not applied for this product

	Grating dimensions	Class	Material	Item number	Downloads	Remember
	Size
	[mm]
Slip resistant	300	A 15	1.4301	414145
Slip resistant	300	A 15	1.4404	414195
Slip resistant	500	A 15	1.4301	409292
Slip resistant	500	A 15	1.4404	409293
Slip resistant	1000	A 15	1.4301	409288
Slip resistant	1000	A 15	1.4404	409289

		Grating dimensions	Class	Material	Item number
		Size	Class	Material	Item number
	Slip resistant	300 mm	A 15	1.4301	414145
	Slip resistant	300 mm	A 15	1.4404	414195
	Slip resistant	500 mm	A 15	1.4301	409292
	Slip resistant	500 mm	A 15	1.4404	409293
	Slip resistant	1000 mm	A 15	1.4301	409288
	Slip resistant	1000 mm	A 15	1.4404	409289

ACO modular box channel 200

Level invert channel

ACO modular box channel 200

Sloping invert channel

Corner unit

Corner unit

Branch unit

Branch unit

End outlet

End outlet

Centre outlet

Centre outlet

End plate with 50 mm outlet

End plate with 50 mm outlet

End cap

End cap

Seal rubber

Seal rubber
