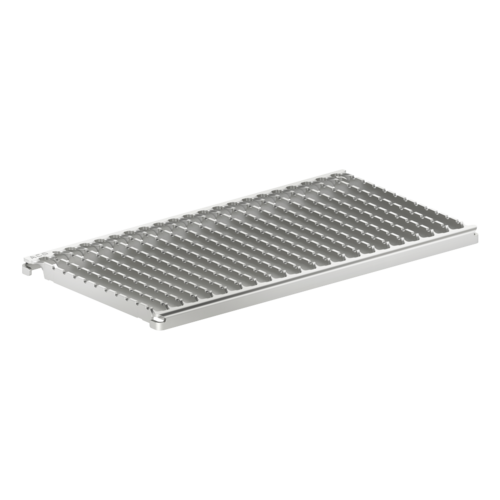

ACO weldless ladder grating

Unibody design (made from one sheet of stainless steel plate) for superior hygienic performace
Fully inspectable and cleanable
Full drainability
Internal radii equal or larger than 3 mm

Grating dimensions			Load class (EN 1253)	Load class (EN 1433)	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
198 x 298	30	22	K 3		1.4301	450477
198 x 298	30	22	K 3		1.4404	450513
198 x 499	30	22	K 3		1.4301	450476
198 x 499	30	22	K 3		1.4404	450512
198 x 298	30	22	L 15	A 15	1.4301	450479
198 x 298	30	22	L 15	A 15	1.4404	450515
198 x 499	30	22	L 15	A 15	1.4301	450478
198 x 499	30	22	L 15	A 15	1.4404	450514

Grating dimensions			Material	Item number
Size	Frame height (E)	Bar height (G)	Material	Item number
198 x 298 mm	30 mm	22 mm	1.4301	450477
198 x 298 mm	30 mm	22 mm	1.4404	450513
198 x 499 mm	30 mm	22 mm	1.4301	450476
198 x 499 mm	30 mm	22 mm	1.4404	450512
198 x 298 mm	30 mm	22 mm	1.4301	450479
198 x 298 mm	30 mm	22 mm	1.4404	450515
198 x 499 mm	30 mm	22 mm	1.4301	450478
198 x 499 mm	30 mm	22 mm	1.4404	450514
