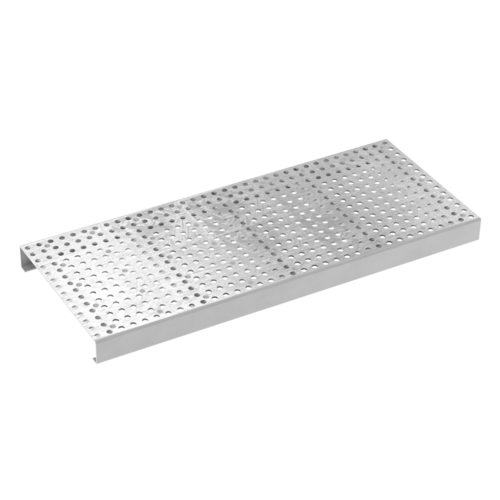

Perforated Grating 654948

perforated grating

Contact
Downloads

Product information

  • Certified according to EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Available for load class A 15
  • Hygienic design is not applied for this product
Grating dimensionsClassLocking deviceMaterialItem

number		Remember
SizeFrame height (E)Bar height (G)
[mm][mm][mm]
Without slip resistance198 x 2993030A 15Placed loosely1.4301414143
Lockable1.4301449702
Placed loosely1.4404414193
Lockable1.4404449745
40B 125Placed loosely1.4301449708
Lockable1.4301449705
Placed loosely1.4404449751
Lockable1.4404449748
C 250Placed loosely1.4301449711
1.4404449754
198 x 4993030A 15Placed loosely1.4301402689
Lockable1.4301449703
Placed loosely1.4404405188
Lockable1.4404449746
40B 125Placed loosely1.4301449709
Lockable1.4301449706
Placed loosely1.4404449752
Lockable1.4404449749
C 250Placed loosely1.4301449712
1.4404449755
198 x 9993030A 15Placed loosely1.4301402688
Lockable1.4301449704
Placed loosely1.4404405187
Lockable1.4404449747
40B 125Placed loosely1.4301449710
Lockable1.4301449707
Placed loosely1.4404449753
Lockable1.4404449750
C 250Placed loosely1.4301449713
1.4404449756
Grating dimensionsClassLocking deviceMaterialItem

number
SizeFrame height (E)Bar height (G)
Without slip resistance198 x 299 mm30 mm30 mmA 15Placed loosely1.4301414143
Without slip resistance198 x 299 mm30 mm30 mmA 15Lockable1.4301449702
Without slip resistance198 x 299 mm30 mm30 mmA 15Placed loosely1.4404414193
Without slip resistance198 x 299 mm30 mm30 mmA 15Lockable1.4404449745
Without slip resistance198 x 299 mm30 mm40 mmB 125Placed loosely1.4301449708
Without slip resistance198 x 299 mm30 mm40 mmB 125Lockable1.4301449705
Without slip resistance198 x 299 mm30 mm40 mmB 125Placed loosely1.4404449751
Without slip resistance198 x 299 mm30 mm40 mmB 125Lockable1.4404449748
Without slip resistance198 x 299 mm30 mm40 mmC 250Placed loosely1.4301449711
Without slip resistance198 x 299 mm30 mm40 mmC 250Placed loosely1.4404449754
Without slip resistance198 x 499 mm30 mm30 mmA 15Placed loosely1.4301402689
Without slip resistance198 x 499 mm30 mm30 mmA 15Lockable1.4301449703
Without slip resistance198 x 499 mm30 mm30 mmA 15Placed loosely1.4404405188
Without slip resistance198 x 499 mm30 mm30 mmA 15Lockable1.4404449746
Without slip resistance198 x 499 mm30 mm40 mmB 125Placed loosely1.4301449709
Without slip resistance198 x 499 mm30 mm40 mmB 125Lockable1.4301449706
Without slip resistance198 x 499 mm30 mm40 mmB 125Placed loosely1.4404449752
Without slip resistance198 x 499 mm30 mm40 mmB 125Lockable1.4404449749
Without slip resistance198 x 499 mm30 mm40 mmC 250Placed loosely1.4301449712
Without slip resistance198 x 499 mm30 mm40 mmC 250Placed loosely1.4404449755
Without slip resistance198 x 999 mm30 mm30 mmA 15Placed loosely1.4301402688
Without slip resistance198 x 999 mm30 mm30 mmA 15Lockable1.4301449704
Without slip resistance198 x 999 mm30 mm30 mmA 15Placed loosely1.4404405187
Without slip resistance198 x 999 mm30 mm30 mmA 15Lockable1.4404449747
Without slip resistance198 x 999 mm30 mm40 mmB 125Placed loosely1.4301449710
Without slip resistance198 x 999 mm30 mm40 mmB 125Lockable1.4301449707
Without slip resistance198 x 999 mm30 mm40 mmB 125Placed loosely1.4404449753
Without slip resistance198 x 999 mm30 mm40 mmB 125Lockable1.4404449750
Without slip resistance198 x 999 mm30 mm40 mmC 250Placed loosely1.4301449713
Without slip resistance198 x 999 mm30 mm40 mmC 250Placed loosely1.4404449756
