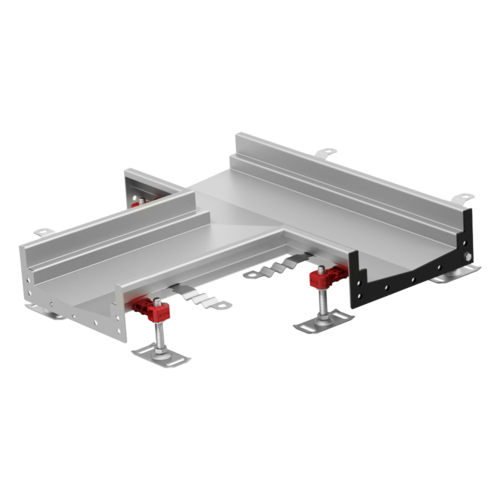

Branch unit

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
    • Outlet diameters 110, 125 and 142 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load classes A 15, B 125 or C 250 (EN 1433) including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Fully pickle passivated
  • Easy and secure telescopic connection with gully
  • Wide range of gratings for load class up to C250 (EN1433)

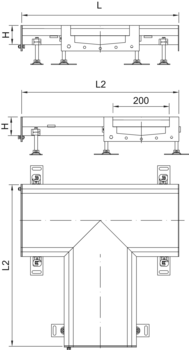

DimensionsMaterialItem

number
Remember
LL2H
[mm][mm][mm]
500515601.4301401933
1.4404401934
801.4301402494
1.4404402495
1001.4301402496
1.4404402497
DimensionsMaterialItem

number
LL2H
500 mm515 mm60 mm1.4301401933
500 mm515 mm60 mm1.4404401934
500 mm515 mm80 mm1.4301402494
500 mm515 mm80 mm1.4404402495
500 mm515 mm100 mm1.4301402496
500 mm515 mm100 mm1.4404402497
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4301 (304)

Odour trap

Suitable for
  • ACO slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO modular slot channel 20
Description

Stainless steel

  • Height 50 mm
  • Material grade 1.4404 (316L)

EasyFix stabilizing set

Suitable for
  • ACO modular slot channel 20
  • ACO modular box channel 125
  • ACO modular box channel 200
  • ACO hygienic and commercial box channels, widths 155, 180, 230 and 280 mm
  • ACO vinyl box channels, width 170 mm
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
