End Outlet 123471

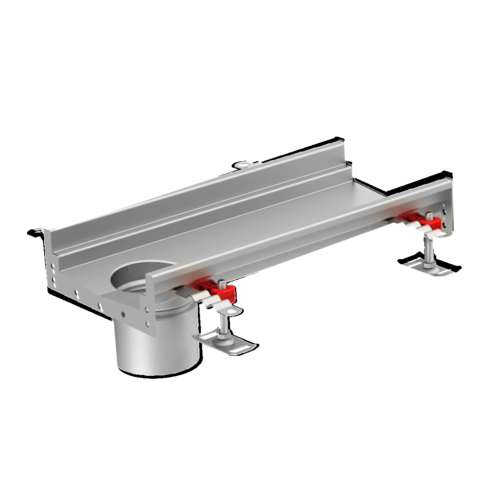

End outlet

Product information

  • Certified according to EN 1253-1 and EN 1433
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
    • Outlet diameters 110, 125 and 142 mm
  • Adjustable EasyFix levelling feet
  • Anchors for fixing in concrete
  • Wide range of gratings for load classes A 15, B 125 or C 250 (EN 1433) including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Fully pickle passivated
  • Easy and secure telescopic connection with gully
  • Wide range of gratings for load class up to C250 (EN1433)
