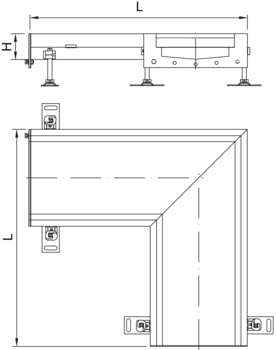

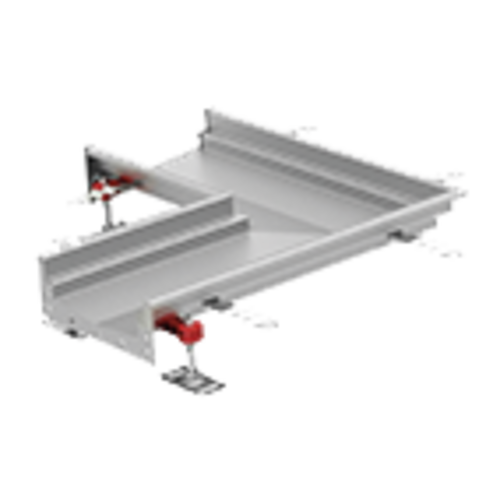

Corner unit
Product information
- Certified according to EN 1253-1 and EN 1433
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Steel thickness min. 1,5 mm
- Fully welded hygienic joints
- Fully pickled and passivated
- Edge infill
- V-profile bottom for enhanced flow efficiency at low flow rates and for improved self-cleaning performance
- Outlet diameters 110, 125 and 142 mm
- Adjustable EasyFix levelling feet
- Anchors for fixing in concrete
- Wide range of gratings for load classes A 15, B 125 or C 250 (EN 1433) including slip resistant solution
- Silt basket and foul air trap (FAT) available as accessory
- Fully pickle passivated
- Easy and secure telescopic connection with gully
- Wide range of gratings for load class up to C250 (EN1433)
- Type 1: ACO box channel - standard type - gully with adhesive bonding flange
- Tilles floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concrete floor slab
Typ 2: ACO box channel - gully with mechanical clamping flange
Tiled floor
- 1 Ceramic tiles
- 2 Tile cement
- 3 Mastic sealant
- 4 Rubber infill
- 5 Floor screed
- 6 Water proof membrane
- 7 Solid concret floor slab
- 8 Compacted soil
Typ 3: ACO box channel - gully with location flange
Resin floor
- 1 Epoxy / resin floor
- 2 Floor screed
- 3 Rubber infill
- 4 Solid concrete floor slab
- 5 Compacted soil
Typ 4: ACO box channel - vinyl type - gully with location flange
Vinyl floor
- 1 Vinyl floor
- 2 Vinyl seal
- 3 Floor screed
- 4 Solid concrete floor slab
- 5 Compacted soil
ACO frameless ladder grating
ACO hygienic ladder grating
ACO hygienic slot cover
ACO mesh grating
ACO quadrato grating
ACO heelsafe grating
ACO multi-slot 5 grating
ACO odour proof gully cover
ACO weldless ladder grating
ACO frameless ladder grating
Mesh grating
ACO ladder grating
perforated grating
multi - slot 5 grating
multi - slot 8 grating
ACO hygienic slot cover
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
Odour trap
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
Stainless steel
- Height 50 mm
- Material grade 1.4301 (304)
Odour trap
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
Stainless steel
- Height 50 mm
- Material grade 1.4404 (316L)
EasyFix stabilizing set
Suitable for
- ACO modular slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO hygienic and commercial box channels, widths 155, 180, 230 and 280 mm
- ACO vinyl box channels, width 170 mm
Description
The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
