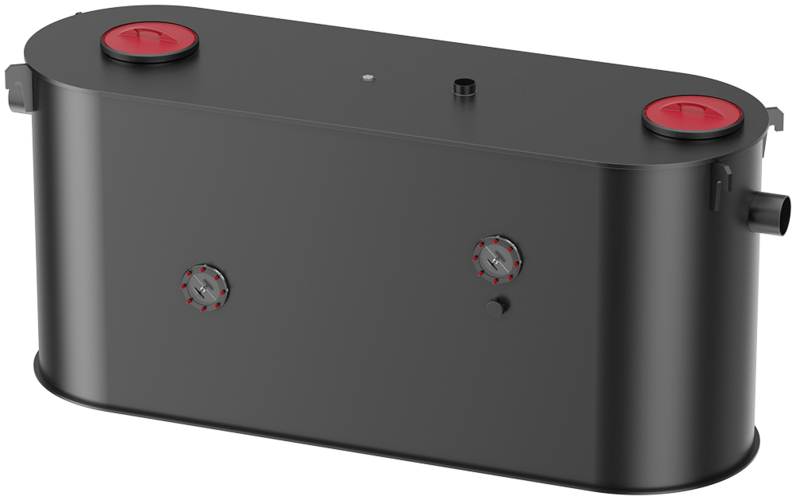

Grease separator LipuJet-P-OB basic model
Product benefits
- With two inspection windows for sludge and grease control
- Optionally with filling device
- Optionally with grease level sensor
Product information
- Grease separator according to EN 1825 for installation inside frost-free rooms
- Manufactured of polyethylene in oval shape
- Two covers odour-proof ∅ 450 mm
- Inlet and outlet ∅ 200 mm (NS 15 – 25) or ∅ 250 mm (NS 30)
- Two inspection windows with wiper
- Operating side left or right

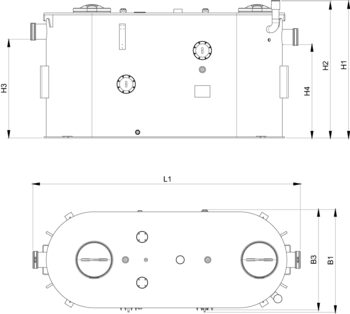

| Item number | Nominal size | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|
| L1 | H1 | H2 | H3 | H4 | B2 | B3 | ||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| 3815.35.42 | NS 15 | 2820 | 1810 | 1800 | 1300 | 1230 | 1350 | 1320 |
| 3820.35.42 | NS 20 | 3520 | 1810 | 1800 | 1300 | 1230 | 1350 | 1320 |
| 3825.35.42 | NS 25 | 4220 | 1910 | 1900 | 1300 | 1230 | 1350 | 1320 |
| 3830.35.42 | NS 30 | 4920 | 1910 | 1900 | 1300 | 1230 | 1350 | 1320 |
| 3815.35.32 | NS 15 | 2820 | 1810 | 1800 | 1300 | 1230 | 1350 | 1320 |
| 3820.35.32 | NS 20 | 3520 | 1810 | 1800 | 1300 | 1230 | 1350 | 1320 |
| 3825.35.32 | NS 25 | 4220 | 1910 | 1900 | 1300 | 1230 | 1350 | 1320 |
| 3830.35.32 | NS 30 | 4920 | 1910 | 1900 | 1300 | 1230 | 1350 | 1320 |

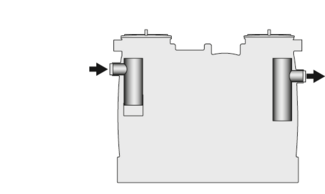

Features of base version:
- Emptying and cleaning via maintenance opening
- Odour build-up during emptying and cleaning
Grease layer thickness measuring device
Suitable for
- LipuJet-P
- Oval NS 1 – 10
- Round NS 2 – 22,5
- LipuJet-S
- Oval NS 1 – 10
- Round NS 2 – 20
- LipuSmart-P
- Oval NS 1 – 10
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
- With visual display of fill level
- With heated probe rod to increase reliability of operation
- Operating voltage: 230VAC/5 VA
- Max consumption approx. 12W
- Weight: 2.8 kg
- Rabattgruppe: 11
Inlet valve DN 250
Description
- Rabattgruppe: 11
ACO Ozone Generator
Suitable for
- Grease separators, indoors
- Grease separators, outdoors
- Lifting stations
- Pumping stations
Description
- ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
- Material: acid-resistant stainless steel
Consists:
- ACO Ozone - ozone generator
- Size (L x W x H): 270 x 100 x 85 mm
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP20
- ACO Ozone pump - feed pump
- Size (L x W x H): 160 x 90 x 90 mm
- Integrated filter
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP54
- ACO Ozone bracket - wall bracket
- Size (L x W x H): 295 x 110 x 90 mm
- Hoses
- Rabattgruppe: 11
Heating rod
Suitable for
- Grease separators
Description
- To liquefy grease layer
- Incl. control
- Electrical connector
- 400 V/50 Hz/6.0 kW
- Weight: 15 kg
- Rabattgruppe: 11
Filling device
Suitable for
- Grease separator
- LipuJet-P-OB/OD/R/RD
- LipuSmart-P-OB/OD
- BioJet-P-OM/RM (NS 2-25)
Description
- Free outlet as per DIN 1988 Part 4
- For connection to drinking water supply
- With DVGW / KIWA approval and inclined valve R ¾ "
- With pressure relief valve with dirt trap
- Weight: 3.5 kg
- Rabattgruppe: 11

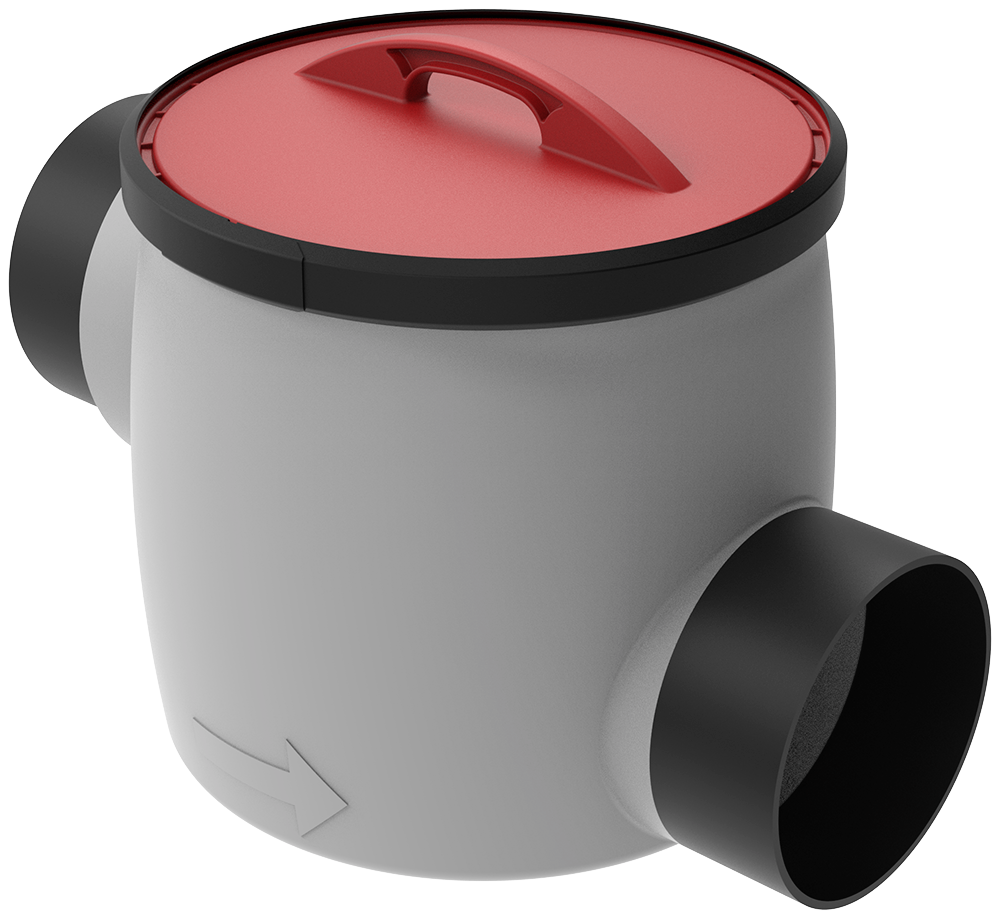

Sampling pot DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation of horizontal pipes DN 200 to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.3 kg
- Rabattgruppe: 11

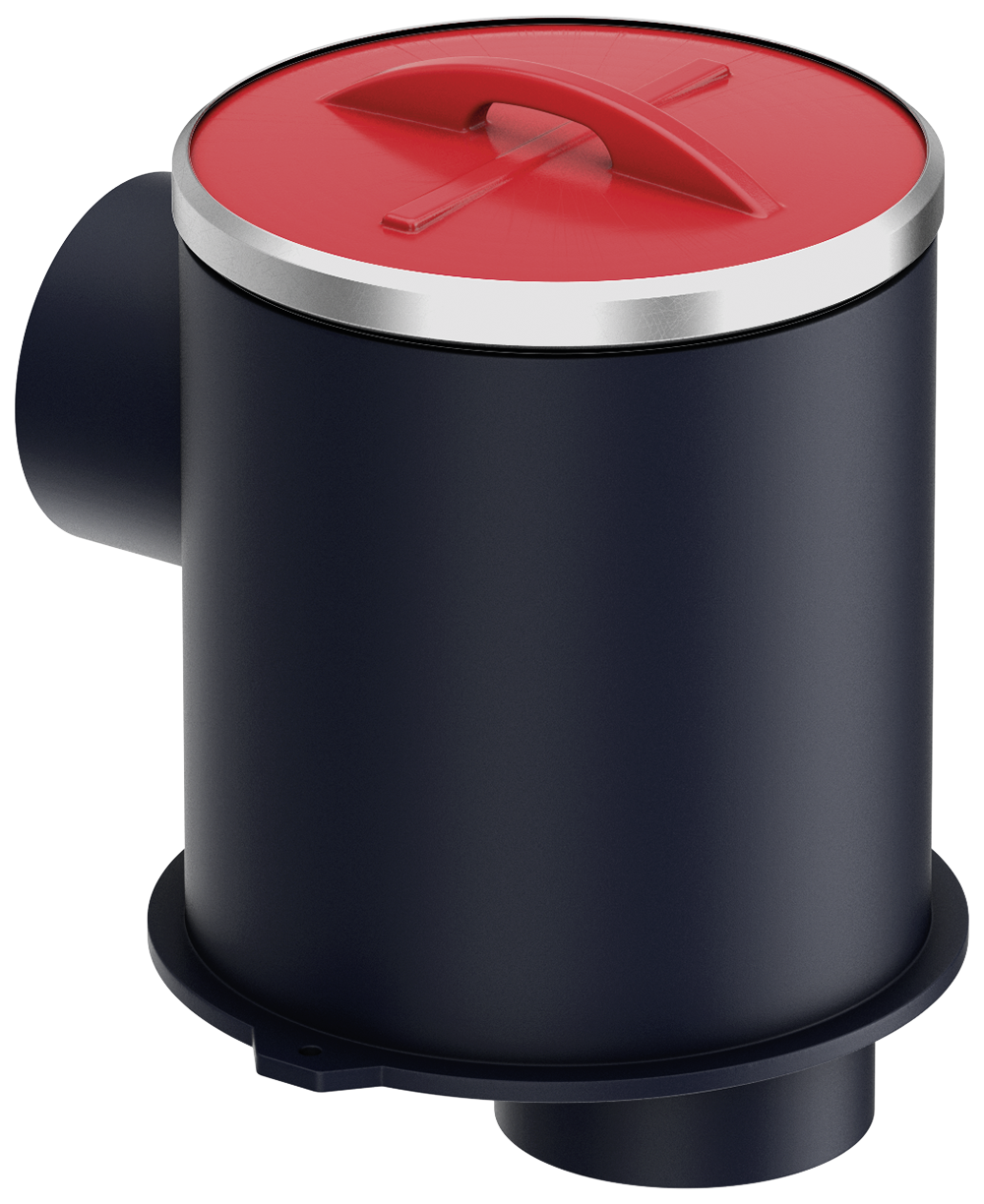

Sampling pot DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation in vertical pipes DN 200 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.2 kg
- Rabattgruppe: 11

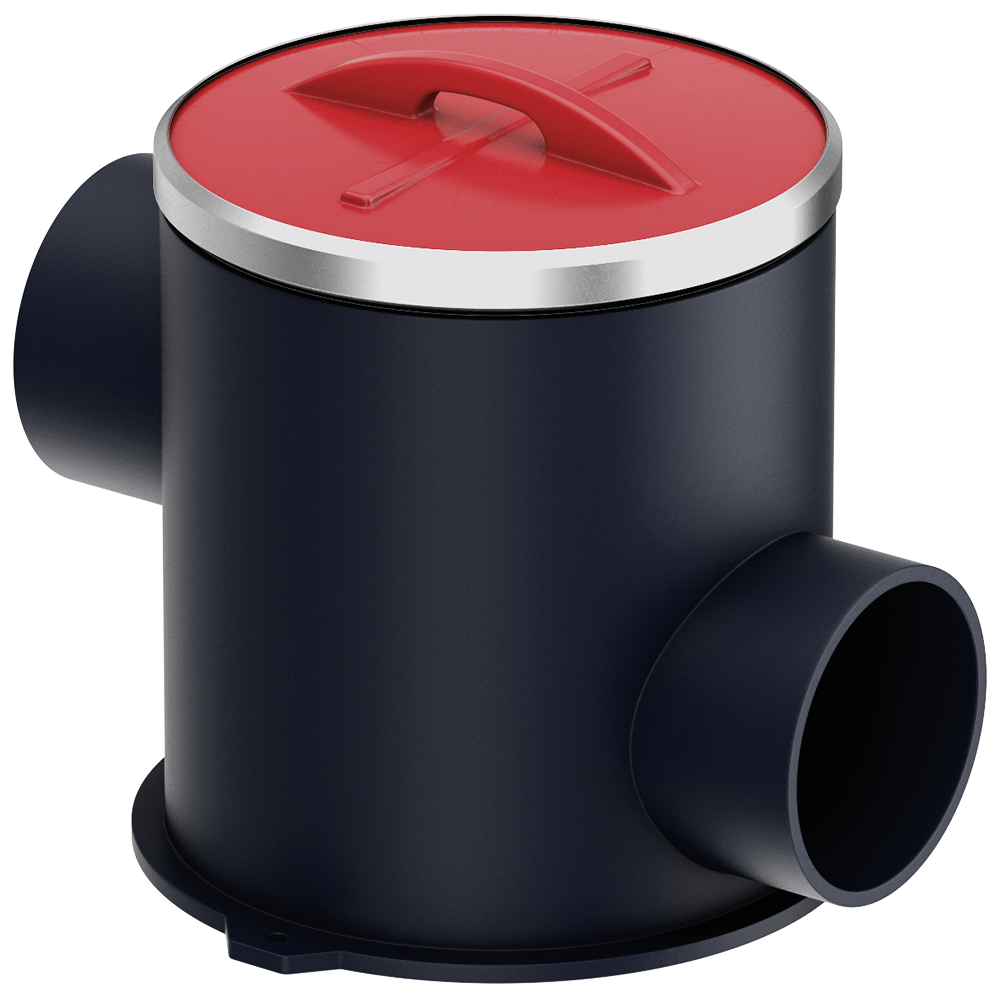

Coarse trap DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation in vertical pipes DN 200 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Basket made from stainless steel, material grade 316 to retain coarse substances
- Odour-proof maintenance opening DN 450
- Weight: 9.9 kg
- Rabattgruppe: 11
Sampling pot DN 250
Suitable for
- Fettabscheider LipuJet-P
- NS 30
Description
- Weight: 18 kg
- Rabattgruppe: 11
Sampling pot DN 250
Suitable for
- Fettabscheider LipuJet-P
- NS 30
Description
- Weight: 18 kg
- Rabattgruppe: 11
Coarse trap DN 250
Suitable for
- Fettabscheider LipuJet-P
- NS 30
Description
- Weight: 23 kg
- Rabattgruppe: 11
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
- Rabattgruppe: 11
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
- Rabattgruppe: 11
