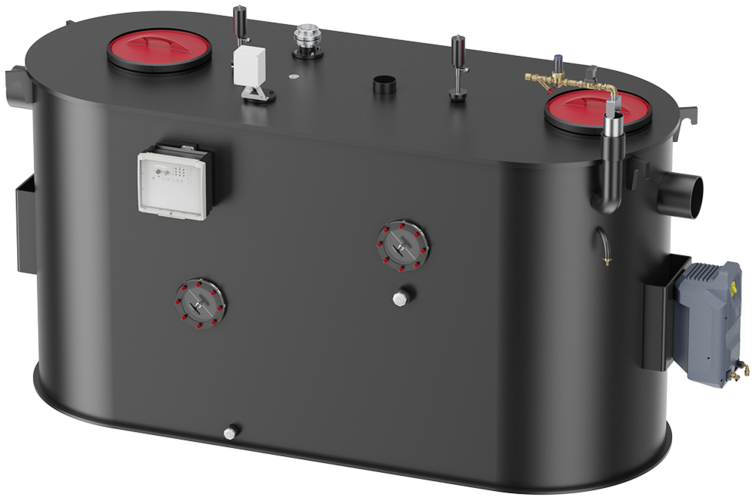

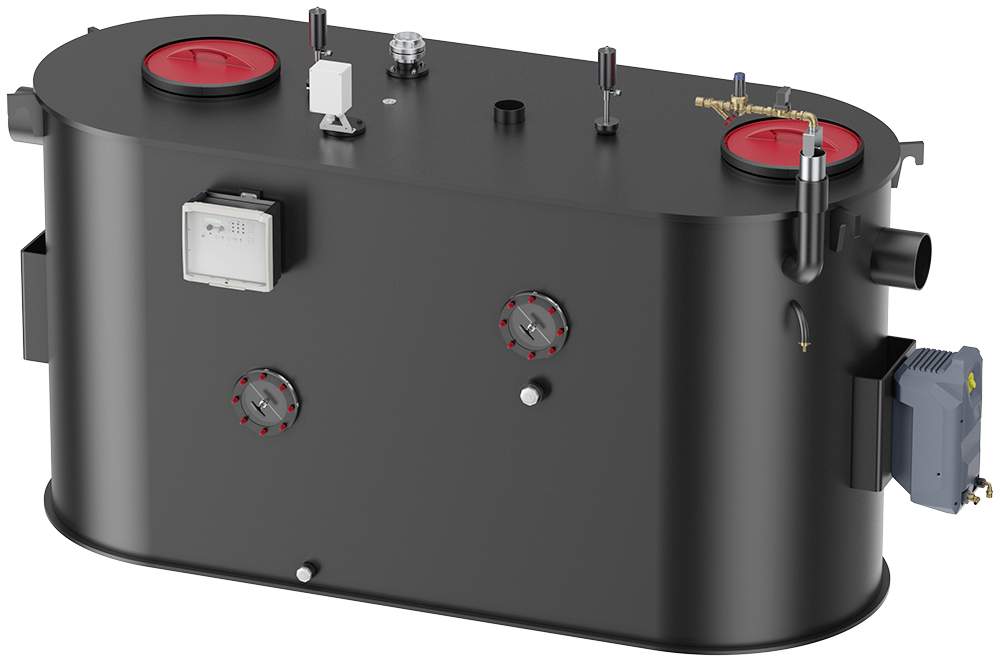

Grease separator LipuJet-P-OA extension stage3
Product benefits
- With two inspection windows for sludge and grease control
- With high pressure spray head for perfect inner body cleaning
- Control unit with presets and flexible adjustments (cleaning and filling times)
Product information
- Grease separator according to EN 1825 for installation inside frost-free rooms
- Manufactured of polyethylene in oval shape
- Two covers odour-proof ∅ 450 mm
- Inlet and outlet ∅ 200 mm (NS 15 – 25) or ∅ 250 mm (NS 30)
- Disposal connection ∅ 75 mm with Storz-B coupling R 2½"
- Automatically operated high pressure pump (4,2 kW) and connection high pressure spray head (175 bar) for combined mixing of the content and cleaning of the tank
- Automatically operated filling device R ¾” via solenoid valve
- Electronic plug 400 V / 50 (60) Hz / 16 A / 4,2 kW
- Two inspection windows with wiper
- Operating side left or right

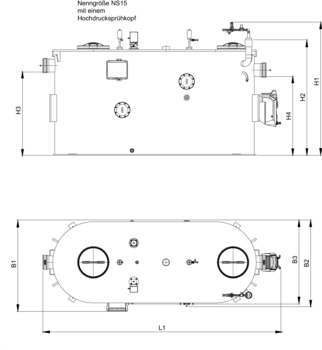

| Item number | Nominal size | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| L1 | H1 | H2 | H3 | H4 | B1 | B2 | B3 | ||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| 3815.80.42 | NS 15 | 3000 | 2070 | 1800 | 1300 | 1230 | 1420 | 1350 | 1320 |
| 3820.80.42 | NS 20 | 3700 | 2070 | 1800 | 1300 | 1230 | 1420 | 1350 | 1320 |
| 3825.80.42 | NS 25 | 4400 | 2070 | 1900 | 1300 | 1230 | 1420 | 1350 | 1320 |
| 3830.80.42 | NS 30 | 5100 | 2070 | 1900 | 1300 | 1230 | 1420 | 1350 | 1320 |
| 3815.80.32 | NS 15 | 3000 | 2070 | 1800 | 1300 | 1230 | 1420 | 1350 | 1320 |
| 3820.80.32 | NS 20 | 3700 | 2070 | 1800 | 1300 | 1230 | 1420 | 1350 | 1320 |
| 3825.80.32 | NS 25 | 4400 | 2070 | 1900 | 1300 | 1230 | 1420 | 1350 | 1320 |
| 3830.80.32 | NS 30 | 5100 | 2070 | 1900 | 1300 | 1230 | 1420 | 1350 | 1320 |
Inlet valve DN 200
Suitable for
- Wastewater lifting plant
- Muli-Star DDP 1/2
- Grease separator made of polyethylene
- From NS 15
Description
- Made out of PVC
- Push socket 200 mm with lip sealing ring on both sides
- Total dimensions: 264 x 637 mm (L x H)
- Weight: 8.4 kg
Grease layer thickness measuring device
Suitable for
- LipuJet-P
- Oval NS 1 – 10
- Round NS 2 – 22,5
- LipuJet-S
- Oval NS 1 – 10
- Round NS 2 – 20
- LipuSmart-P
- Oval NS 1 – 10
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
- With visual display of fill level
- With heated probe rod to increase reliability of operation
- Operating voltage: 230VAC/5 VA
- Max consumption approx. 12W
- Weight: 2.8 kg
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
Inlet valve DN 250
ACO Ozone Generator
Suitable for
- Grease separators, indoors
- Grease separators, outdoors
- Lifting stations
- Pumping stations
Description
- ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
- Material: acid-resistant stainless steel
Consists:
- ACO Ozone - ozone generator
- Size (L x W x H): 270 x 100 x 85 mm
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP20
- ACO Ozone pump - feed pump
- Size (L x W x H): 160 x 90 x 90 mm
- Integrated filter
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP54
- ACO Ozone bracket - wall bracket
- Size (L x W x H): 295 x 110 x 90 mm
- Hoses
Heating rod
Suitable for
- Grease separators
Description
- To liquefy grease layer
- Incl. control
- Electrical connector
- 400 V/50 Hz/6.0 kW
- Weight: 15 kg
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation of horizontal pipes DN 200 to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.3 kg
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation in vertical pipes DN 200 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.2 kg
Coarse trap DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation in vertical pipes DN 200 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Basket made from stainless steel, material grade 316 to retain coarse substances
- Odour-proof maintenance opening DN 450
- Weight: 9.9 kg
Sampling pot DN 250
Suitable for
- Fettabscheider LipuJet-P
- NS 30
Description
- Weight: 18 kg
Sampling pot DN 250
Suitable for
- Fettabscheider LipuJet-P
- NS 30
Description
- Weight: 18 kg
Coarse trap DN 250
Suitable for
- Fettabscheider LipuJet-P
- NS 30
Description
- Weight: 23 kg
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Remote control
Suitable for
- Grease separator
- LipuJet-P-OA/OAP NS 15 - 30
Description
- For internal fitting or fitting in connection boxes
- Control line without protective conductor on-site
- Up to 50 m: 7 x 1.0 mm²
- 50 – 200 m 7 x 1.5 mm²
- Weight: 1.5 kg
