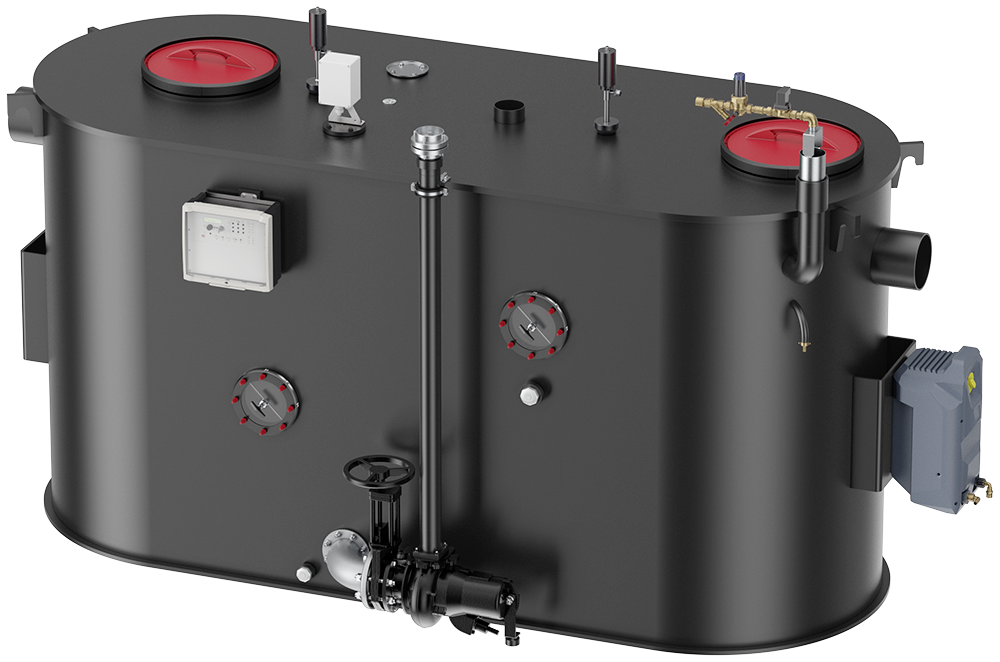

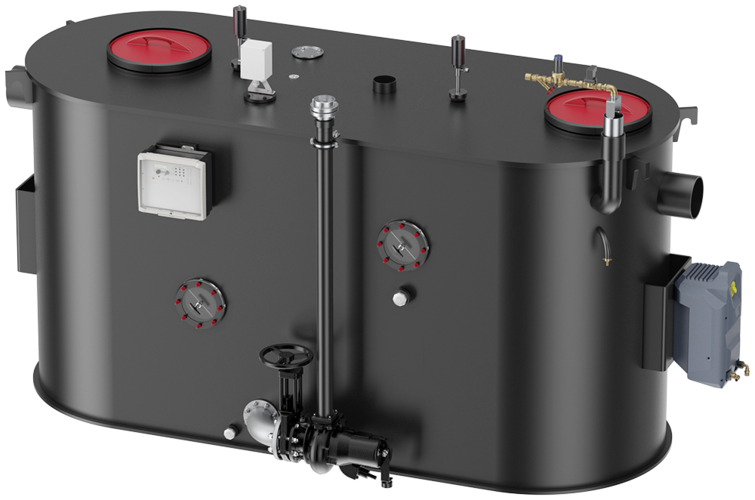

Grease separator LipuJet-P-OAP extension stage 3

Product benefits

  • With two inspection windows for sludge and grease control
  • With high pressure spray head for perfect inner body cleaning
  • Disposal pump for maximum lift heights up to 18 meters with 10 m3/h disposal performance
  • Control unit with presets and flexible adjustments (cleaning and filling times)

Product information

  • Grease separator according to EN 1825 for installation inside frost-free rooms
  • Manufactured of polyethylene in oval shape
  • Two covers odour-proof ∅ 450 mm
  • Inlet and outlet ∅ 200 mm (NS 15 – 25) or ∅ 250 mm (NS 30)
  • Automatically operated disposal pump (3,4 kW) with shut-off valve, disposal connection ∅ 75 mm with Storz-B coupling R 2½"
  • Automatically operated high pressure pump (4,2 kW) and connection high pressure spray head (175 bar) for combined mixing of the content and cleaning of the tank
  • Automatically operated filling device R ¾” via solenoid valve
  • 400 V / 50 (60) Hz / 16 A / 7,6 kW
  • Two inspection windows with wiper
  • Operating side left or right

Operation side: Right-hand

Nominal sizeContentsItem

number
Remember
Sludge trapGrease storeOverall
[l][l][l]
NS 15158063028503815.90.4211
NS 20207085037603820.90.4211
NS 252550107046603825.90.4211
NS 303020129055503830.90.4211

Operation side: left

Nominal sizeContentsItem

number
Remember
Sludge trapGrease storeOverall
[l][l][l]
NS 15158063028503815.90.3211
NS 20208085037603820.90.3211
NS 252550107046603825.90.3211
NS 303020129055503830.90.3211
Nominal sizeContentsOperation sideItem

number
Sludge trapGrease storeOverall
ImageNS 151580 l630 l2850 lRight-hand3815.90.42
ImageNS 202070 l850 l3760 lRight-hand3820.90.42
ImageNS 252550 l1070 l4660 lRight-hand3825.90.42
ImageNS 303020 l1290 l5550 lRight-hand3830.90.42
ImageNS 151580 l630 l2850 lleft3815.90.32
ImageNS 202080 l850 l3760 lleft3820.90.32
ImageNS 252550 l1070 l4660 lleft3825.90.32
ImageNS 303020 l1290 l5550 lleft3830.90.32

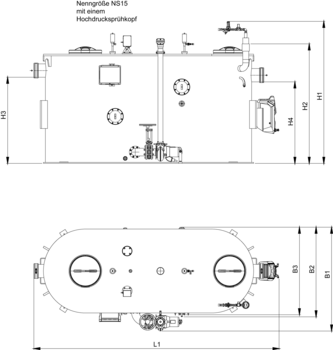

Item

number
Nominal sizeDimensions
L1H1H2H3H4B1B2B3
[mm][mm][mm][mm][mm][mm][mm][mm]
3815.90.42NS 1530002070180013001230156013501320
3820.90.42NS 2037002070180013001230156013501320
3825.90.42NS 2544002070190013001230156013501320
3830.90.42NS 3051002070190013001230156013501320
3815.90.32NS 1530002070180013001230156013501320
3820.90.32NS 2037002070180013001230156013501320
3825.90.32NS 2544002070190013001230156013501320
3830.90.32NS 3051002070190013001230156013501320
Suitable for
  • Wastewater lifting plant
    • Muli-Star DDP 1/2
  • Grease separator made of polyethylene
    • From NS 15
Description
  • Made out of PVC
  • Push socket 200 mm with lip sealing ring on both sides
  • Total dimensions: 264 x 637 mm (L x H)
  • Weight: 8.4 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg
  • Rabattgruppe: 11

Inlet valve DN 250

Description
  • Rabattgruppe: 11

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses
  • Rabattgruppe: 11

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg
  • Rabattgruppe: 11

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg
  • Rabattgruppe: 11

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg
  • Rabattgruppe: 11

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.9 kg
  • Rabattgruppe: 11

Sampling pot DN 250

Suitable for
  • Fettabscheider LipuJet-P
    • NS 30
Description
  • Weight: 18 kg
  • Rabattgruppe: 11

Sampling pot DN 250

Suitable for
  • Fettabscheider LipuJet-P
    • NS 30
Description
  • Weight: 18 kg
  • Rabattgruppe: 11

Coarse trap DN 250

Suitable for
  • Fettabscheider LipuJet-P
    • NS 30
Description
  • Weight: 23 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg
  • Rabattgruppe: 11

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg
  • Rabattgruppe: 11

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Remote control

Suitable for
  • Grease separator
    • LipuJet-P OA/OAP/RA/RAP
    • LipuJet-S OA/OAP/RA/RAP
    • LipuMax-P-DA
    • LipuSmart-P-OA/OAP
  • Starch separator FapuJet
Description
  • For internal fitting or fitting in connection boxes
  • Control line without protective conductor on-site
    • Up to 50 m: 7 x 1.0 mm²
    • 50 – 200 m 7 x 1.5 mm²
  • Weight: 1 kg
