Grease separator LipuJet-P-OD extension stage 1

Grease separator LipuJet-P-OD extension stage 1

Product benefits

  • With two inspection windows for sludge and grease control
  • Optionally with filling device
  • Optionally with grease level sensor
Contact
Downloads

Product information

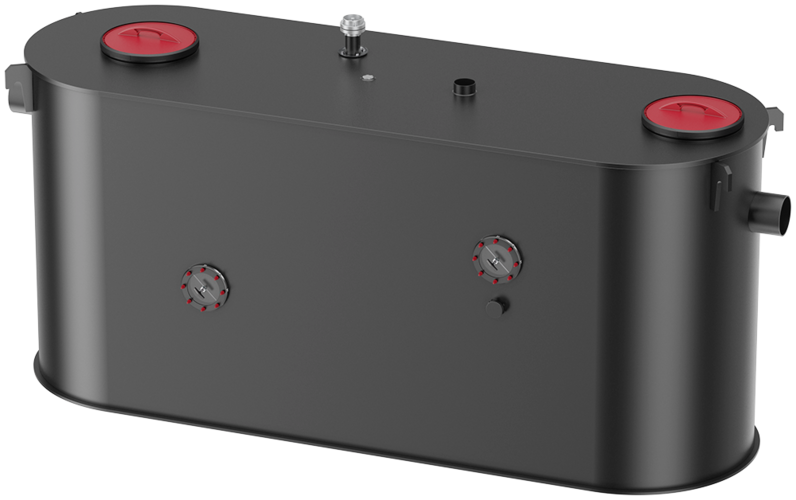

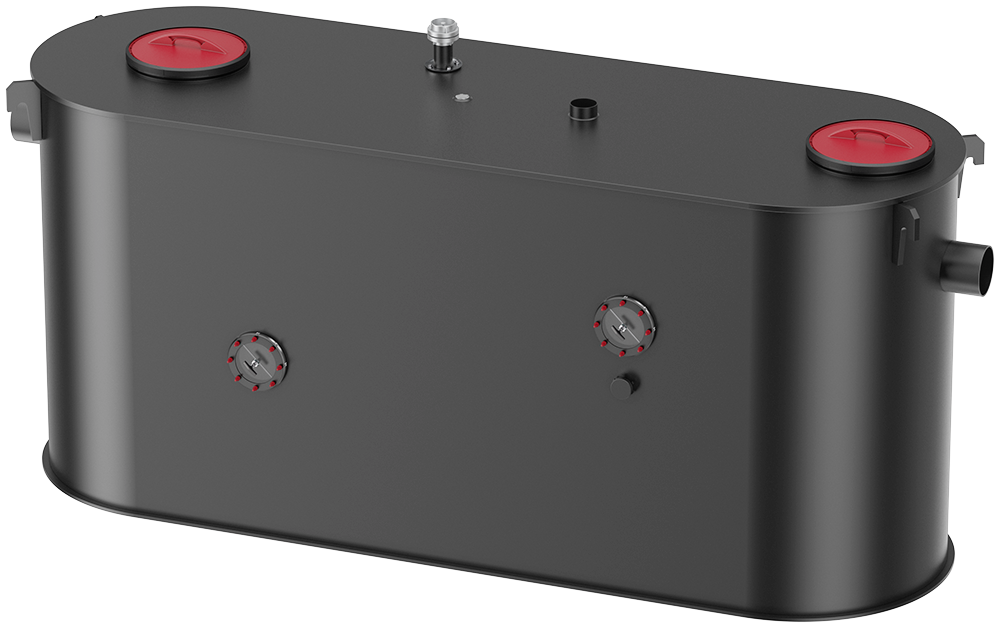

  • Grease separator according to EN 1825 for installation inside frost-free rooms
  • Manufactured of polyethylene in oval shape
  • Two covers odour-proof ∅ 450 mm
  • Inlet and outlet ∅ 200 mm (NS 15 – 25) or ∅ 250 mm (NS 30)
  • Two inspection windows with wiper
  • Operating side left or right

Operation side: Right-hand

Nominal sizeContentsItem

number		Remember
Sludge trapGrease storeOverall
[l][l][l]
NS 15158063028503815.45.42
NS 20207085037603820.45.42
NS 252550107046603825.45.42
NS 303020129055503830.45.42

Operation side: left

Nominal sizeContentsItem

number		Remember
Sludge trapGrease storeOverall
[l][l][l]
NS 15158063028503815.45.32
NS 20207085037603820.45.32
NS 252550107046603825.45.32
NS 303020129055503830.45.32
Nominal sizeContentsOperation sideItem

number
Sludge trapGrease storeOverall
ImageNS 151580 l630 l2850 lRight-hand3815.45.42
ImageNS 202070 l850 l3760 lRight-hand3820.45.42
ImageNS 252550 l1070 l4660 lRight-hand3825.45.42
ImageNS 303020 l1290 l5550 lRight-hand3830.45.42
ImageNS 151580 l630 l2850 lleft3815.45.32
ImageNS 202070 l850 l3760 lleft3820.45.32
ImageNS 252550 l1070 l4660 lleft3825.45.32
ImageNS 303020 l1290 l5550 lleft3830.45.32

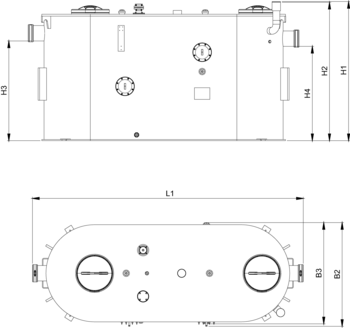

Item

number		Nominal sizeDimensions
L1H1H2H3H4B2B3
[mm][mm][mm][mm][mm][mm][mm]
3815.45.42NS 152820181018001300123013501320
3820.45.42NS 203520181018001300123013501320
3825.45.42NS 254220191019001300123013501320
3830.45.42NS 304920191019001300123013501320
3815.45.32NS 152820181018001300123013501320
3820.45.32NS 203520181018001300123013501320
3825.45.32NS 254220191019001300123013501320
3830.45.32NS 304920191019001300123013501320

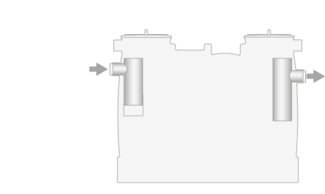

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning

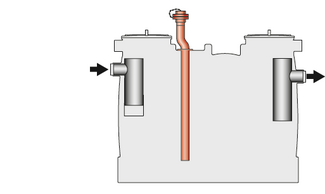

Features of upgrade level 1:

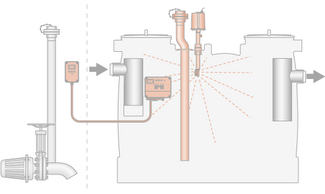

Features of upgrade level 3:



Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg
Item no.
3300.11.50

Inlet valve DN 250

Item no.
0150.72.24

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses
Item no.
7980.90.00

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg
Item no.
7300.01.00

Filling device

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With DVGW / KIWA approval and inclined valve R ¾ "
  • With pressure relief valve with dirt trap
  • Weight: 3.5 kg
Item no.
3300.11.22

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg
Item no.
3300.09.31

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg
Item no.
3300.10.31

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.9 kg
Item no.
3667.00.06

Sampling pot DN 250

Suitable for
  • Fettabscheider LipuJet-P
    • NS 30
Description
  • Weight: 18 kg
Item no.
3300.09.41

Sampling pot DN 250

Suitable for
  • Fettabscheider LipuJet-P
    • NS 30
Description
  • Weight: 18 kg
Item no.
3300.10.41

Coarse trap DN 250

Suitable for
  • Fettabscheider LipuJet-P
    • NS 30
Description
  • Weight: 23 kg
Item no.
3667.00.08

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg
Item no.
7601.80.22

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg
Item no.
7601.80.23
