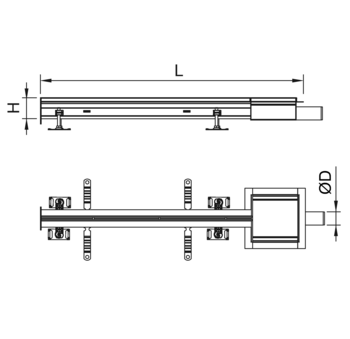

End outlet
Product benefits
- System with 8 mm heelsafe slot, ideal for walking barefoot
- Suitable for both applications inside buildings and on the outside
- V-shaped bottom for better water flow even at low flow rates and for better self-cleaning performance
- EasyFix adjustable leveling feet for simple laying installation
- EDPM gasket to guarantee a perfect seal
- Different grids covering the drain elements
Product information
- Modular system in elements from 50 cm to 3 m connectable through flanges equipped with gaskets and bolts for a perfect fit water tightness
- Anchoring brackets to the concrete
- Flange with holes for assembling the elements using bolts
- Available with or without internal slope
- Extended edge for optimal liquid waterproofing under the tile
- Material 1.4404 (316L) on request
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
Foul air trap + silt basket (for outlet 110 mm)
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
Stainless steel
- Height 50 mm
- Material grade 1.4301 (304)
Odour trap
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
Stainless steel
- Height 50 mm
- Material grade 1.4301 (304)
Sieve (for outlet 110 mm)
Suitable for
- ACO slot channel 20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
Description
- Stainless steel
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO slot channel20
- ACO modular box channel 125
- ACO modular box channel 200
- ACO modular slot channel 20
- Don't combine with FAT
- Suitable wit P-trap (ACO pipe chapter)
Description
- Stainless steel
- Material grade 1.4301 (304)
