ACO tile grating

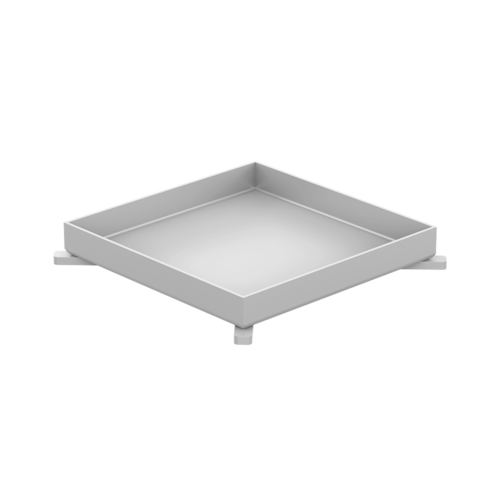

ACO Tile Grating 703019

Grating dimensions	Class	Material	Item number	Downloads	Remember
Size
[mm]
168 x 168	L 15	1.4301	446860
168 x 168	L 15	1.4404	446861
218 x 218	L 15	1.4301	446862
218 x 218	L 15	1.4404	446863

	Grating dimensions	Class	Material	Item number
	Size	Class	Material	Item number
	168 x 168 mm	L 15	1.4301	446860
	168 x 168 mm	L 15	1.4404	446861
	218 x 218 mm	L 15	1.4301	446862
	218 x 218 mm	L 15	1.4404	446863
