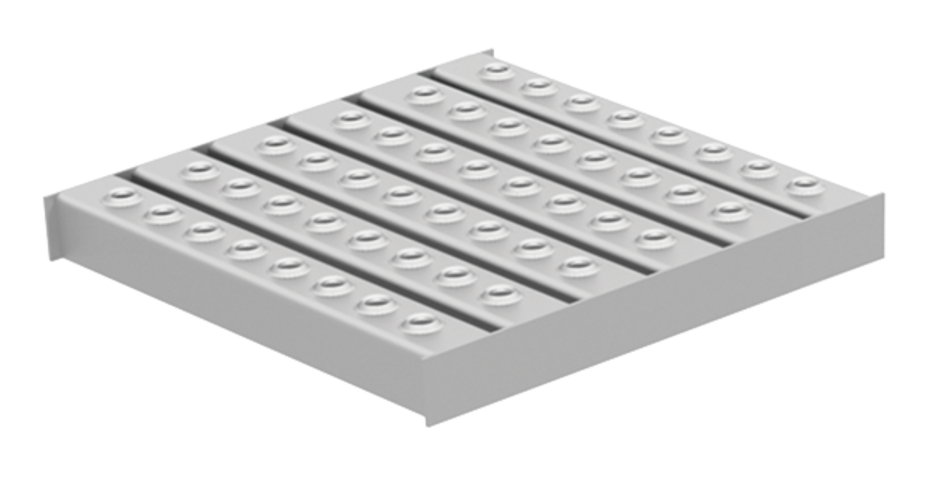

ACO multi-slot 5 grating

Product information

  • Certified according to EN 1253-1
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Slip resistant solution available
  • Available for load class L 15
  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document No. 8, 13, 44 is not applied for this product
Gull top size

compatibility
Grating dimensionsClassMaterialItem

number
Remember
Size
[mm]
Slip resistantGully top size: 250 x 250 mm218 x 218L 151.4301408033
Slip resistantGully top size: 250 x 250 mm218 x 218L 151.4404408133
Slip resistantGully top size: 200 x 200 mm168 x 168L 151.4301408094
Slip resistantGully top size: 200 x 200 mm168 x 168L 151.4404408194
Gull top size

compatibility
Grating dimensionsClassMaterialItem

number
Size
[[RESOURCEIM0005400.TIF]]Slip resistantGully top size: 250 x 250 mm218 x 218 mmL 151.4301408033
[[RESOURCEIM0010436.TIF]][[RESOURCEIM0005400.TIF]]Slip resistantGully top size: 250 x 250 mm218 x 218 mmL 151.4404408133
[[RESOURCEIM0010443.TIF]][[RESOURCEIM0005400.TIF]]Slip resistantGully top size: 200 x 200 mm168 x 168 mmL 151.4301408094
[[RESOURCEIM0010423.TIF]][[RESOURCEIM0005400.TIF]]Slip resistantGully top size: 200 x 200 mm168 x 168 mmL 151.4404408194
