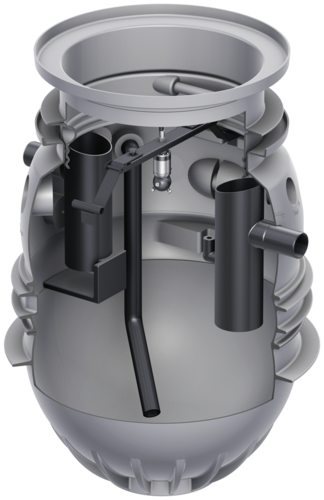

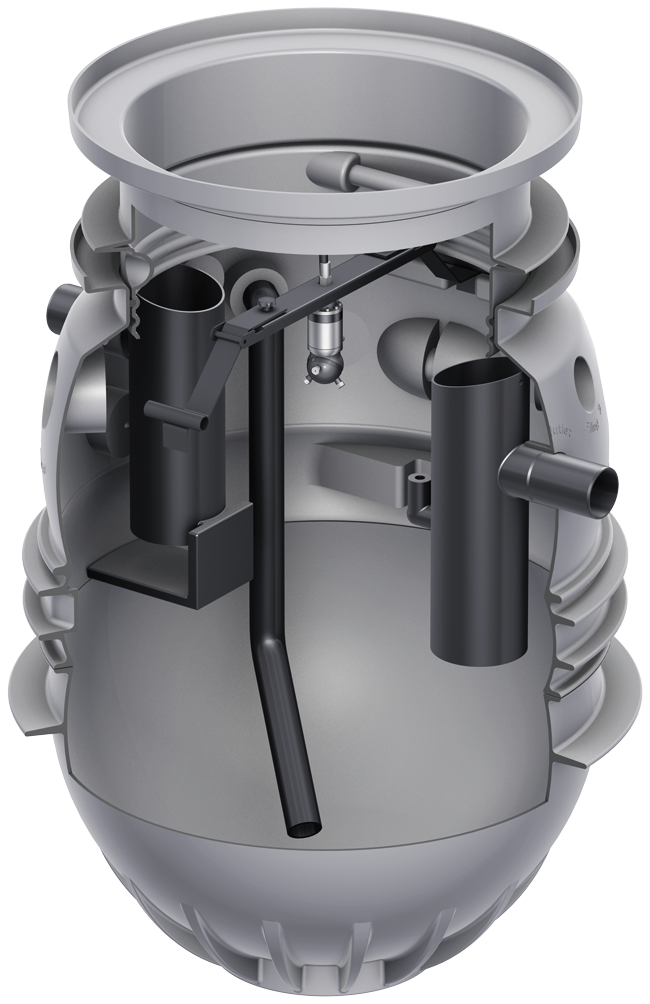

Grease separator LipuMax-P-DM extension stage 2
Product information
- Grease separator plant as per DIN EN 1825 and DIN 4040-100
- For underground installation
- Emptying via suction line DN 65 PN 10
- With PE couplings for two-sided thread connection 75/75 mm for suction line
- With fire hose quick coupling 75 B and 2½" blank cap
- Filling device with ball valve (connection ¾") for manual refilling
- Hydro-mechanical internal cleaning:
- High pressure pump with storage tank for installation indoors with cold-water supply
- Manual operation of the high pressure internal cleaning with pump:
- Nominal pressure: 175 bar
- Flow volume: 11,6 l/min
- Electrical connector: 400 V/50 Hz/16 A/4,2 kW
- Suitable top sections

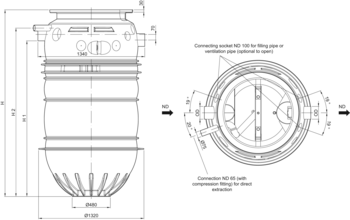

| Nominal size | Sludge trap | Dimensions | |||
|---|---|---|---|---|---|
| D | H | H1 | H2 | ||
| [l] | [mm] | [mm] | [mm] | [mm] | |
| NS 2 | 245 | 110 | 1380 | 1020 | 1158 |
| 460 | 110 | 1595 | 1235 | 1375 | |
| NS 4 | 460 | 110 | 1595 | 1235 | 1375 |
| 980 | 110 | 2130 | 1770 | 1910 | |
| NS 5.5 | 570 | 160 | 2130 | 1745 | 1900 |
| 1065 | 160 | 2610 | 2225 | 2382 | |
| NS 7 | 730 | 160 | 2345 | 1960 | 2117 |
| NS 8.5 | 860 | 160 | 2560 | 2175 | 2329 |
| NS 10 | 1005 | 160 | 2830 | 2445 | 2599 |

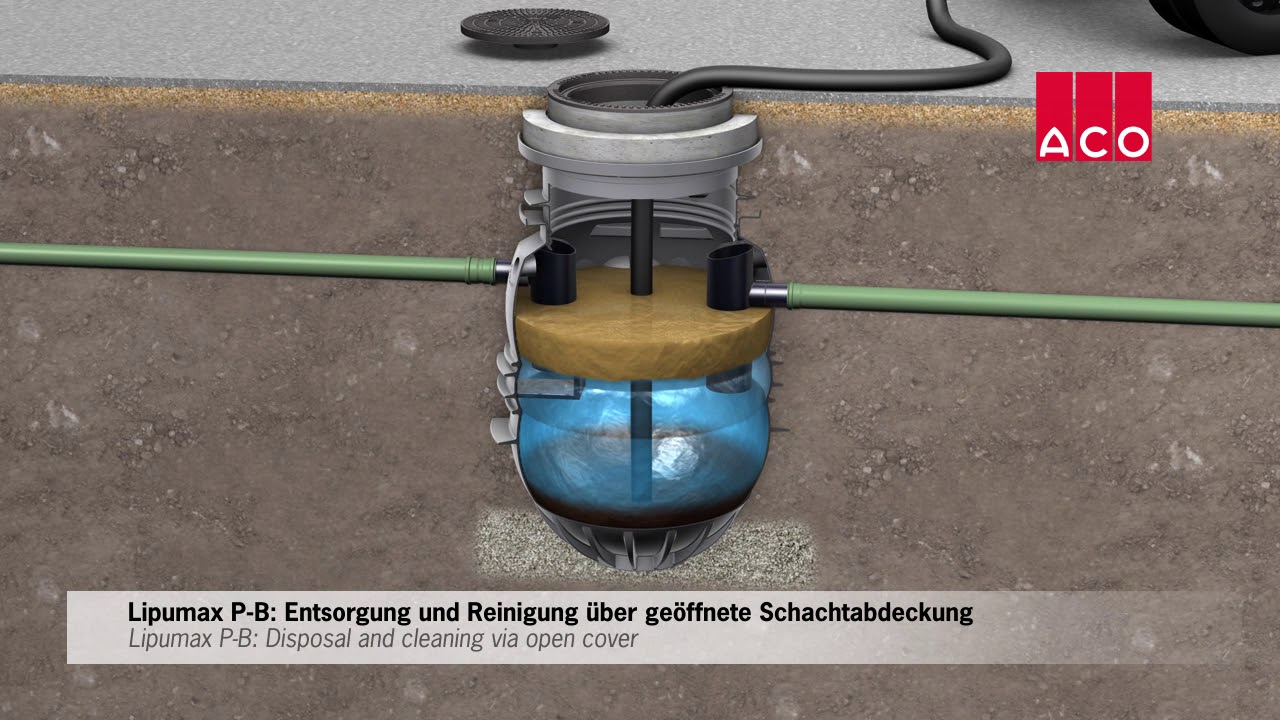

Features of base version:
- Emptying and cleaning via maintenance opening
- Odour build-up during emptying and cleaning
LipuMax-P-SD
Features of upgrade level 1:
- Connection for direct suction
- Odour build-up only during cleaning
Features of upgrade level 2:
- Connection for direct suction
- High pressure cleaning operated manually
- No odour build-up
Features of upgrade level 3:
- Connection for direct suction
- Completely automatic programme
- No odour build-up
Top sections standard for separators
Sampling shafts set 450
Sampling shafts body 800
Disposal shafts
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 10 m
- Weight: 6.4 kg
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 20 m
- Weight: 7.8 kg
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 30 m
- Weight: 9.6 kg
Grease layer thickness measuring device
Suitable for
- Lipumax P
Description
- For electronic measurement of the grease layer
- Suitable for liquid and/or solidifying greases
- Analyser with ready to plug-in connection cable, length: 3 m
- With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
- With visual display of the level for prewarning and full signal
- With heated probe rod for increasing operating reliability
- Operating voltage: 230 V/50 Hz
- Max. consumption approx. 12 W
- Cable length: 10 m
- Weight: 2 kg
Grease layer thickness measuring device
Suitable for
- Lipumax P
Description
- For electronic measurement of the grease layer
- Suitable for liquid and/or solidifying greases
- Analyser with ready to plug-in connection cable, length: 3 m
- With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
- With visual display of the level for prewarning and full signal
- With heated probe rod for increasing operating reliability
- Operating voltage: 230 V/50 Hz
- Max. consumption approx. 12 W
- Cable length: 20 m
- Weight: 2.5 kg
Grease layer thickness measuring device
Suitable for
- Lipumax P
Description
- For electronic measurement of the grease layer
- Suitable for liquid and/or solidifying greases
- Analyser with ready to plug-in connection cable, length: 3 m
- With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
- With visual display of the level for prewarning and full signal
- With heated probe rod for increasing operating reliability
- Operating voltage: 230 V/50 Hz
- Max. consumption approx. 12 W
- Cable length: 30 m
- Weight: 3 kg
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg

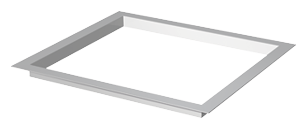

In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
Sampling device
Suitable for
- ACO separators
- Installation depth up to 3000 mm
Description
- With integrated sampling
- For taking a sample from the wastewater flow
- Consisting of:
- Sampling pump with suction coupling
- Connection hose with suction coupling and threaded connector
- Weight: 3 kg
Sampling device
Suitable for
- ACO separators
- Installation depth up to 5500 mm
Description
- With integrated sampling
- For taking a sample from the wastewater flow
- Consisting of:
- Sampling pump with suction coupling
- Connection hose with suction coupling and threaded connector
- Weight: 4.5 kg
In-wall frame
Suitable for
- Connection box Art. No.: 7601.80.22
Description
- Made of stainless steel
- Dimensions: 421 x 381 x 25 mm (W x H x D)
- Weight: 1.1 kg
Road cap
Suitable for
- Version with direct extraction D
- Version for manual inner cleaning DM
- Version for automatic inner cleaning DA
Description
- Manhole cover in accordance with DIN EN 124/DIN 1229
- Load class: A 15
- Frame and cover made of cast iron
- Diameter: 300 mm
- Clear width: 250 mm
- Overall height 100 mm
- To suction pipe DN 80 from Lipumax-P
- Consisting of:
- Short PE-HD connection line DN 65
- Storz coupling B
- Blank cover B
- Weight: 10 kg

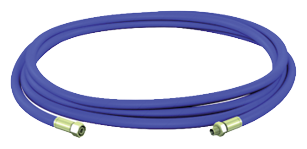

Washing hose
Suitable for
- Manual inner cleaning type DM
- Automatic inner cleaning version DA
- Length: 10 m
Description
- For connecting a high-pressure pump in the building and high-pressure cleaning head in the grease separator
- 1 SN 10 – 150 DKO/DKO-L‑90°
- Weight: 10 kg
Washing hose
Suitable for
- Manual inner cleaning type DM
- Automatic inner cleaning version DA
- Length: 20 m
Description
- For connecting a high-pressure pump in the building and high-pressure cleaning head in the grease separator
- 1 SN 10 – 150 DKO/DKO-L‑90°
- Weight: 19 kg
Washing hose
Suitable for
- Manual inner cleaning type DM
- Automatic inner cleaning version DA
- Length: 30 m
Description
- For connecting a high-pressure pump in the building and high-pressure cleaning head in the grease separator
- 1 SN 10 – 150 DKO/DKO-L‑90°
- Weight: 28 kg
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
Sampling device
Suitable for
- Grease separator LipuMax-P for underground installation
- Light oil separator for underground installation
- Stach seperator FapuMax-P for underground installation
Description
- Consisting of:
- Sampling pot with suction coupling
- Connection hose with suction coupling and connection gland
- Hose length: 3 m
- Weight: 3.4 kg
Extension
Suitable for
- Disposal shaft
- Typ 450
Description
- Made from plastic, material polyethylene
- For fitting on upstream shaft for deep installations
- Structure height: 100 – 650 mm
- (can be reduced to 45 mm by cutting off at cutting marks)
- Max. two extension can be used
- Weight: 10.9 kg
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 60 mm
- Without seal
- Displacement-proof
- Height
- 60 mm excluding mortar joints
- 70 mm including mortar joints
- Weight: 50 kg
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 80 mm
- Without seal
- Displacement-proof
- Height
- 80 mm excluding mortar joints
- 90 mm including mortar joints
- Weight: 60 kg
Support ring
Suitable for
- Grease separator LipuMax-P for underground installation
- Lipulift-P Serie
- Starch separator FapuMax-P for underground installation
Description
- Made from concrete
- Diameter: 625 mm
- Thickness: 100 mm
- Without seal
- Displacement-proof
- Height
- 100 mm excluding mortar joints
- 110 mm including mortar joints
- Weight: 70 kg
Stepox
Description
- Weight: 5.9 kg
Road cap
Suitable for
- Grease separator for underground installation
- LipuMax-P-D
- LipuMax-P-DM
- LipuMax-P-DA
- Stach separators FapuMax-P-DA for underground installation
- Oil separators Coalisator-P
Description
- Shaft cover tested to DIN EN 124/DIN 1229
- Load class: A 15
- Frame and cover made of cast iron
- Diameter: 300 mm
- Clear width: 250 mm
- Weight: 9.8 kg
Sealing sleeves DN 100 NBR
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- As insulation between air connection on tank and air line.
- Weight: 0.1 kg
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 10 m
- Weight: 10 kg
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 20 m
- Weight: 10.3 kg
Washing hose 1 SN 10 – 150 DKO/DKO-L-90°
Suitable for
- Grease separator for underground installation
- LipuMax-P-DM
- LipuMax-P-DA
- Stach seperator FapuMax-P-DA for underground installation
- LipuLift-P-DA/-DAP
Description
- To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
- Length: 30 m
- Weight: 19 kg
Cable feedthrough ND 100
Suitable for
- LipuMax-P-B / D and LipuLift-P/PF-B / D (In conjunction with an ACO grease layer measurement)
- LipuMax-P/PH-B/D
- Muli-Flex
Description
- Material: V4A
- For simple and fast sealing of up to 5 cables
- Seal against pressurised water
- Interchangeable insert 2x5mm, 2x7mm, 2x16mm, 1x12mm, 1x14mm
- Weight: 1 kg
Operating Logbook
Suitable for
- Grease separator
- For underground installation
- For free-standing installation
Description
- Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
- Format: A4 with double filing rings
- Size: 60 pages
- Laid out to cover 5 years
- Weight: 0.3 kg
