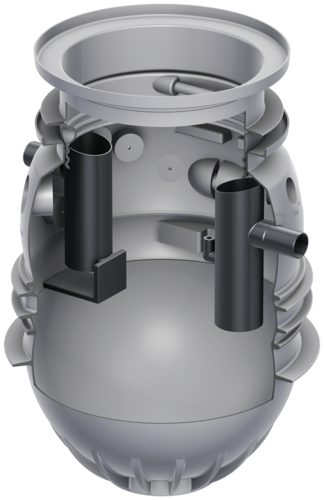

Grease separator LipuMax-P-B basic model

Product benefits

  • For gully top designs for load class D 400, shaft has buoyancy safety up to the upper side of the shaft manhole cover without need for on-site concrete castings.
  • Proven stability: 50 years

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For underground installation
  • Emptying and cleaning via shaft manhole cover
  • Suitable top sections
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Remember
Sludge trapGrease storeOverall
[l][l][l][kg]
NS 2DN 100245270720633202.80.0011
460270930793202.80.1011
NS 4DN 100460270930793204.80.0011
9802701465933204.80.1011
NS 5.5DN 1505702301465933205.80.0011
106523019601073205.80.1011
NS 7DN 15073028516751083207.80.0011
NS 8.5DN 15086036019001153208.80.0011
NS 10DN 150100541521701253210.80.0011
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Sludge trapGrease storeOverall
ImageNS 2DN 100245 l270 l720 l63 kg3202.80.00
ImageNS 2DN 100460 l270 l930 l79 kg3202.80.10
ImageNS 4DN 100460 l270 l930 l79 kg3204.80.00
ImageNS 4DN 100980 l270 l1465 l93 kg3204.80.10
ImageNS 5.5DN 150570 l230 l1465 l93 kg3205.80.00
ImageNS 5.5DN 1501065 l230 l1960 l107 kg3205.80.10
ImageNS 7DN 150730 l285 l1675 l108 kg3207.80.00
ImageNS 8.5DN 150860 l360 l1900 l115 kg3208.80.00
ImageNS 10DN 1501005 l415 l2170 l125 kg3210.80.00

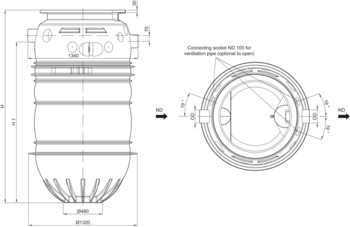

Scale drawing
Nominal sizeSludge trapDimensions
DHH1
[l][mm][mm][mm]
NS 224511013801020
46011015951235
NS 446011015951235
98011021301770
NS 5.557016021301745
106516026102225
NS 773016023451960
NS 8.586016025602175
NS 10100516028302445

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning
LipuMax-P-SD

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning
Lipumax- P-D

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up
LipuMax-P-DM

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • No odour build-up
LipuMax-P-DA

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 10 m
  • Weight: 6.4 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 20 m
  • Weight: 7.8 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 30 m
  • Weight: 9.6 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Suitable for
  • Lipumax P
Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 10 m
  • Weight: 2 kg

Grease layer thickness measuring device

Suitable for
  • Lipumax P
Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 20 m
  • Weight: 2.5 kg

Grease layer thickness measuring device

Suitable for
  • Lipumax P
Description
  • For electronic measurement of the grease layer
  • Suitable for liquid and/or solidifying greases
  • Analyser with ready to plug-in connection cable, length: 3 m
  • With two floating changeover contacts for indicating full signal (100 %) and prewarning of the fill state (80 %)
  • With visual display of the level for prewarning and full signal
  • With heated probe rod for increasing operating reliability
  • Operating voltage: 230 V/50 Hz
  • Max. consumption approx. 12 W
  • Cable length: 30 m
  • Weight: 3 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg
  • Rabattgruppe: 11

Sampling device

Suitable for
  • ACO separators
  • Installation depth up to 3000 mm
Description
  • With integrated sampling
  • For taking a sample from the wastewater flow
  • Consisting of:
    • Sampling pump with suction coupling
    • Connection hose with suction coupling and threaded connector
  • Weight: 3 kg

Sampling device

Suitable for
  • ACO separators
  • Installation depth up to 5500 mm
Description
  • With integrated sampling
  • For taking a sample from the wastewater flow
  • Consisting of:
    • Sampling pump with suction coupling
    • Connection hose with suction coupling and threaded connector
  • Weight: 4.5 kg

Sealing sleeve DN/OD 110

Suitable for
  • Lipumax P
    • Basic type B
    • Type with direct suction D
Description
  • As seal between ventilation connection on the tank and ventilation pipe
  • Scope of supply: 2
  • Weight: 0.2 kg

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg
  • Rabattgruppe: 11

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Extension

Suitable for
  • Disposal shaft
    • Typ 450
Description
  • Made from plastic, material polyethylene
  • For fitting on upstream shaft for deep installations
  • Structure height: 100 – 650 mm
    • (can be reduced to 45 mm by cutting off at cutting marks)
  • Max. two extension can be used
  • Weight: 10.9 kg
  • Rabattgruppe: 11

Sampling device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Light oil separator for underground installation
  • Stach seperator FapuMax-P for underground installation
Description
  • Consisting of:
    • Sampling pot with suction coupling
    • Connection hose with suction coupling and connection gland
    • Hose length: 3 m
  • Weight: 3.4 kg
  • Rabattgruppe: 11

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg
  • Rabattgruppe: 11

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg
  • Rabattgruppe: 11

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg
  • Rabattgruppe: 11

Stepox

Description
  • Weight: 5.9 kg
  • Rabattgruppe: 11

Road cap

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-D
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach separators FapuMax-P-DA for underground installation
  • Oil separators Coalisator-P
Description
  • Shaft cover tested to DIN EN 124/DIN 1229
  • Load class: A 15
  • Frame and cover made of cast iron
  • Diameter: 300 mm
  • Clear width: 250 mm
  • Weight: 9.8 kg
  • Rabattgruppe: 1

Sealing sleeves DN 100 NBR

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • As insulation between air connection on tank and air line.
  • Weight: 0.1 kg
  • Rabattgruppe: 11

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP
Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 10 m
  • Weight: 10 kg
  • Rabattgruppe: 11

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP
Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 20 m
  • Weight: 10.3 kg
  • Rabattgruppe: 11

Washing hose 1 SN 10 – 150 DKO/DKO-L-90°

Suitable for
  • Grease separator for underground installation
    • LipuMax-P-DM
    • LipuMax-P-DA
  • Stach seperator FapuMax-P-DA for underground installation
  • LipuLift-P-DA/-DAP
Description
  • To connect a high-pressure pump in the building and a high-pressure cleaning head in the grease separator
  • Length: 30 m
  • Weight: 19 kg
  • Rabattgruppe: 11

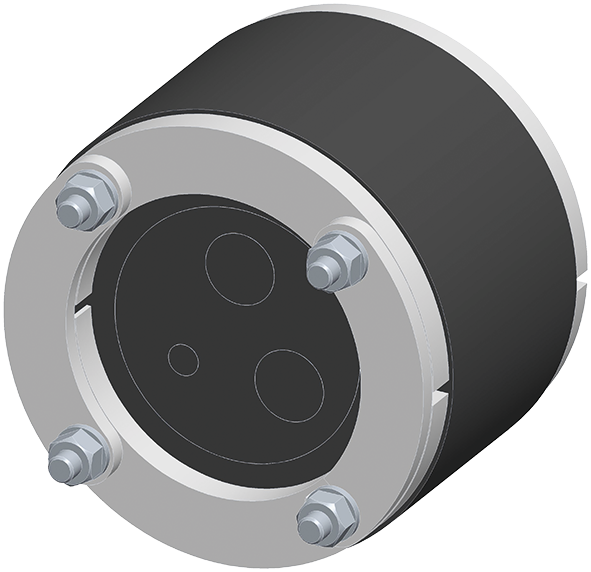

Cable feedthrough ND 100

Suitable for
  • LipuMax-P-B / D and LipuLift-P/PF-B / D (In conjunction with an ACO grease layer measurement)
  • LipuMax-P/PH-B/D
  • Muli-Flex
Description
  • Material: V4A
  • For simple and fast sealing of up to 5 cables
  • Seal against pressurised water
  • Interchangeable insert 2x5mm, 2x7mm, 2x16mm, 1x12mm, 1x14mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
  • Rabattgruppe: 11
