Sampling shafts body 800

Product information

From polyethylene
Inlet and outlet according to version
DN 100/DN 150/DN 200
Shaft diameter: 846 mm
Body for top section systems of load classes
- A 15
- B 125
- D 400
Weight: 36 kg

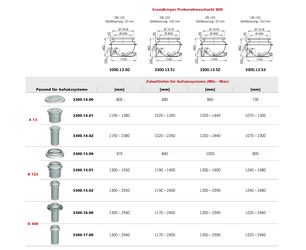

	Description		Version	Item number		Downloads	Remember
	Body sampling shaft 800 DN 100	Suitable for extension systems for separators Inlet/gully: DN 100/100 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 800 mm 3300.14.01: 1150 – 1380 mm 3300.14.02: 1150 – 2380 mm B 125 3300.15.00: 970 mm 3300.15.01: 1300 – 1550 mm 3300.15.02: 1300 – 2550 mm D 400 3300.16.00: 1300 – 2540 mm 3300.17.00: 1300 – 2540 mm	slope jump: 33 mm	3300.13.50	11
	Body sampling shaft 800 DN 100	Suitable for extension systems for separators Inlet/gully: DN 100/100 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 680 mm 3300.14.01: 1020 – 1260 mm 3300.14.02: 1020 – 2260 mm B 125 3300.15.00: 840 mm 3300.15.01: 1190 – 1400 mm 3300.15.02: 1190 – 2400 mm D 400 3300.16.00: 1170 – 2400 mm 3300.17.00: 1170 – 2400 mm	slope jump: 160 mm	3300.13.51	11
	Body sampling shaft 800 DN 150	Suitable for extension systems for separators Inlet/gully: DN 150/150 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 860 mm 3300.14.01: 1200 – 1440 mm 3300.14.02: 1200 – 2400 mm B 125 3300.15.00: 1000 mm 3300.15.01: 1360 – 1600 mm 3300.15.02: 1360 – 2600 mm D 400 3300.16.00: 1350 – 2590 mm 3300.17.00: 1350 – 2590 mm	slope jump: 33 mm	3300.13.52	11
	Body sampling shaft 800 DN 150	Suitable for extension systems for separators Inlet/gully: DN 150/150 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 730 mm 3300.14.01: 1070 – 1300 mm 3300.14.02: 1070 – 2300 mm B 125 3300.15.00: 890 mm 3300.15.01: 1240 – 1480 mm 3300.15.02: 1240 – 2480 mm D 400 3300.16.00: 1220 – 2460 mm 3300.17.00: 1220 – 2460 mm	slope jump: 160 mm	3300.13.53	11

		Description		Version	Item number
		Body sampling shaft 800 DN 100	Suitable for extension systems for separators Inlet/gully: DN 100/100 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 800 mm 3300.14.01: 1150 – 1380 mm 3300.14.02: 1150 – 2380 mm B 125 3300.15.00: 970 mm 3300.15.01: 1300 – 1550 mm 3300.15.02: 1300 – 2550 mm D 400 3300.16.00: 1300 – 2540 mm 3300.17.00: 1300 – 2540 mm	slope jump: 33 mm	3300.13.50
		Body sampling shaft 800 DN 100	Suitable for extension systems for separators Inlet/gully: DN 100/100 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 680 mm 3300.14.01: 1020 – 1260 mm 3300.14.02: 1020 – 2260 mm B 125 3300.15.00: 840 mm 3300.15.01: 1190 – 1400 mm 3300.15.02: 1190 – 2400 mm D 400 3300.16.00: 1170 – 2400 mm 3300.17.00: 1170 – 2400 mm	slope jump: 160 mm	3300.13.51
		Body sampling shaft 800 DN 150	Suitable for extension systems for separators Inlet/gully: DN 150/150 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 860 mm 3300.14.01: 1200 – 1440 mm 3300.14.02: 1200 – 2400 mm B 125 3300.15.00: 1000 mm 3300.15.01: 1360 – 1600 mm 3300.15.02: 1360 – 2600 mm D 400 3300.16.00: 1350 – 2590 mm 3300.17.00: 1350 – 2590 mm	slope jump: 33 mm	3300.13.52
		Body sampling shaft 800 DN 150	Suitable for extension systems for separators Inlet/gully: DN 150/150 and DN 200/200 Inlet inverts in combination with extension system: A 15 3300.14.00: 730 mm 3300.14.01: 1070 – 1300 mm 3300.14.02: 1070 – 2300 mm B 125 3300.15.00: 890 mm 3300.15.01: 1240 – 1480 mm 3300.15.02: 1240 – 2480 mm D 400 3300.16.00: 1220 – 2460 mm 3300.17.00: 1220 – 2460 mm	slope jump: 160 mm	3300.13.53
