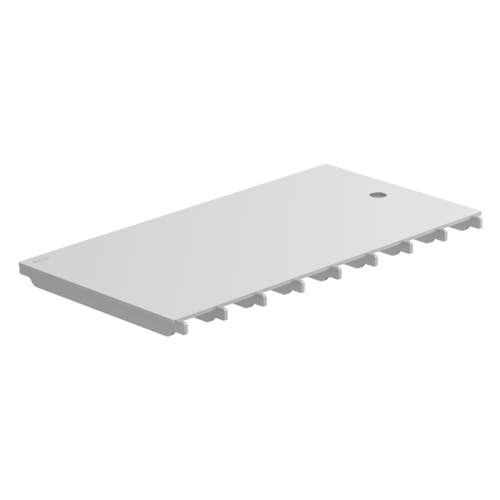

ACO hygienic slot cover

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Certified according to EN 1253-1
Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
Slip resistance R11 (DIN 51130)
Available for load classes R 50, M 125 or N 250
Available for all standard ACO box channel widths. See the cladding table for amount of gratings needed to fill specific channel

Grating dimensions			Class	Material	Item number
Size	Frame height (E)	Bar height (G)
[mm]	[mm]	[mm]
168 x 499	20	30	R 50	1.4301	445756
168 x 499	20	30	R 50	1.4404	445757
168 x 499	20	30	M 125	1.4301	445758
168 x 499	20	30	M 125	1.4404	445759
168 x 499	20	30	N 250	1.4301	445760
168 x 499	20	30	N 250	1.4404	445761
168 x 399	20	30	R 50	1.4301	445762
168 x 399	20	30	R 50	1.4404	445763
168 x 399	20	30	M 125	1.4301	445764
168 x 399	20	30	M 125	1.4404	445765
168 x 399	20	30	N 250	1.4301	445766
168 x 399	20	30	N 250	1.4404	445767
268 x 499	20	30	R 50	1.4301	445768
268 x 499	20	30	R 50	1.4404	445769
268 x 499	20	30	M 125	1.4301	445770
268 x 499	20	30	M 125	1.4404	445771
268 x 499	20	30	N 250	1.4301	445772
268 x 499	20	30	N 250	1.4404	445773
268 x 299	20	30	R 50	1.4301	445774
268 x 299	20	30	R 50	1.4404	445775
268 x 299	20	30	M 125	1.4301	445776
268 x 299	20	30	M 125	1.4404	445777
268 x 299	20	30	N 250	1.4301	445778
268 x 299	20	30	N 250	1.4404	445779

Grating dimensions			Class	Material	Item number
Size	Frame height (E)	Bar height (G)	Class	Material	Item number
168 x 499 mm	20 mm	30 mm	R 50	1.4301	445756
168 x 499 mm	20 mm	30 mm	R 50	1.4404	445757
168 x 499 mm	20 mm	30 mm	M 125	1.4301	445758
168 x 499 mm	20 mm	30 mm	M 125	1.4404	445759
168 x 499 mm	20 mm	30 mm	N 250	1.4301	445760
168 x 499 mm	20 mm	30 mm	N 250	1.4404	445761
168 x 399 mm	20 mm	30 mm	R 50	1.4301	445762
168 x 399 mm	20 mm	30 mm	R 50	1.4404	445763
168 x 399 mm	20 mm	30 mm	M 125	1.4301	445764
168 x 399 mm	20 mm	30 mm	M 125	1.4404	445765
168 x 399 mm	20 mm	30 mm	N 250	1.4301	445766
168 x 399 mm	20 mm	30 mm	N 250	1.4404	445767
268 x 499 mm	20 mm	30 mm	R 50	1.4301	445768
268 x 499 mm	20 mm	30 mm	R 50	1.4404	445769
268 x 499 mm	20 mm	30 mm	M 125	1.4301	445770
268 x 499 mm	20 mm	30 mm	M 125	1.4404	445771
268 x 499 mm	20 mm	30 mm	N 250	1.4301	445772
268 x 499 mm	20 mm	30 mm	N 250	1.4404	445773
268 x 299 mm	20 mm	30 mm	R 50	1.4301	445774
268 x 299 mm	20 mm	30 mm	R 50	1.4404	445775
268 x 299 mm	20 mm	30 mm	M 125	1.4301	445776
268 x 299 mm	20 mm	30 mm	M 125	1.4404	445777
268 x 299 mm	20 mm	30 mm	N 250	1.4301	445778
268 x 299 mm	20 mm	30 mm	N 250	1.4404	445779
